Diagnosis & Overhaul: Components: Accumulators: Notes

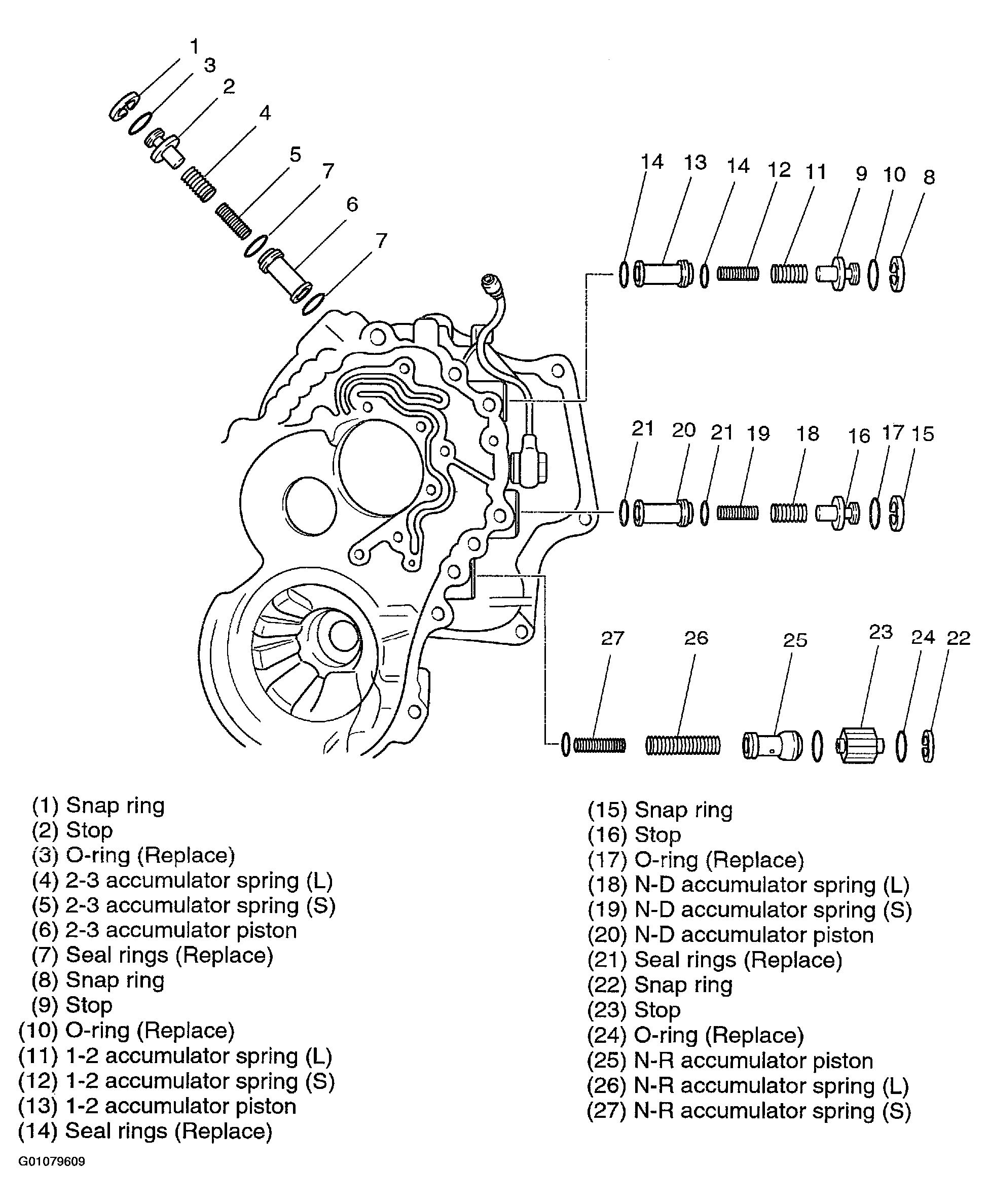

Fig 1: Illustrating Accumulators

G01079609

Courtesy of KIA MOTORS AMERICA, INC.

Remove accumulator pistons and springs from clutch housing by applying compressed air through oil passage as shown in figure.

Fig 2: Locating Accumulators Chart
Courtesy of KIA MOTORS AMERICA, INC.

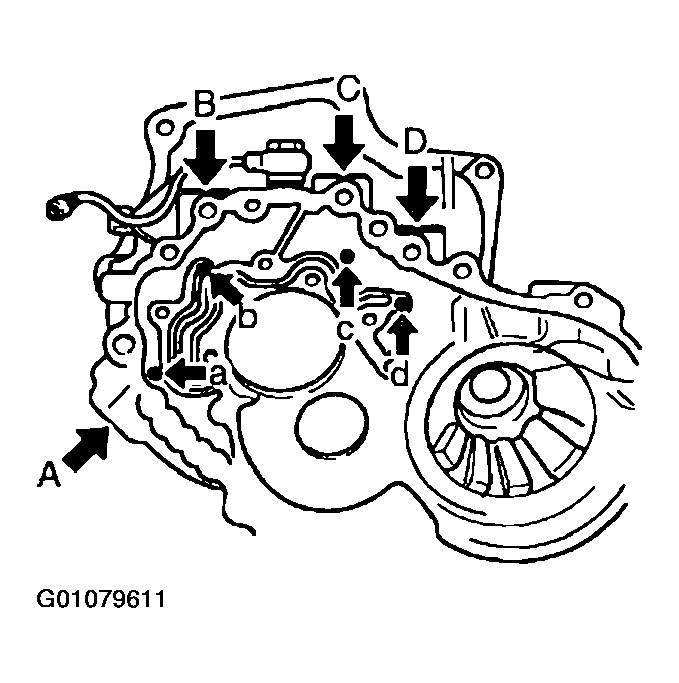

Fig 3: Illustrating Accumulator Locations
Courtesy of KIA MOTORS AMERICA, INC.
