ECM Location & ECM Connector Identification

Engine Control Module (ECM) is located below center of instrument panel, under carpet on passenger's side. See Fig 1 and Fig 2 .

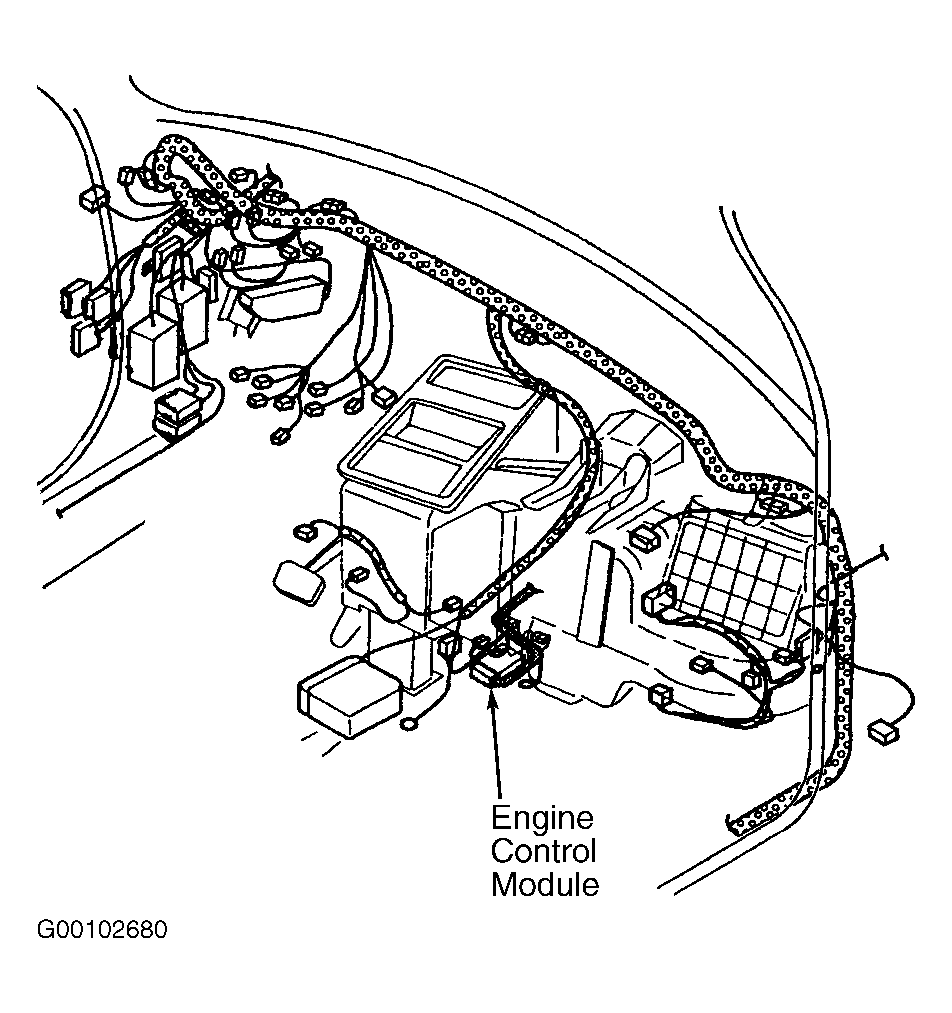

Fig 1: Locating Engine Control Module

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Engine Control Module (ECM) Connector & Terminals

Courtesy of KIA MOTORS AMERICA, INC.
