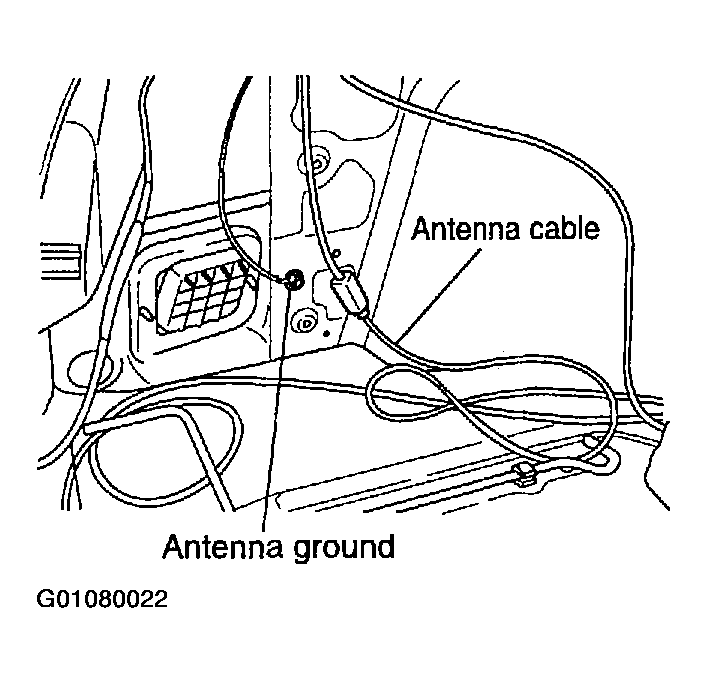

Antenna Mount: Removal
- Remove antenna mast by unscrewing antenna mast from mount.
- Remove bezel nut from antenna.
- Disconnect antenna cable from antenna.
Courtesy of KIA MOTORS AMERICA, INC.
- Remove one nut from antenna mount support.
- Remove antenna mount from bottom.
