Radiator Fan Motor: Removal

  1. Disconnect negative battery cable.

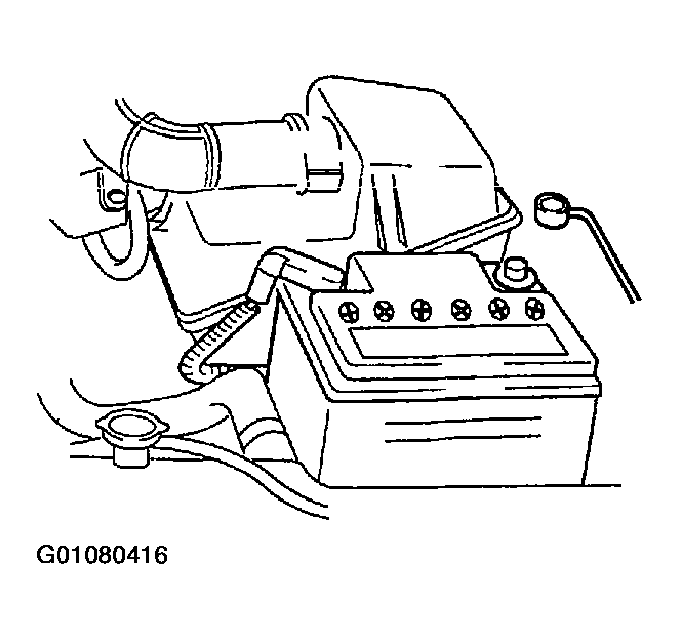

    Fig 1: Disconnecting Negative Battery Cable
    G01080416Courtesy of KIA MOTORS AMERICA, INC.
  2. Drain engine coolant.

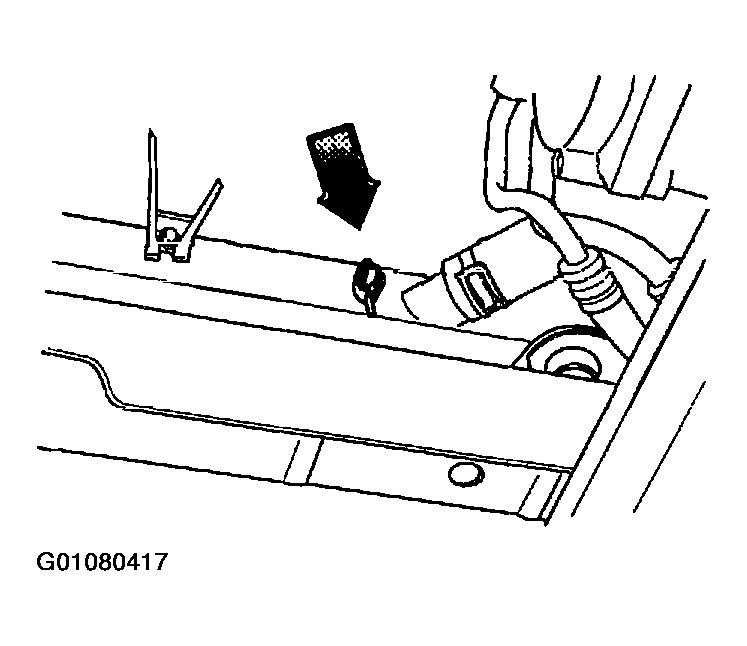

    Fig 2: Draining Engine Coolant
    G01080417Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove fresh air duct.

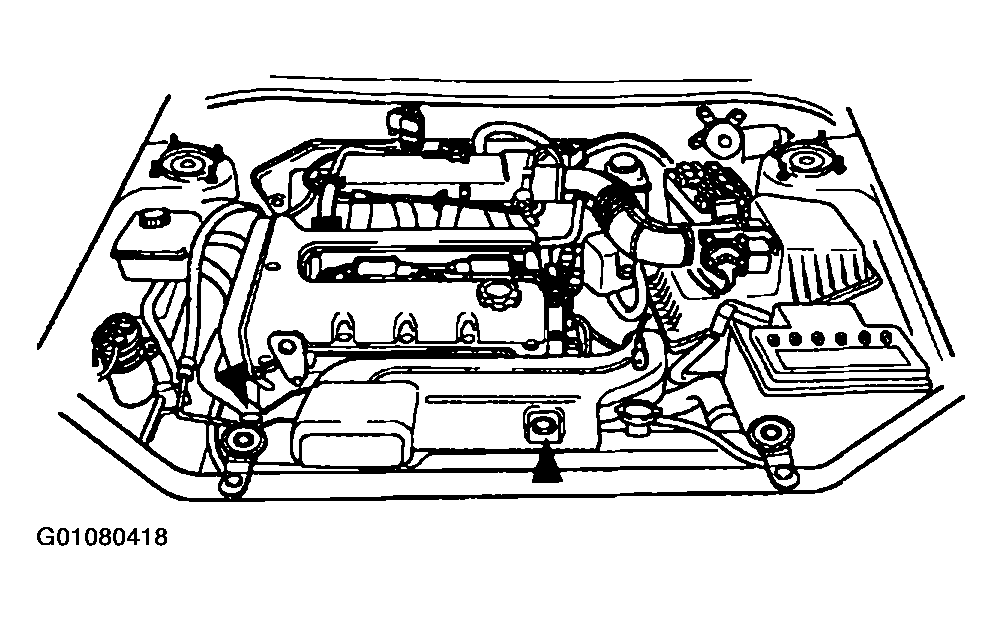

    Fig 3: Removing Fresh Air Duct
    G01080418Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect cooling fan motor connector.
  5. Remove upper radiator hose.

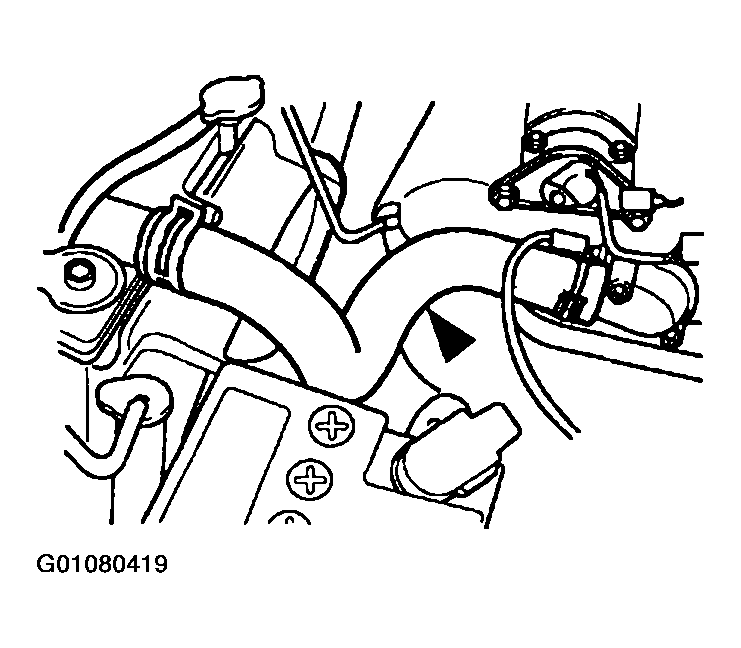

    Fig 4: Removing Upper Radiator Hose
    G01080419Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove upper two radiator cowling bolts.
  7. Remove lower two radiator cowling bolts.

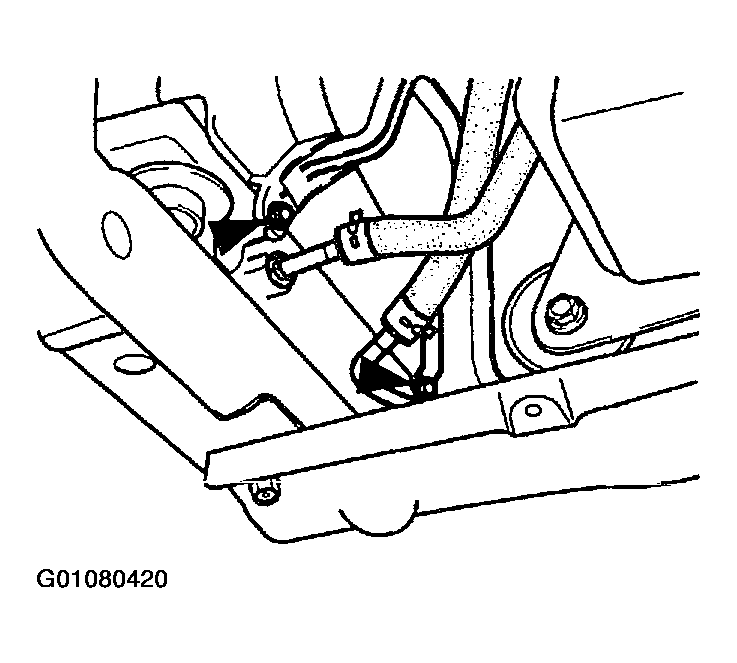

    Fig 5: Removing Lower Radiator Cowling Bolts
    G01080420Courtesy of KIA MOTORS AMERICA, INC.
  8. Lift radiator cowling from engine compartment.
  9. Remove clip and fan.

    Remove three fan motor bolts and nuts.
