Fuel Delivery Module: Notes

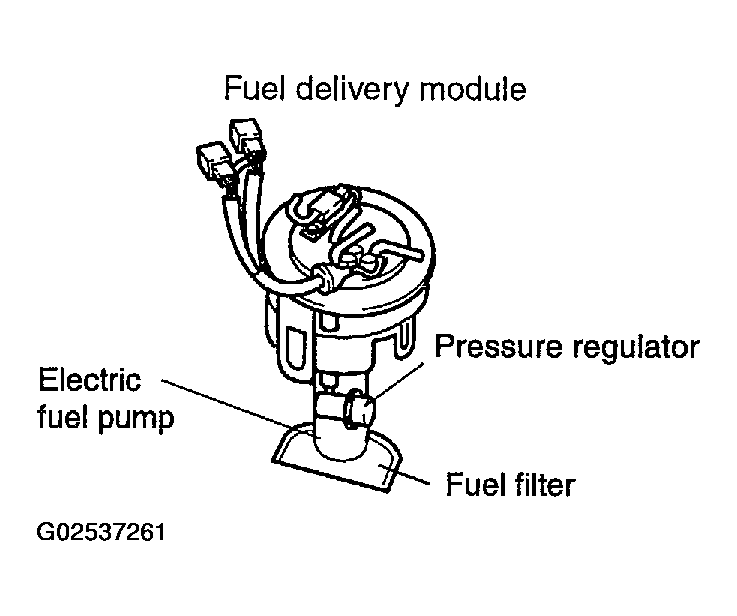

The fuel delivery module is installed in the fuel tank.
The fuel delivery module consists of the following:
- Electric fuel pump
- Pressure regulator
- Fuel filter
- Fuel sender unit
- Fuel supply line connection
Courtesy of KIA MOTORS AMERICA, INC.
