Troubleshooting Procedure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Troubleshooting Procedure

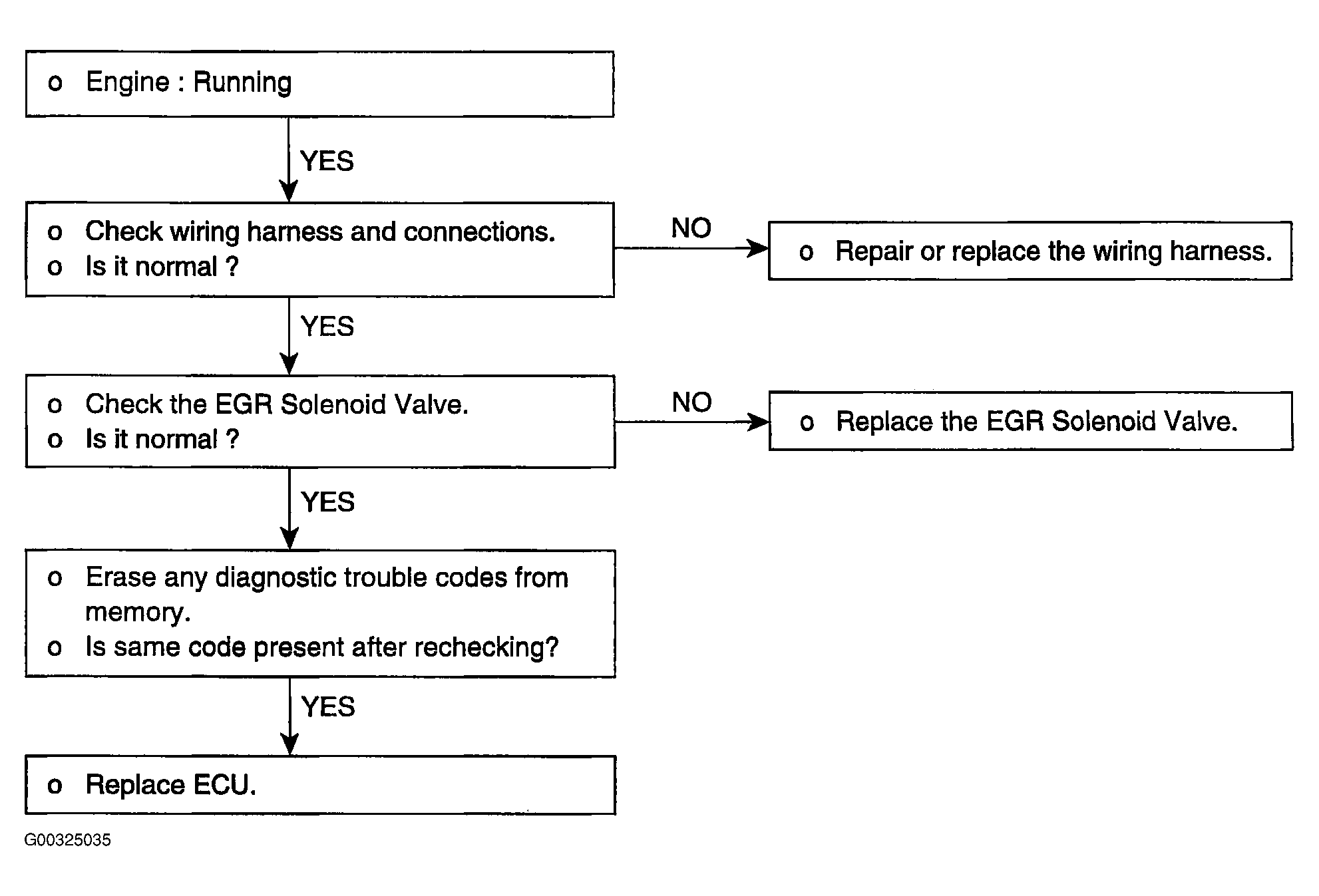

Fig 1: Illustrating Trouble Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
