General Information: Specification

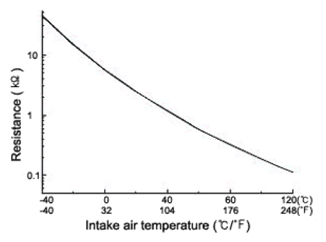

Fig 1: Intake Air Temperature And Resistance Graph
G07331538
RESISTANCE REFERENCE CHART

Temp. (°C) Temp. (°F) Resistance (kΩ)
-20 -4 13.24~16.83
20 68 2.27~2.64
80 176 0.207~0.429
