General Information: Specification

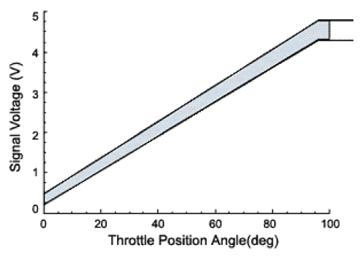

Fig 1: Throttle Position Angle And Signal Voltage Graph
G07331603
TPS SPECIFICATIONS

TPS Fully Closed Fully Open
Signal Voltage (V) 0.3~0.8V 4.3~4.7V
Resistance (kΩ) Terminal 1 and 3 0.71~1.38 kΩ at all temperature 2.7 kΩ at all temperature
Terminal 1 and 2 1.6~2.4 kΩ at all throttle position
