Signal Waveform

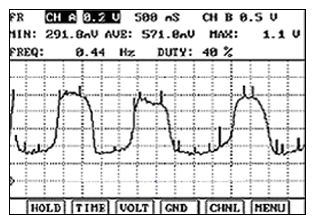

Fig 1: Display HO2S Waveform (Normal Warm Up Idle Status)
G07331650

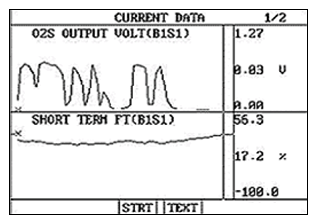

Fig 2: Display HO2S Waveform (A/F Lean Status)
G07331651

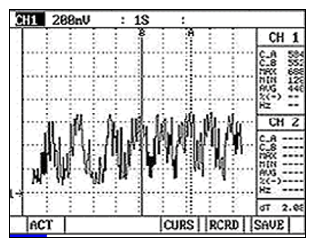

Fig 3: Display HO2S Waveform At Ignition Failure
G07331652

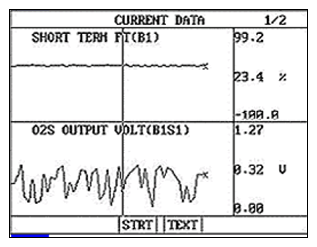

Fig 4: Display HO2S Waveform (Ignition System Malfunction)
G07331653
