Wiring Color Codes

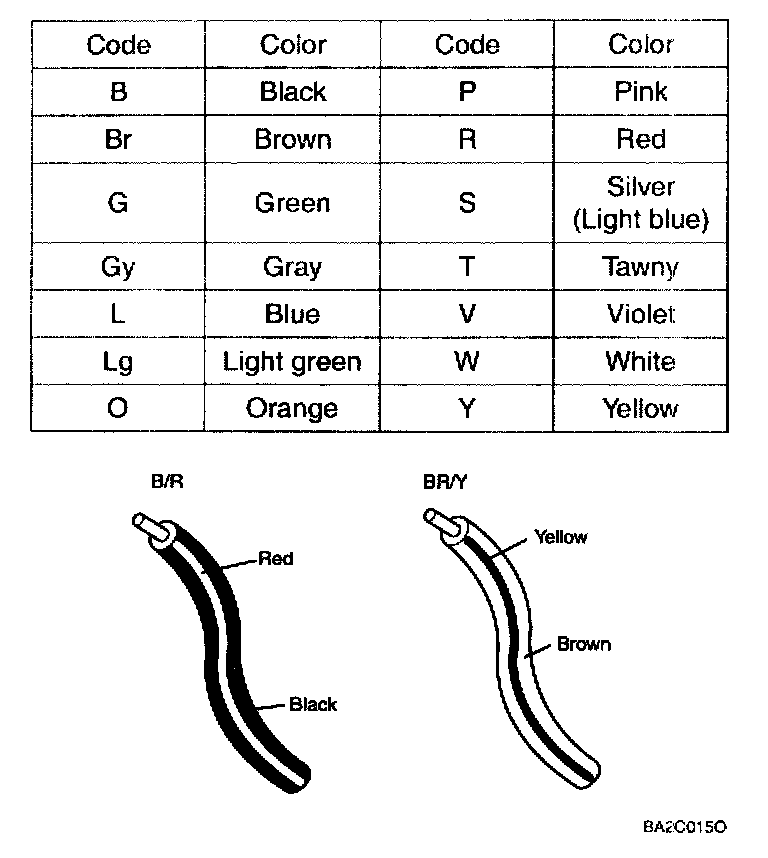

WIRING COLOR CODES
Two-color wires are indicated by a two-color code symbol. The first color indicates the base color of the wire, the second color indicates the color of the stripe
