Monitor Scantool Data

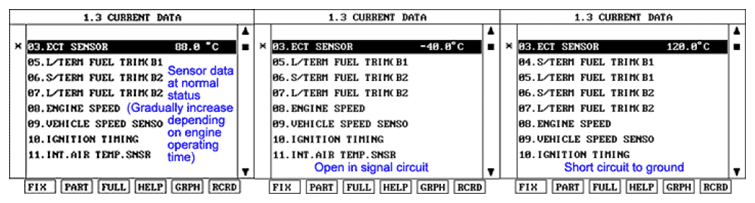

- Start engine to normal operating temperature and monitor the "ECT SENSOR" parameter on scantool.
- After the engine has started, Check that ECT rises steadily to about 90°C (194°F) and ECT stabilizes when the thermostat opens.
- Specification: ECT rises steadily to about 90°C (194°F) and ECT stabilizes when the thermostat opens.TEMPERATURE RESISTANCE REFERENCE CHART
Temperature °C (°F) -30 20 0 20 40 60 80 100 110 Resistance (kΩ) 26.74 15.48 5.79 2.45 1.148 0.587 0.322 0.188 0.147 Voltage (V) 4.39 4.17 3.48 2.56 1.68 1.04 0.63 0.39 0.31 (Pull up resistance is Approx. 2.2kΩ and above specification's error range is 2~3%.)
- Specification: ECT rises steadily to about 90°C (194°F) and ECT stabilizes when the thermostat opens.
- Is ECT sensor's signal near the specified value?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector.
- Fault was repaired and ECM memory was not cleared.
- If the problem works out, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "Inspection & Repair" procedure.
CAUTION: Scantool Function Information:- Service Data: Scantool provides one parameters for IAT sensor.
DATA DESCRIPTION REFERENCE CHARTData Description Unit. ECT SENSOR °C (°F)
