Installation Of Spark Plug Cable

Improper arrangement of spark plug cables will induce flashover between the cables, causing misfiring and surging at acceleration in high-speed operations.

Therefore, be careful to arrange the spark plug cables properly as shown in the illustration.

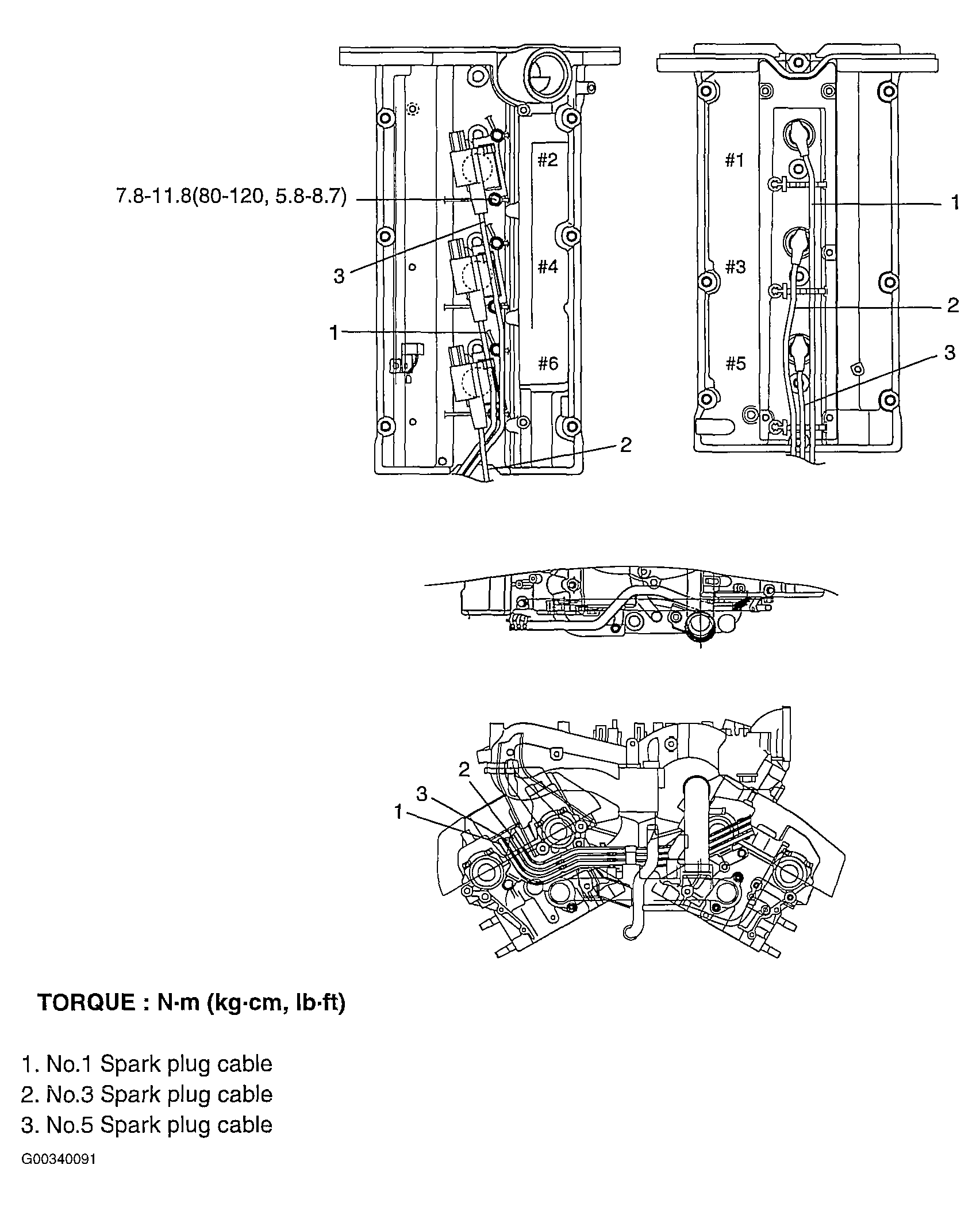

Fig 1: Identifying Spark Plug Cable Routing
G00340091Courtesy of KIA MOTORS AMERICA, INC.
