Fuel Pump (FP): Removal

  1. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .
  2. Disconnect the negative battery terminal from the battery.
  3. Remove seat mounting bolts.
    Fig 1: Identifying Rear Seat Mounting Bolts
    G00355900Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the rear seat .
  5. Remove service cover under center floor carpet.
    Fig 2: Identifying Service Cover Under Center Floor Carpet
    G00340607Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the fuel pump electrical connector, the EVAP. hose, the main and return hose.
    Fig 3: Identifying Fuel Pump Electrical Connector, EVAP. Hose, Main & Return Hoses
    G00340608Courtesy of KIA MOTORS AMERICA, INC.
  7. Unfasten the assembly fixing-bolt (6 EA).
  8. Disconnect the breather hose.

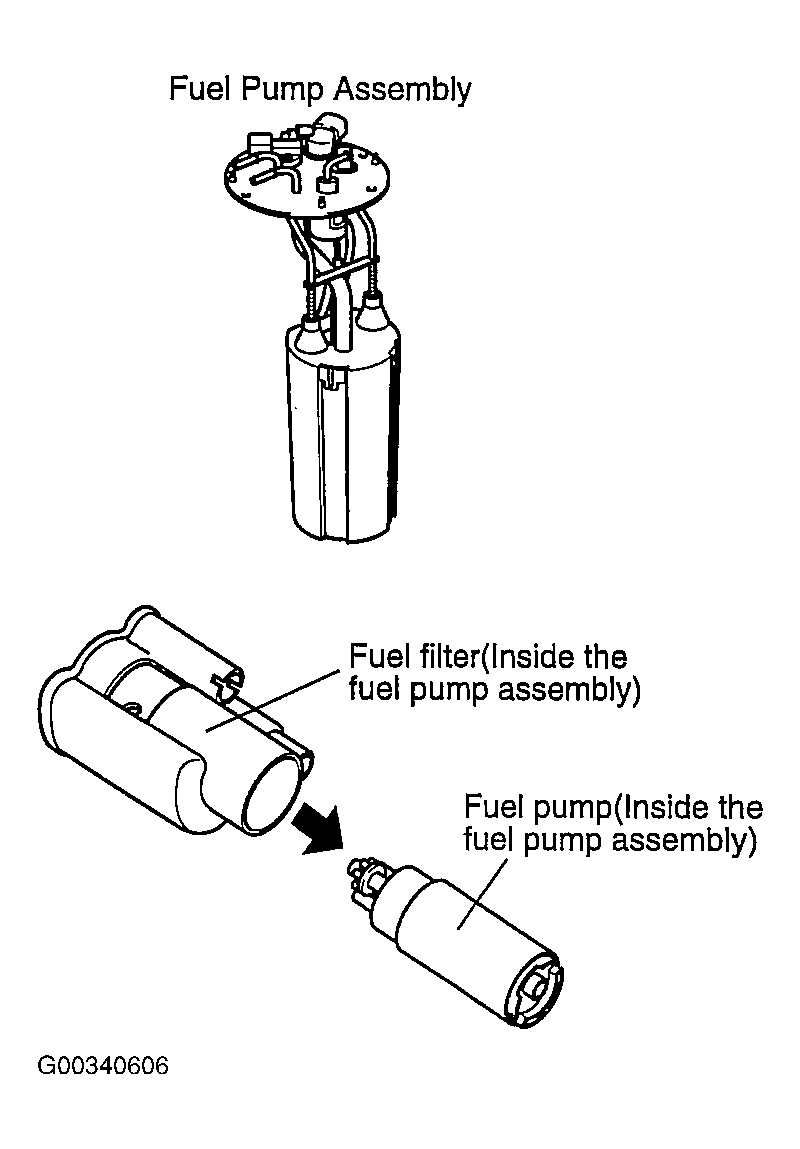

    Fig 4: Identifying Fuel Pump Assembly
    G00340606Courtesy of KIA MOTORS AMERICA, INC.
