Troubleshooting Guide Chart: Notes

NOTE: The numbers in illustration indicate the order each system or component should be checked.

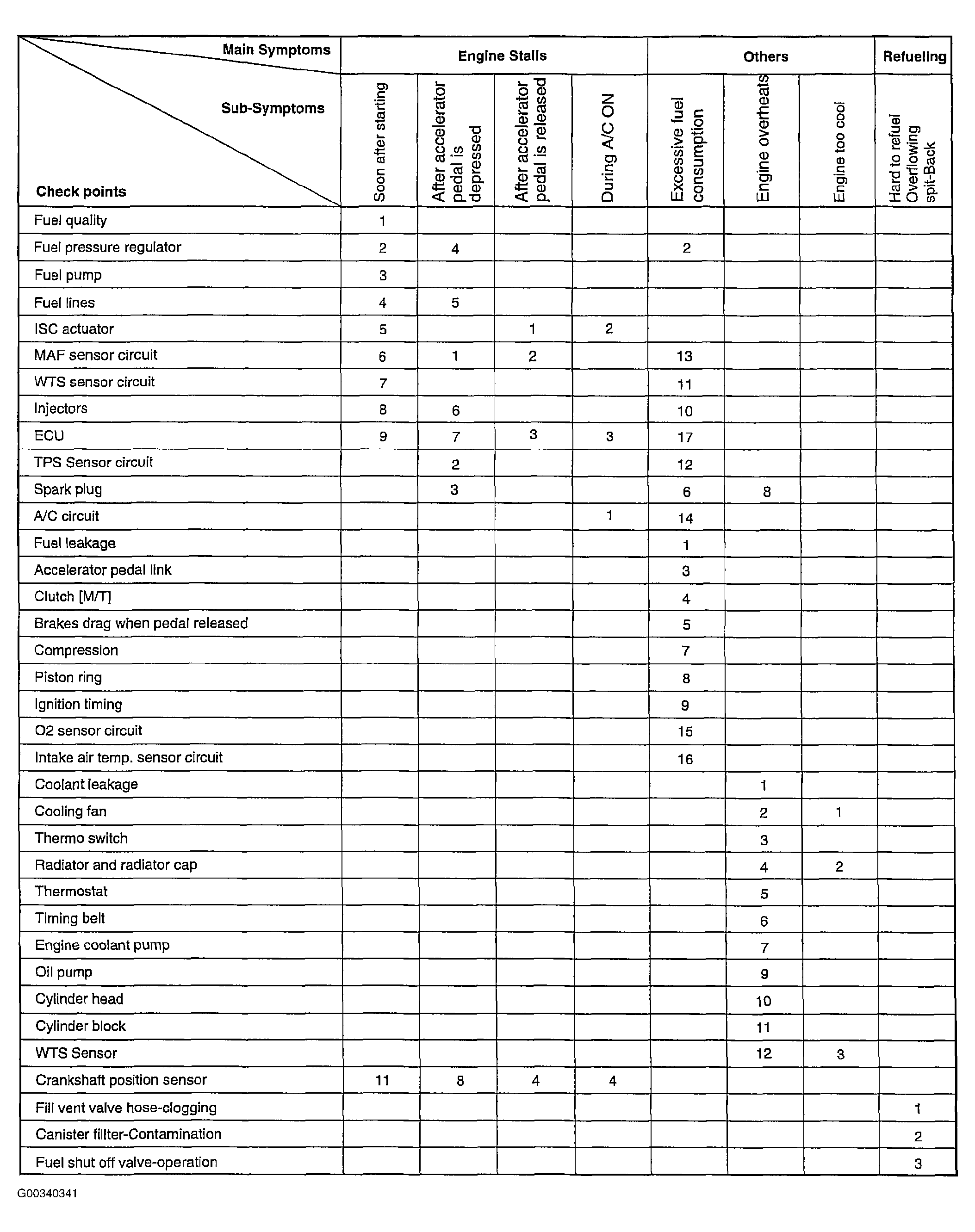

Fig 1: Troubleshooting Guide Priority Checklist (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The numbers in illustration indicate the order each system or component should be checked.

Fig 2: Troubleshooting Guide Priority Checklist (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
