Troubleshooting Procedures

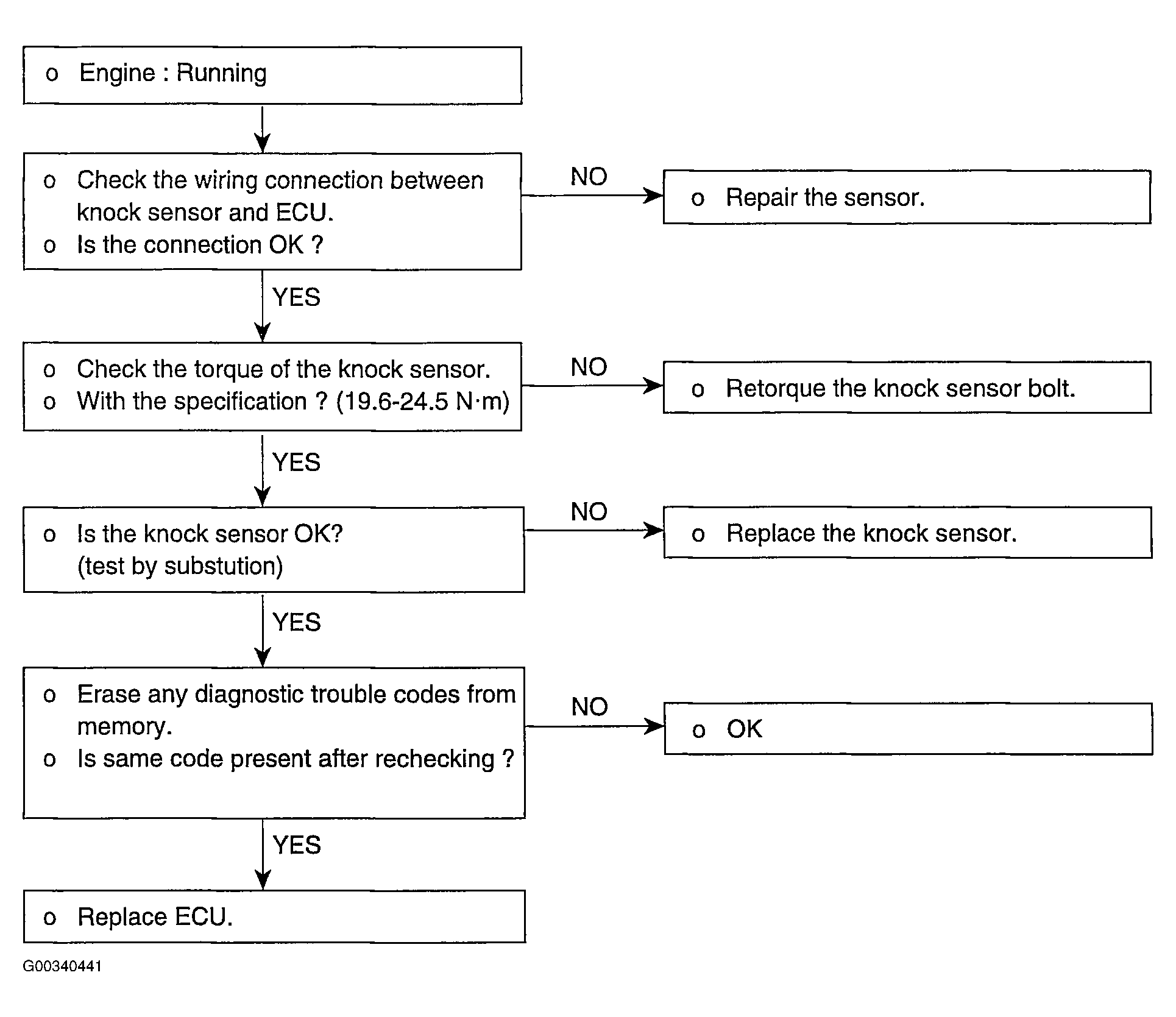

Fig 1: Identifying Knock Sensor Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
