ECU Input / Output Check Sheet

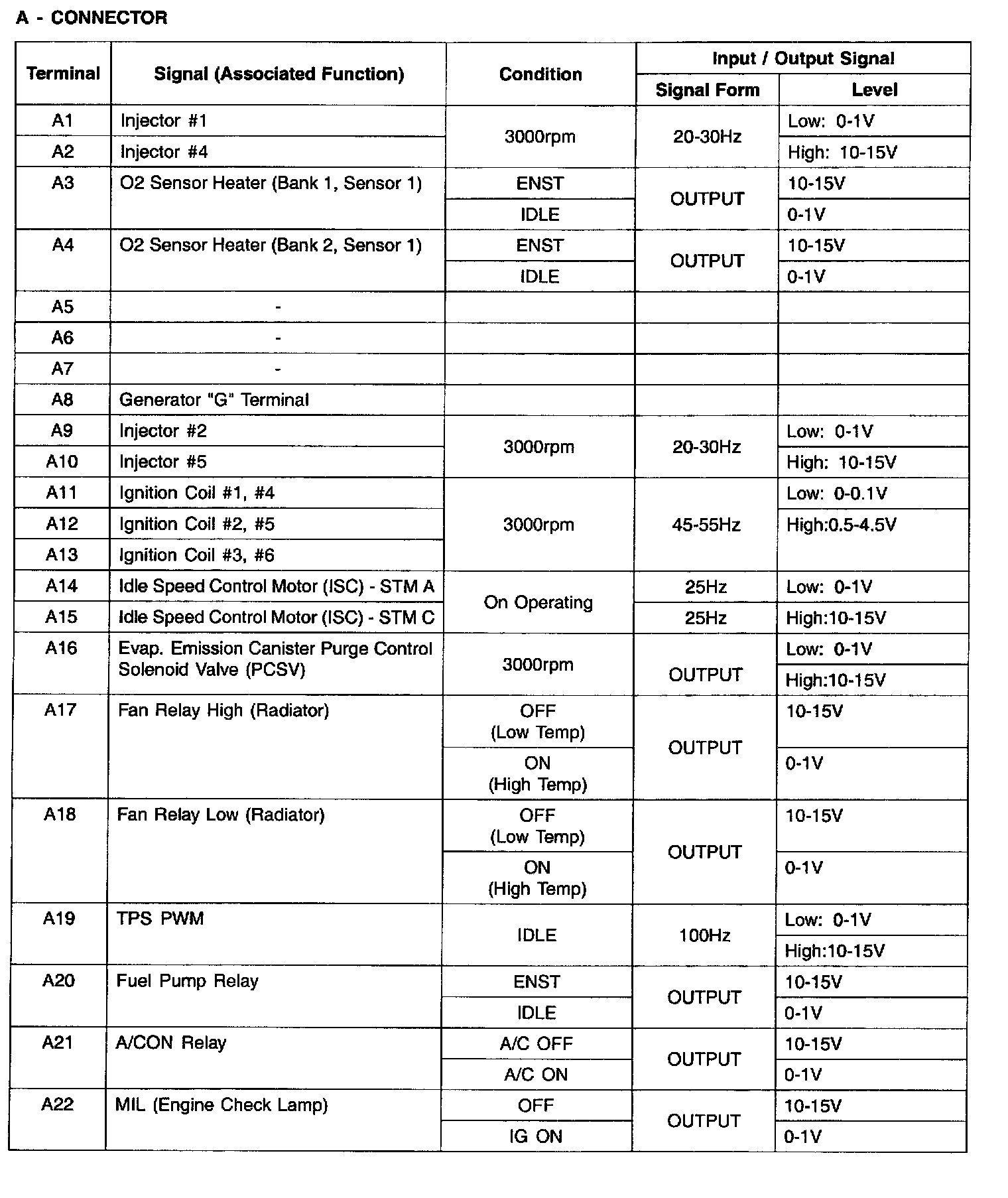

A - Connector (A1 - A22):

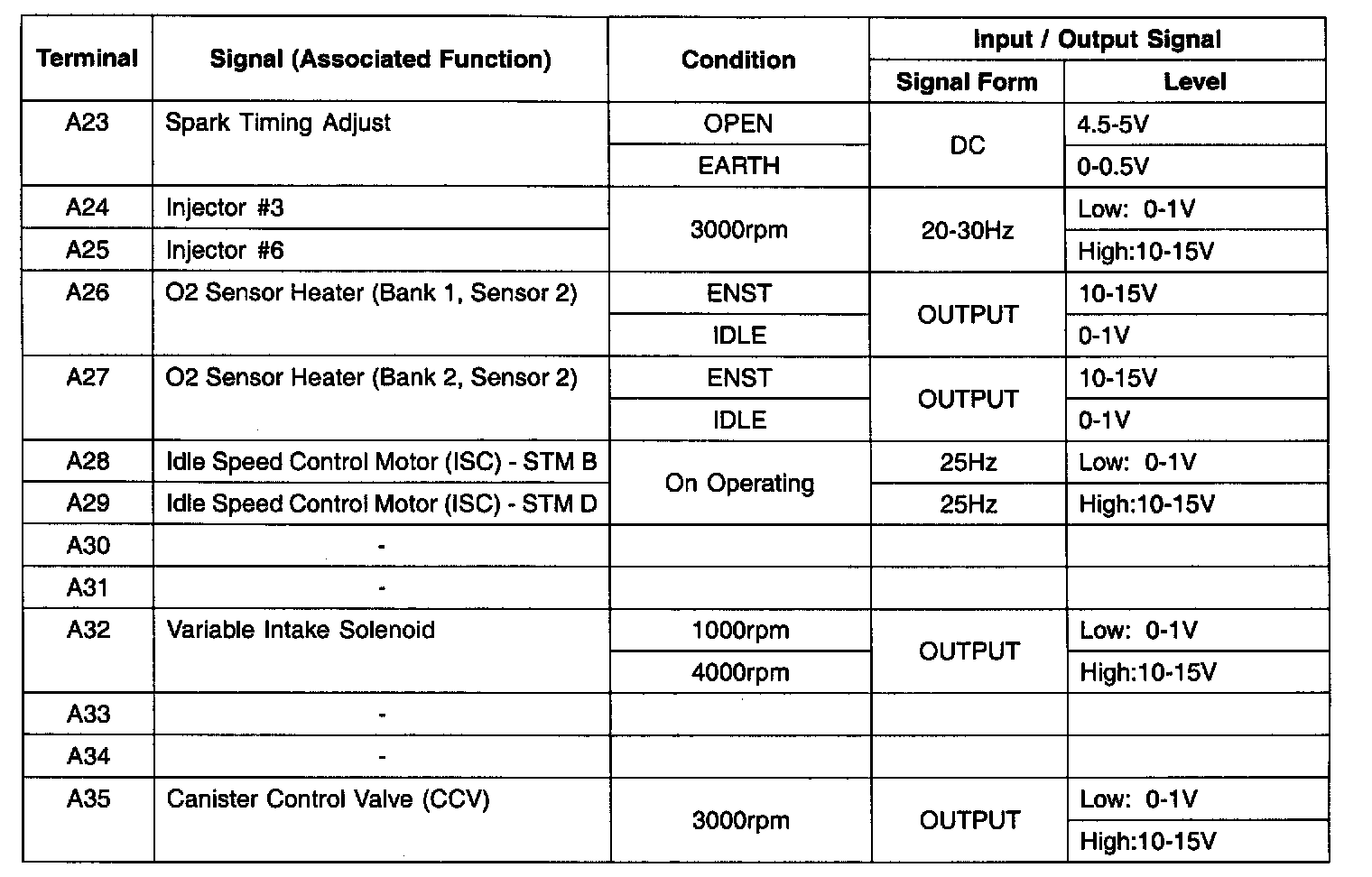

A - Connector (A23 - A35):

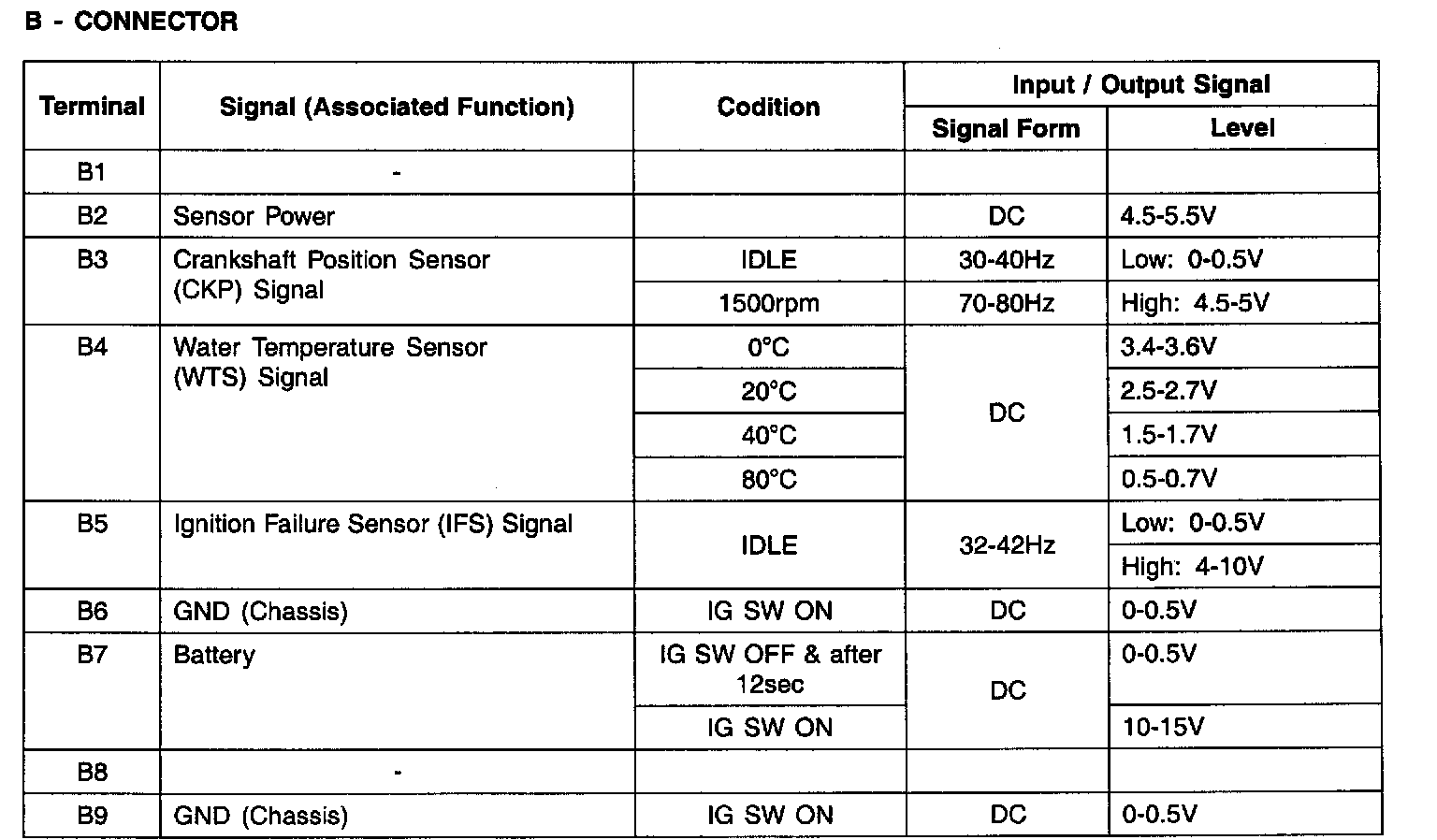

B - Connector (B1 - B9):

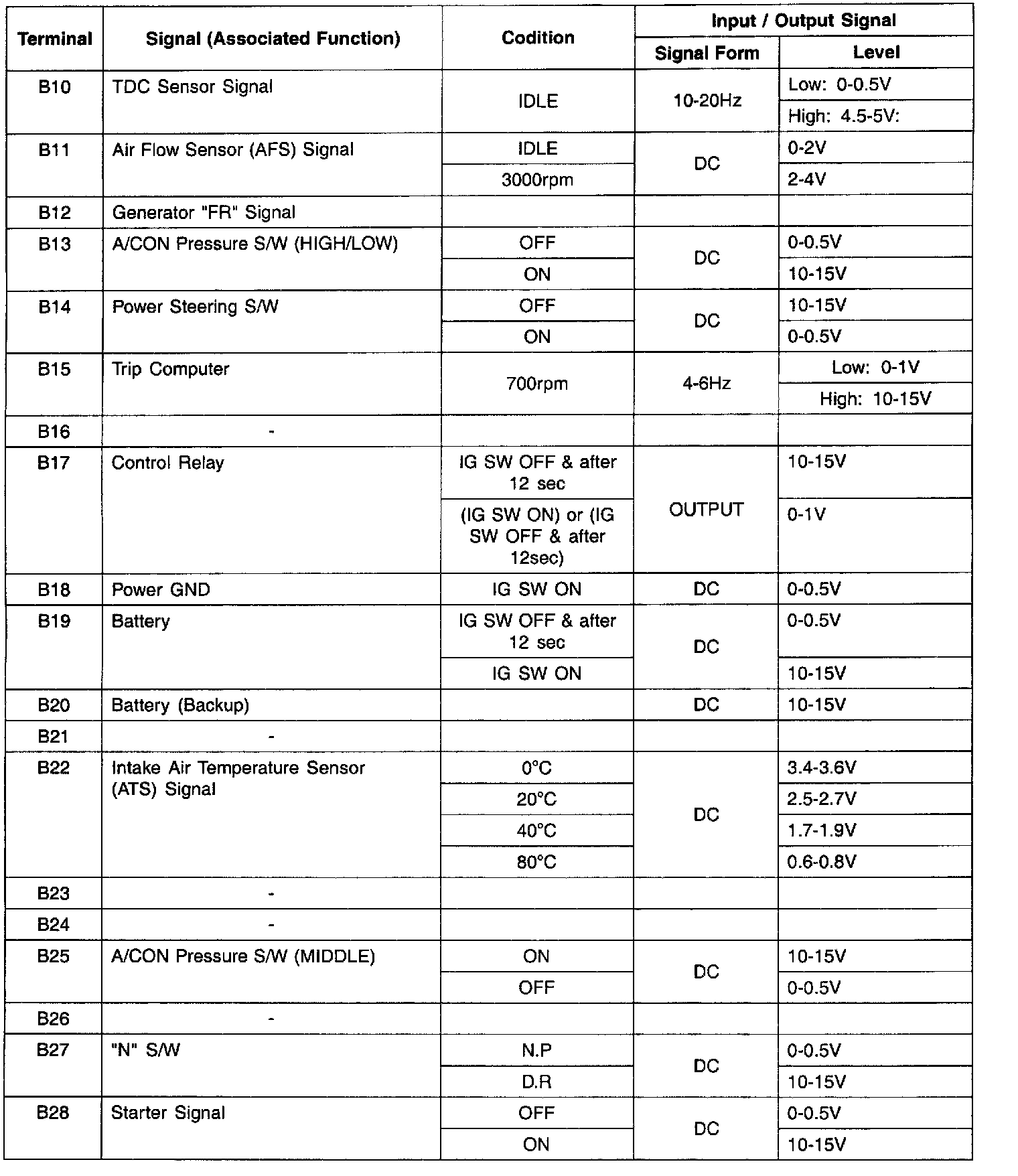

B - Connector (B10 - B28):

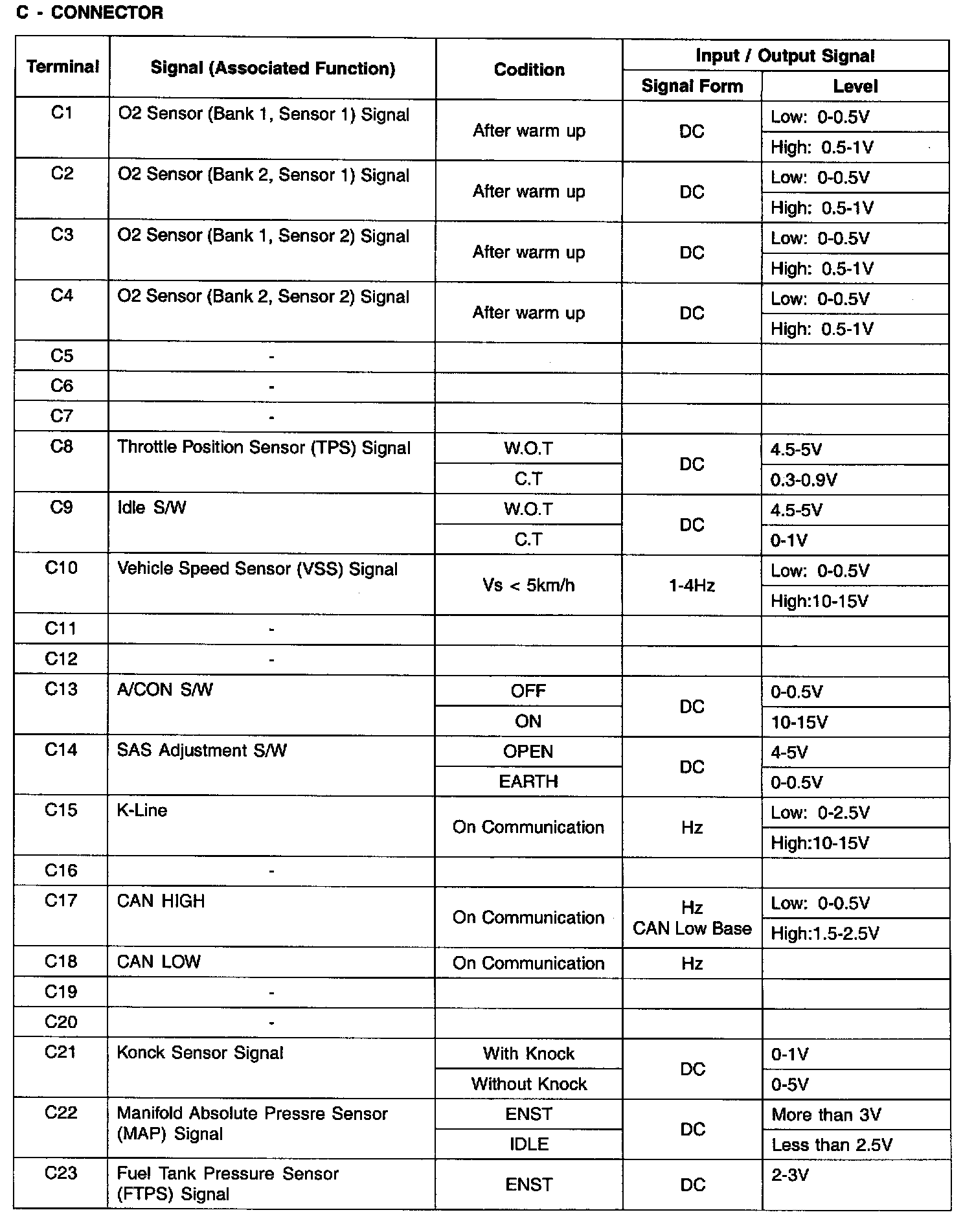

C - Connector (C1 - C23):

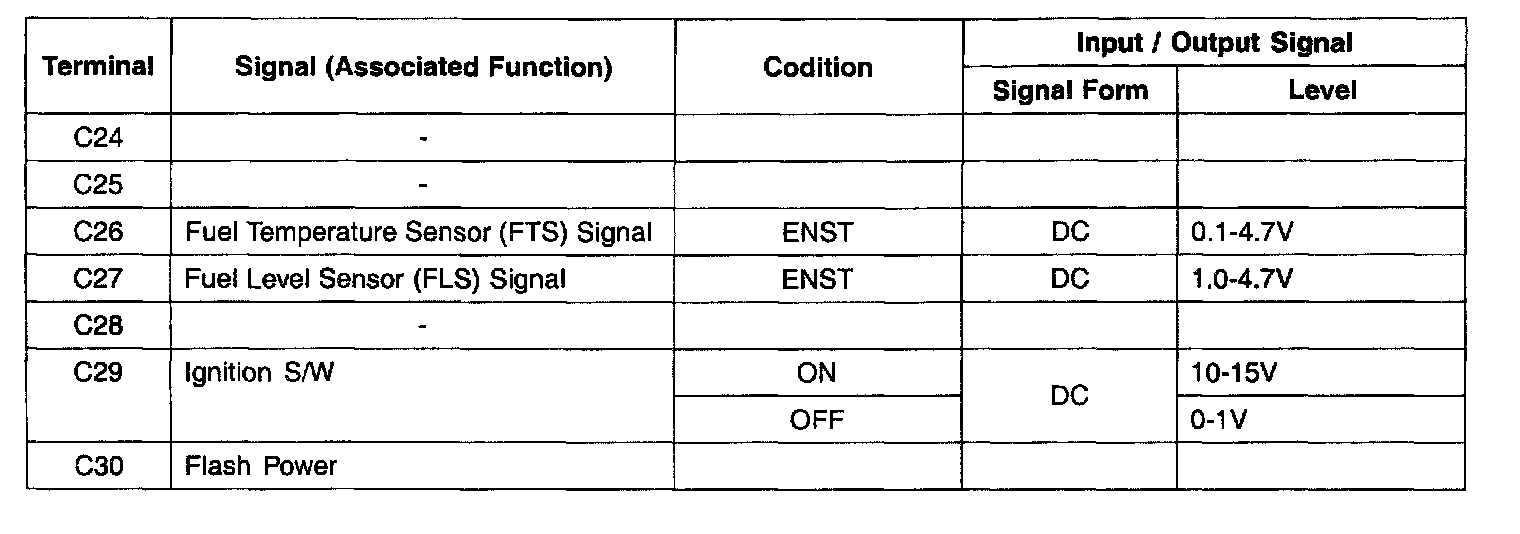

C - Connector (C24 - C30):
