System Specifications





SPECIFICATION

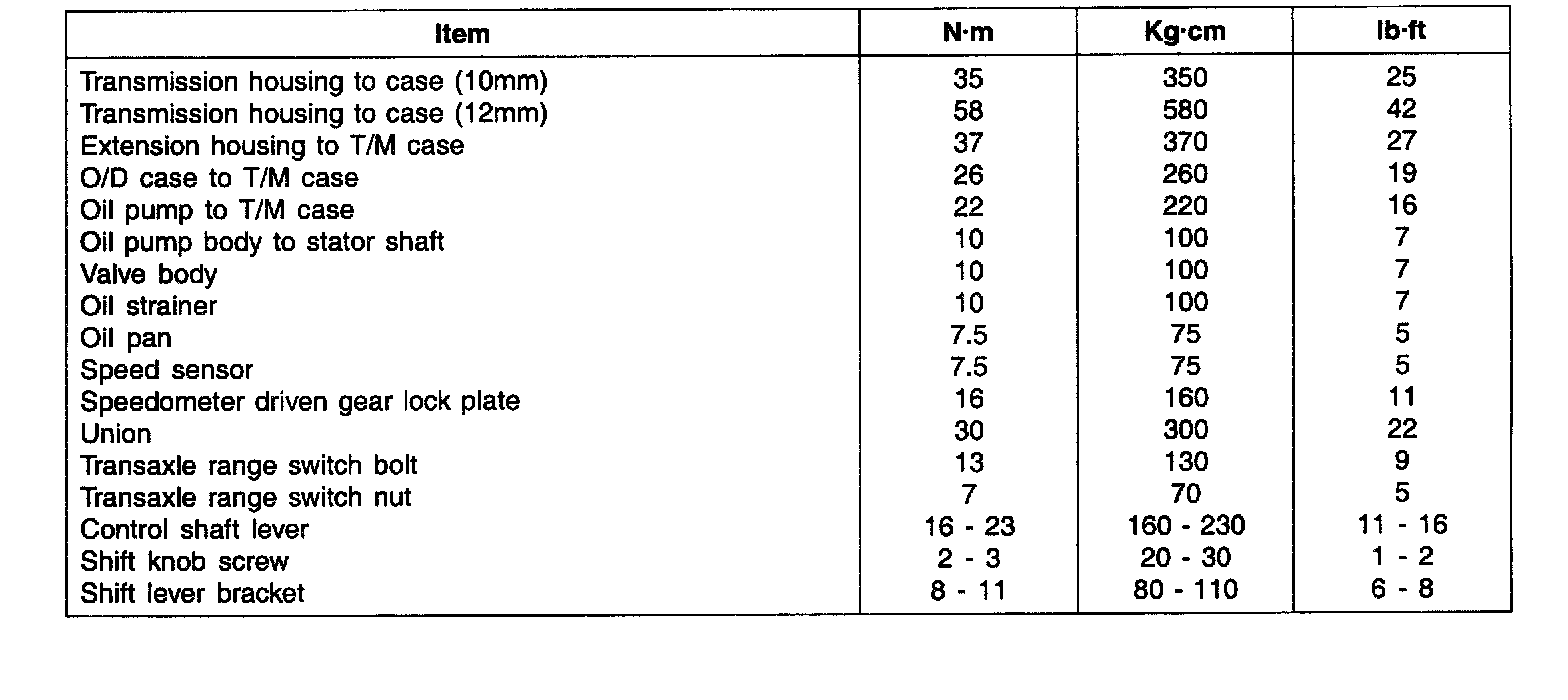

TIGHTENING TORQUE

Drive Plate Tightening Torque

Tightening Torque 73-77Nm (53 - 55ft lbs.)

Tighten in a criss-cross pattern.
