Activating RKE Trunk OPEN During An Alarm Sequence

  1. If the RKE Trunk OPEN is activated during an alarm sequence the trunk will open and the Anti-Theft system will DISARM. The horn, hazard lamps and start inhibitor will be off).

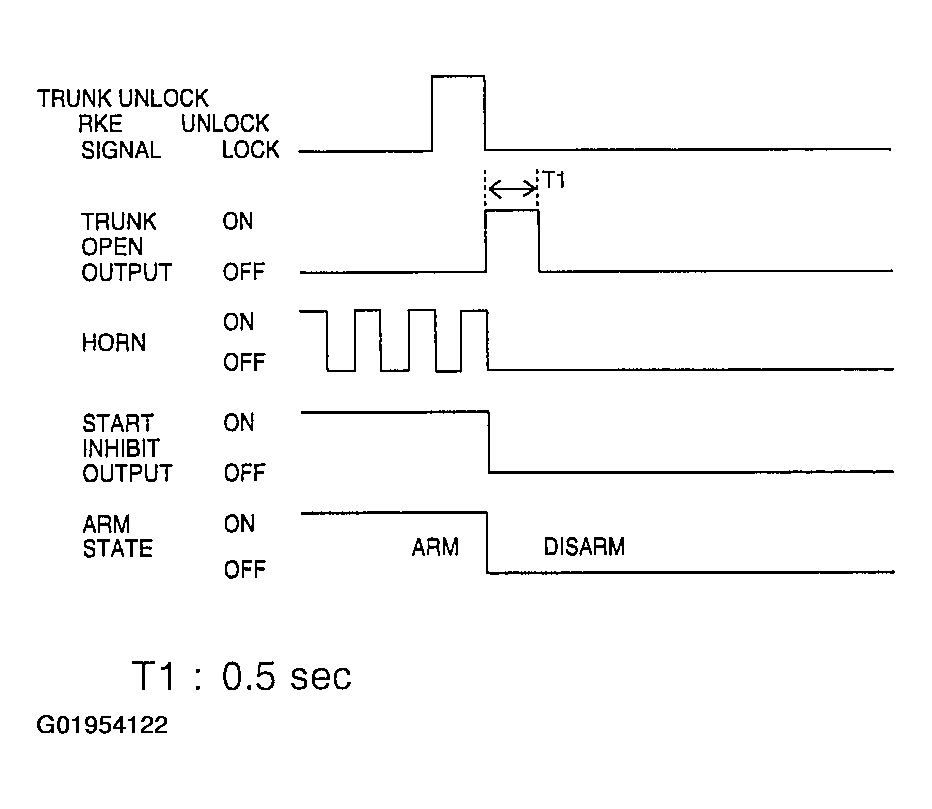

    Fig 1: Illustrating TRUNK OPEN Function Chart
    G01954122Courtesy of KIA MOTORS AMERICA, INC.
