DTC P1402: EVAP Emission Control Leak Detection Module Pump Circuit Malfunction

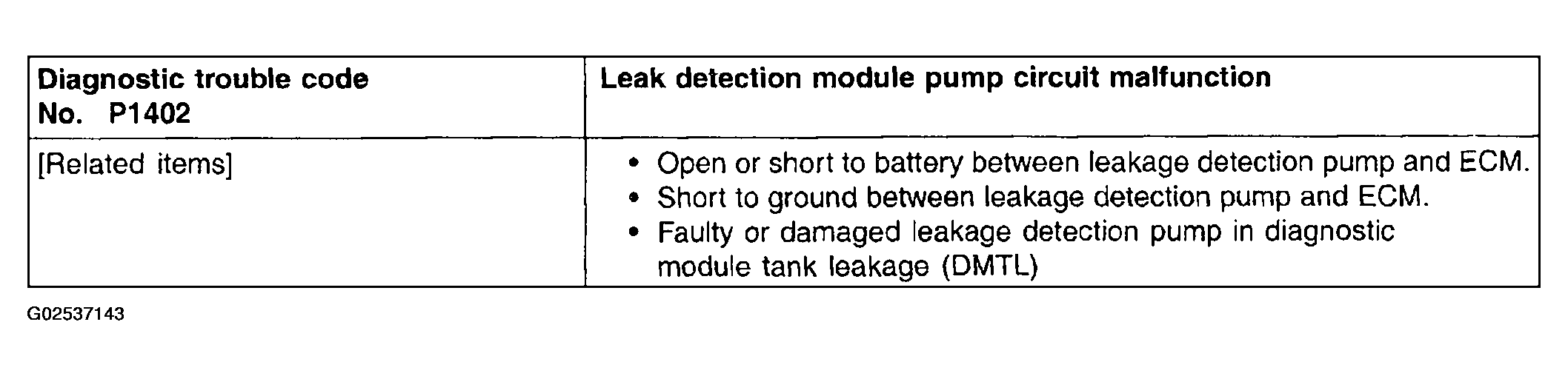

Fig 1: Problem Description
G02537143Courtesy of KIA MOTORS AMERICA, INC.

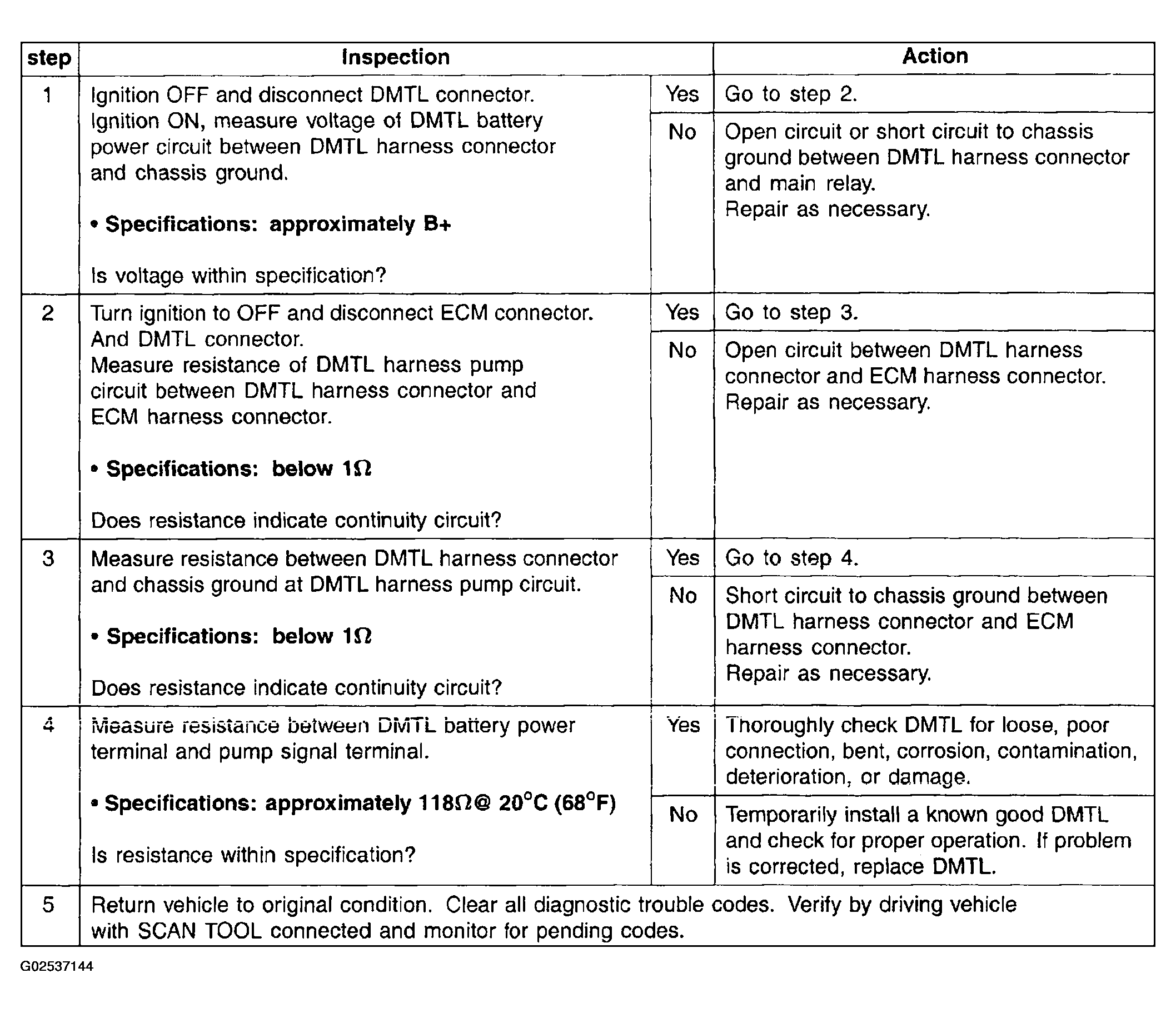

Fig 2: Inspection/Action Chart
G02537144Courtesy of KIA MOTORS AMERICA, INC.
