Repair and Diagnosis: Electrical: Horns: Components

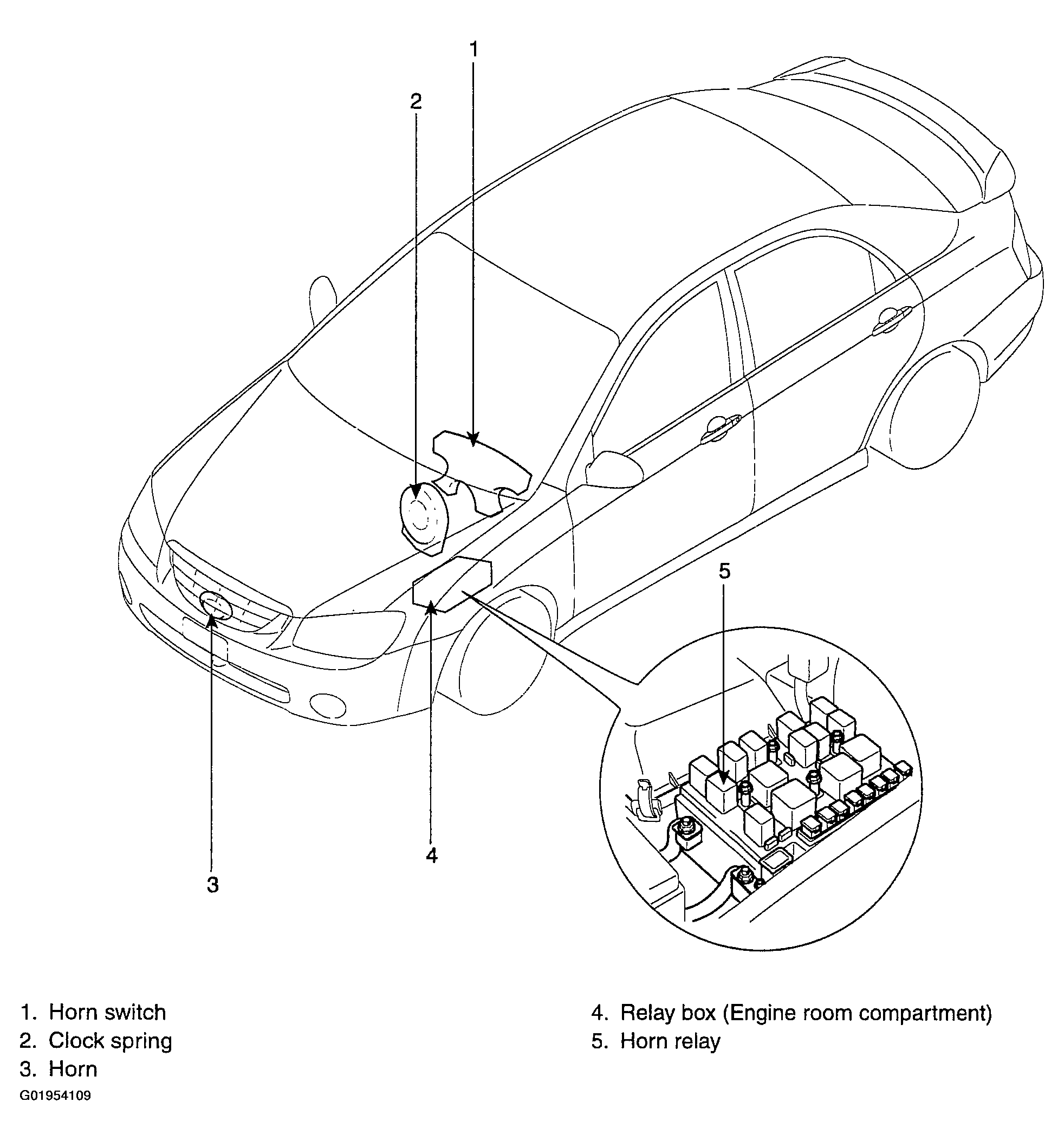

Fig 1: Illustrating Horn Components

G01954109

Courtesy of KIA MOTORS AMERICA, INC.
