CVVT Oil Control Valve (OCV)

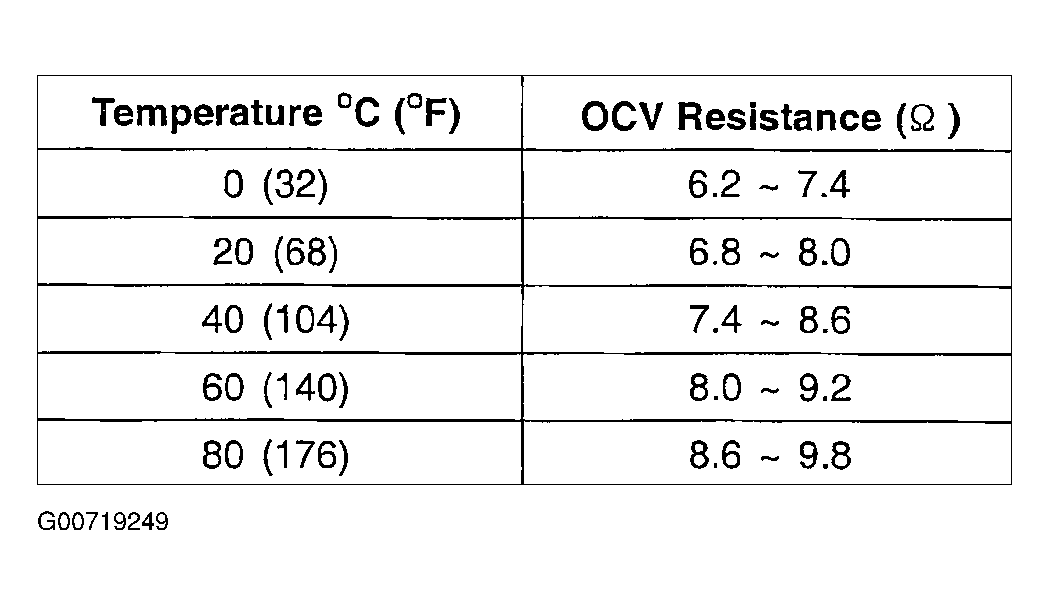

Fig 1: CVVT Oil Control Valve Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
