Power Window Main Switch

POWER WINDOW MAIN SWITCH

1. Remove the front door trim panel.

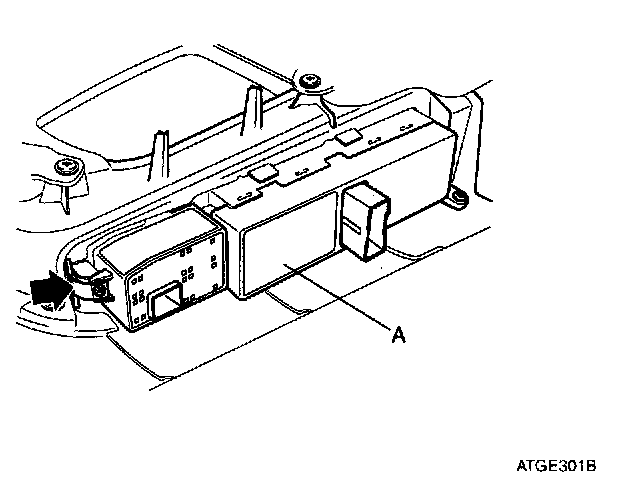

2. Remove the power window main switch (A) by pushing the mounting clip of the power window main switch.

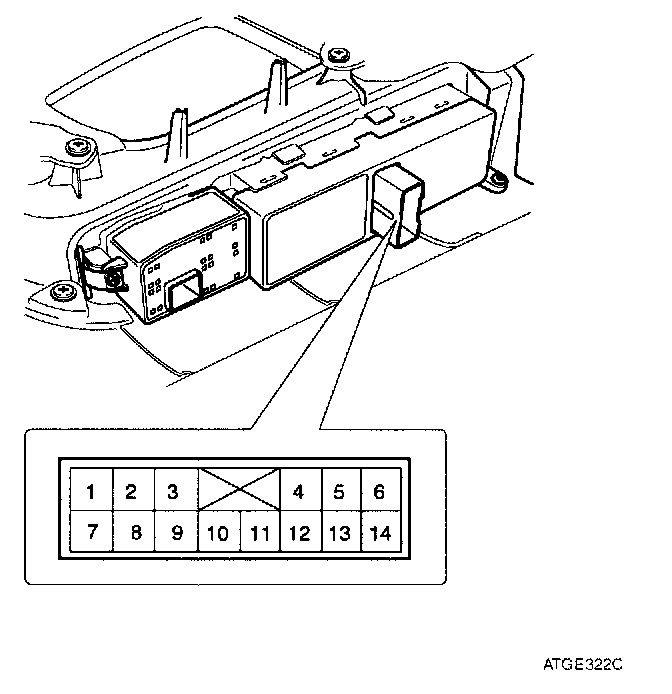

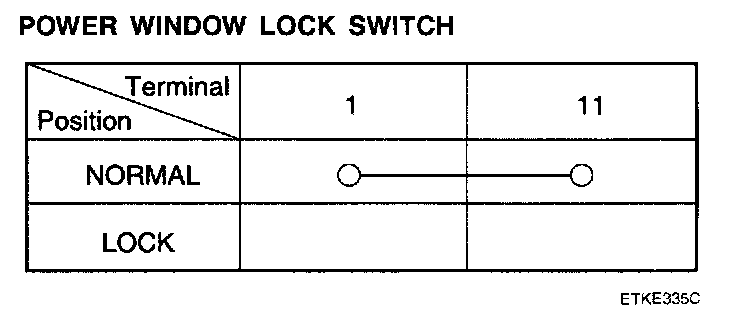

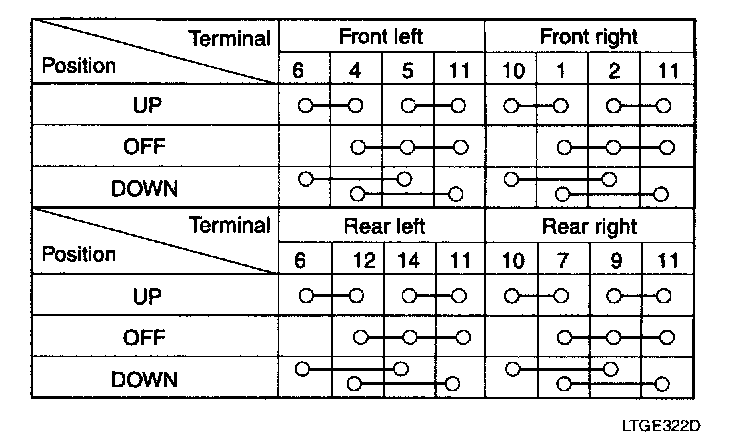

3. Check for continuity between the terminals. When the continuity does not agree, it exchanges the switch.
