Crankcase Emission Control (PCV) System: Components

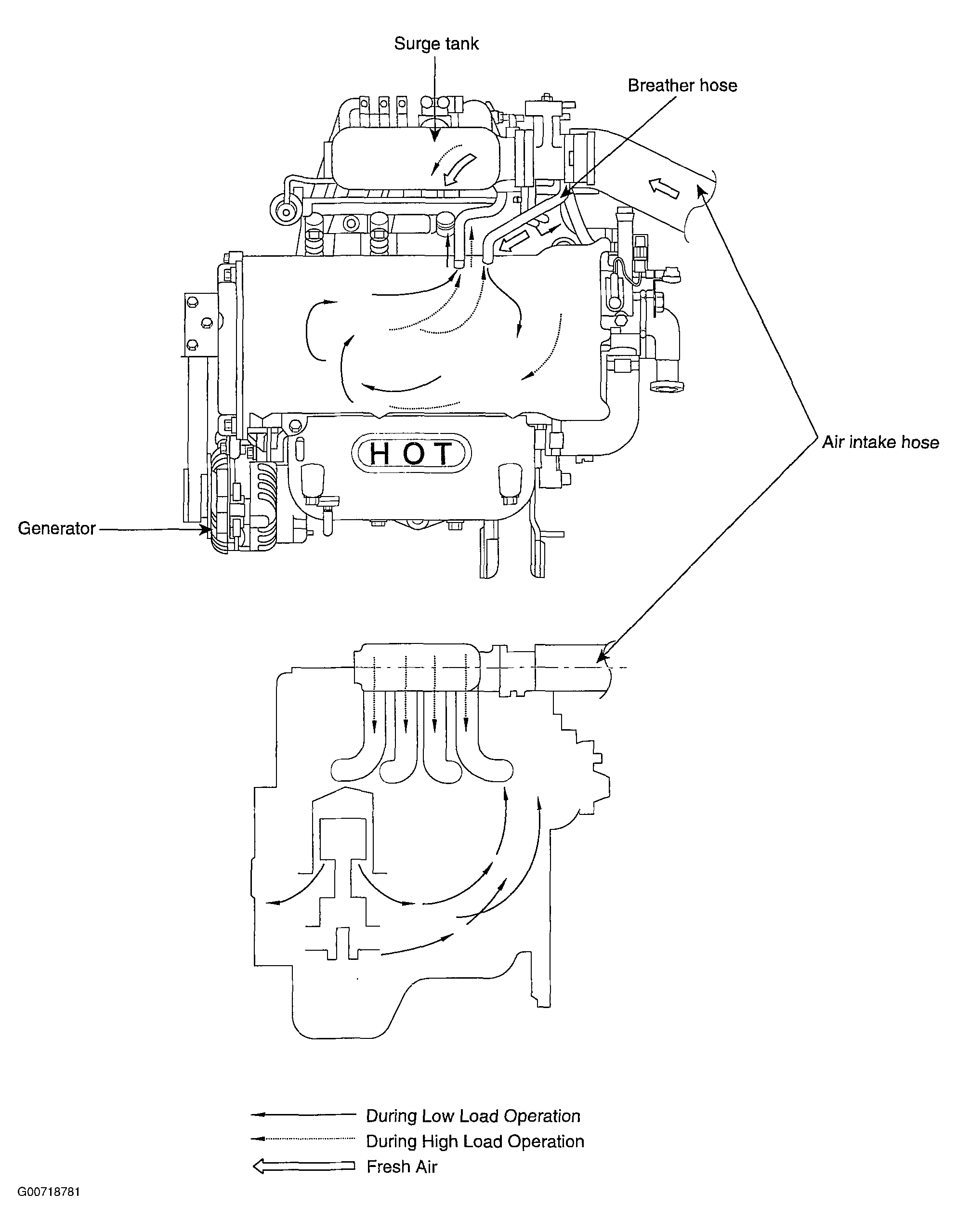

Fig 1: Crankcase Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
