Signal Waveform & Data

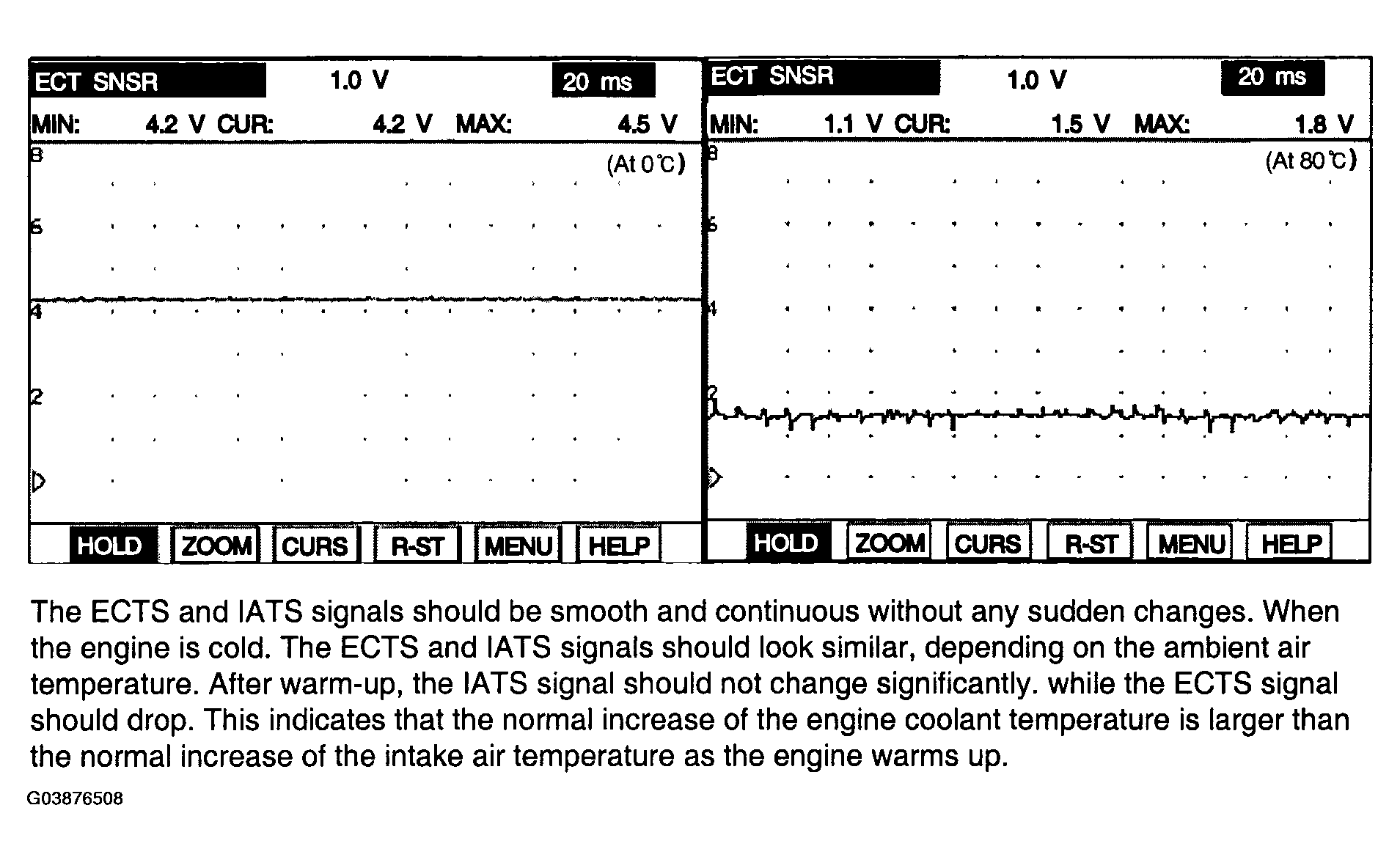

Fig 1: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
