Monitor SCANTOOL Data

Connect scantool and Engine "ON".
Monitor "Signal waveform of CMPS with scantool.

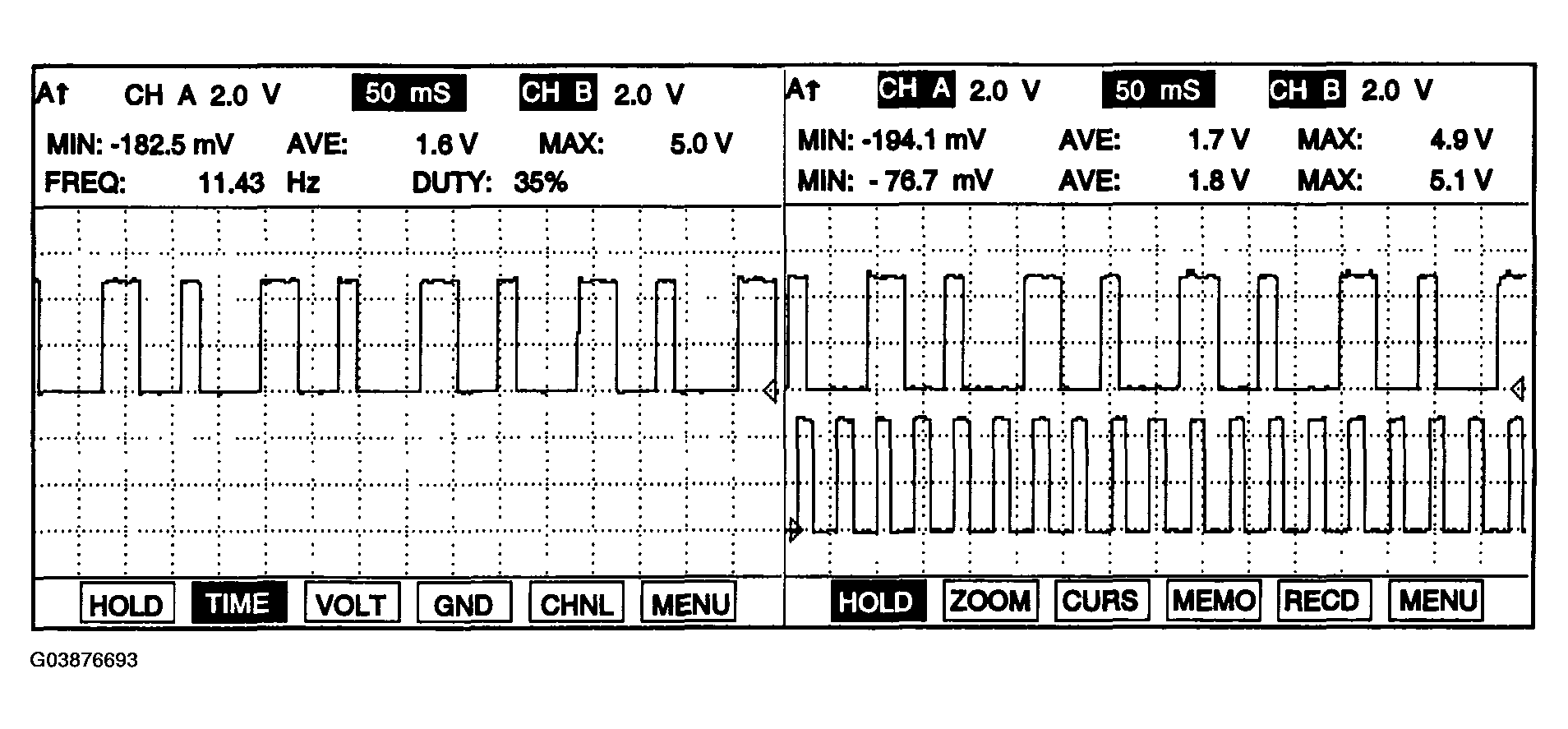

Fig 1: Displaying Signal Waveform Of CMPS On Scantool

G03876693

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured signal waveform of CMPS displayed correctly?
YES

Fault is intermittent caused by poor contact in the sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "W/Harness Inspection" procedure.
