Signal Circuit Inspection

Check for open in signal 1 harness
1. Ignition "OFF"
2. Disconnect VIS motor rotation sensor connector
3. Measure resistance between terminal "A" of VIS motor rotation sensor harness connector and "B13" of PCM harness connector.
  Specification: Approx. below 1Ω
4. Is the measured resistance within specifications?

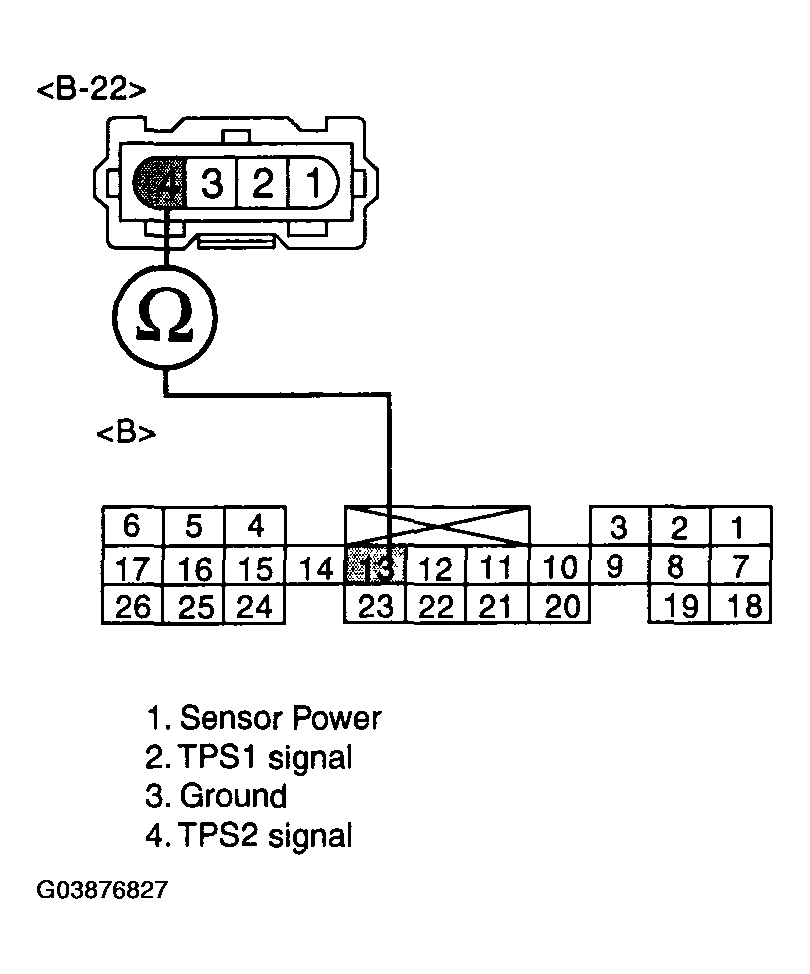

  Fig 1: Measuring Resistance Between Terminal "A" Of VIS Motor Rotation Sensor Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.

  YES
  - Go to "Check for open in signal 2 harness" as below.
  NO
  - Check for open in signal 1 harness. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for Close in signal 2 harness
1. Ignition "OFF"
2. Disconnect VIS motor rotation sensor connector.
3. Measure resistance between terminal "2" of VIS motor rotation sensor harness connector and "B23" of PCM harness connector.
  Specification: Approx. Below 1Ω.

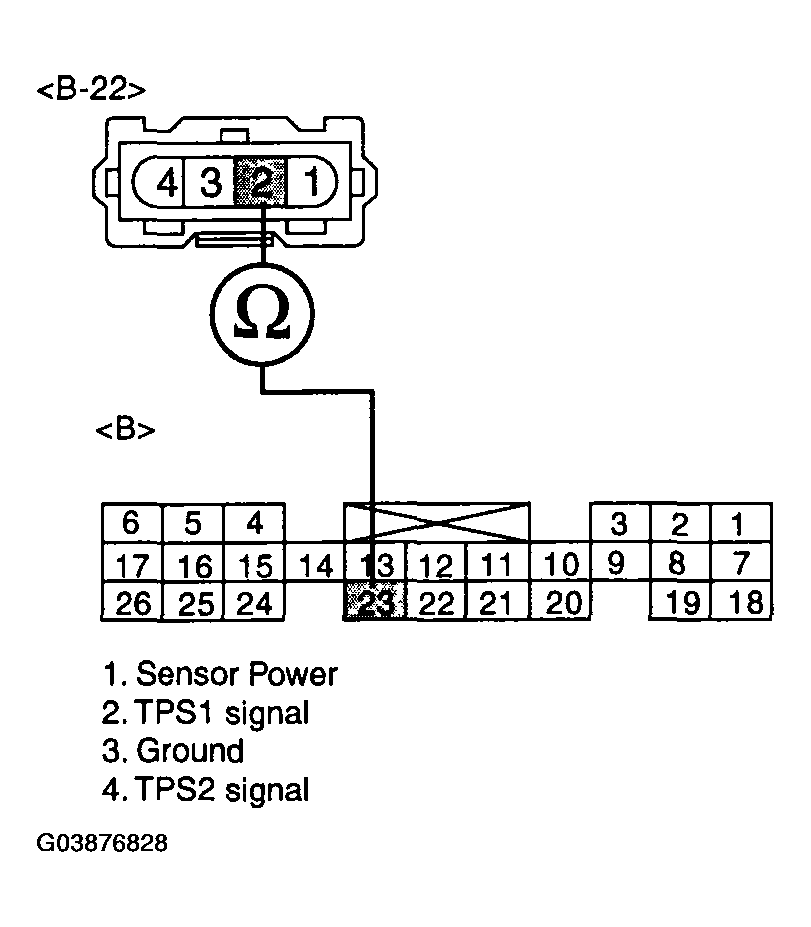

  Fig 2: Measuring Resistance Between Terminal "2" Of VIS Motor Rotation Sensor Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to "GROUND CIRCUIT INSPECTION " procedure.
  NO
  - Check for open in signal 2 harness. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
