DTC P2110//P2176 Throttle Actuator Control Module Performance // Throttle Actuator Control System-Stuck Closed (IG Off)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

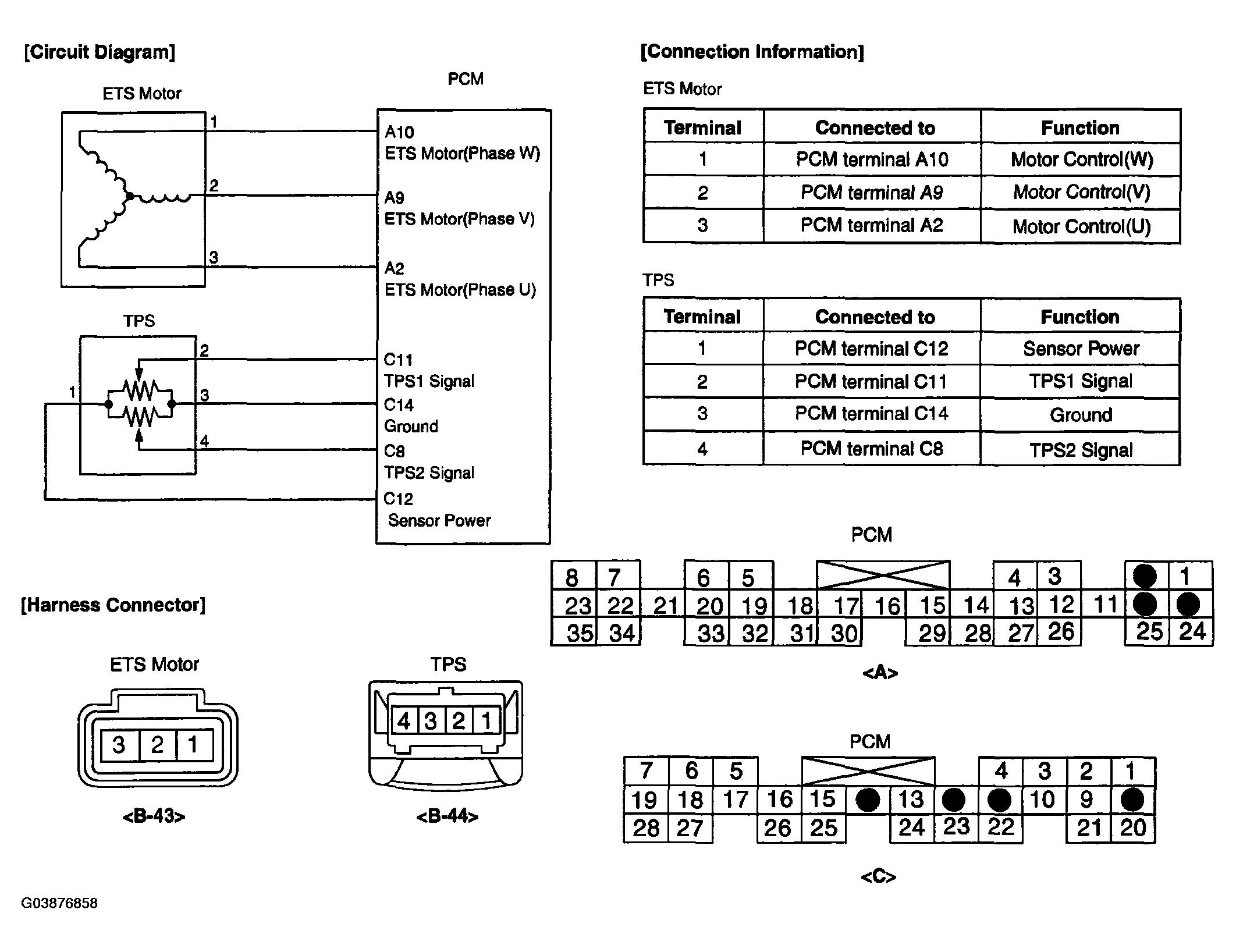

Fig 1: Schematic Diagram TPS
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
