Ground Circuit Inspection

Check for open in harness
1. Ignition "OFF"
2. Disconnect APS connector and PCM connector.
3. Measure resistance between terminal "7" of APS harness connector and "D12" of PCM harness connector.
  Specification: Approx. below 1Ω

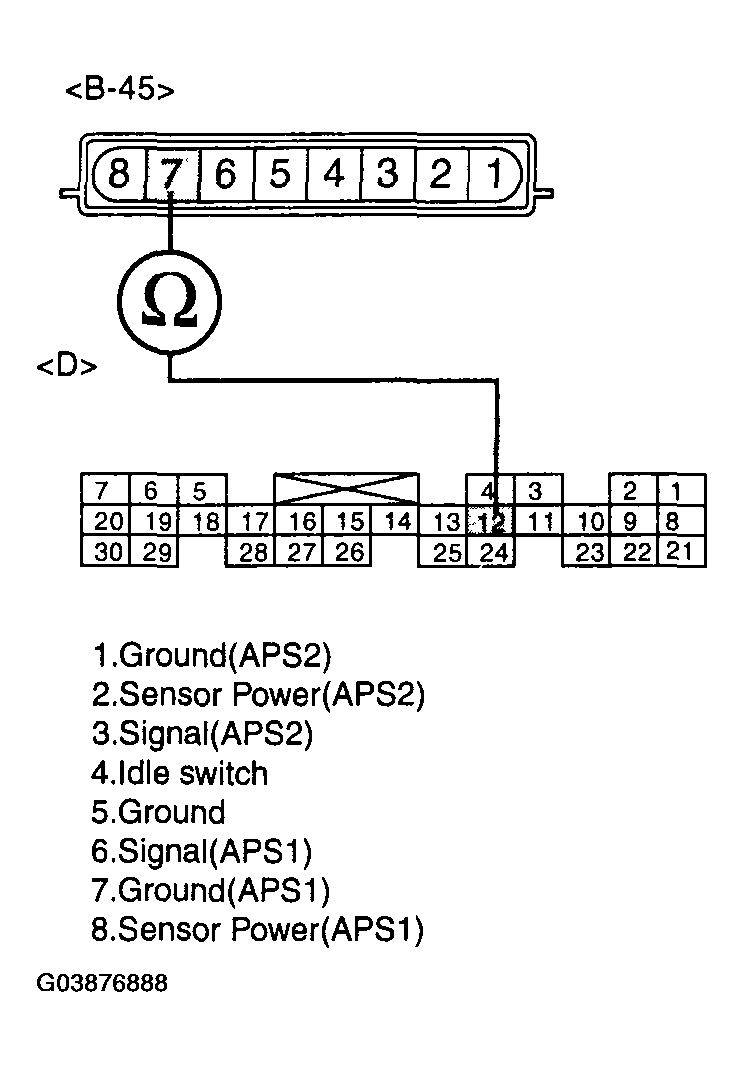

  Fig 1: Measuring Resistance Between Terminal "7" Of APS Harness Connector And "D12" Of PCM Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Check for open in ground harness, Repair replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
