Knock Sensor: Troubleshooting: Procedures

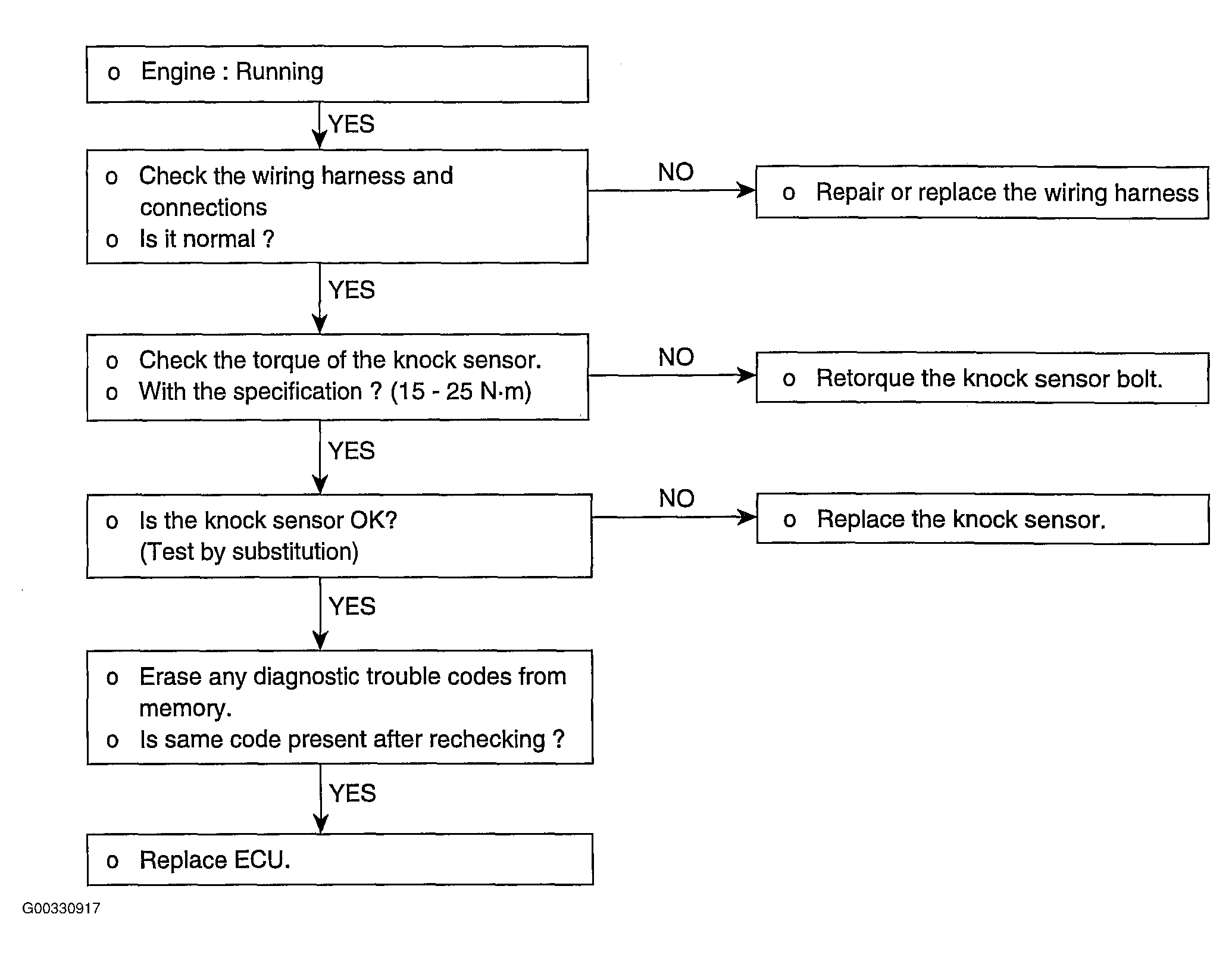

Fig 1: Identifying Knock Sensor Troubleshooting Flow Chart
G00330917Courtesy of KIA MOTORS AMERICA, INC.
