Fuel Line And Vapor Line: Installation

  1. Install the fuel vapor hose and return hoses.
    • If the fuel line has a stepped section, connect the fuel hose to the line securely, as shown in the illustration.
    • If the fuel line does not have a stepped section, connect the fuel hose to the line securely.

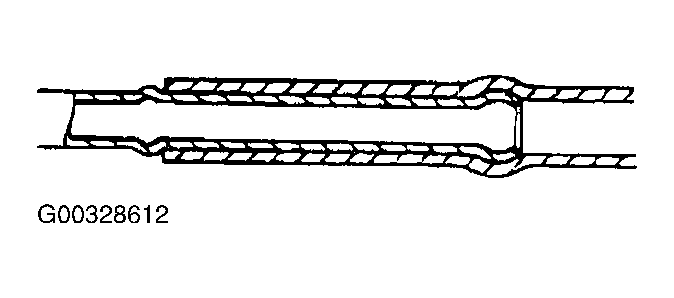

Fig 1: Installing Fuel Vapor Hose & Return Hoses (With Stepped Section)
G00328612Courtesy of KIA MOTORS AMERICA, INC.

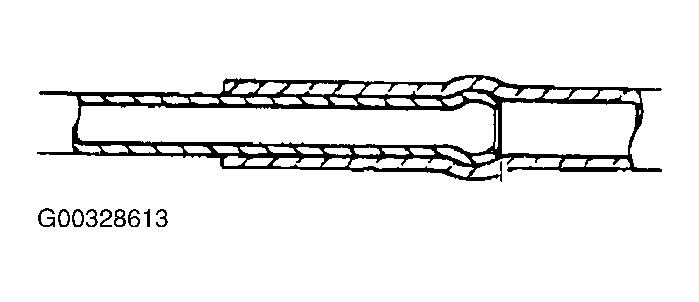

Fig 2: Installing Fuel Vapor Hose & Return Hoses (Without Stepped Section)
G00328613Courtesy of KIA MOTORS AMERICA, INC.
