Connector (M)

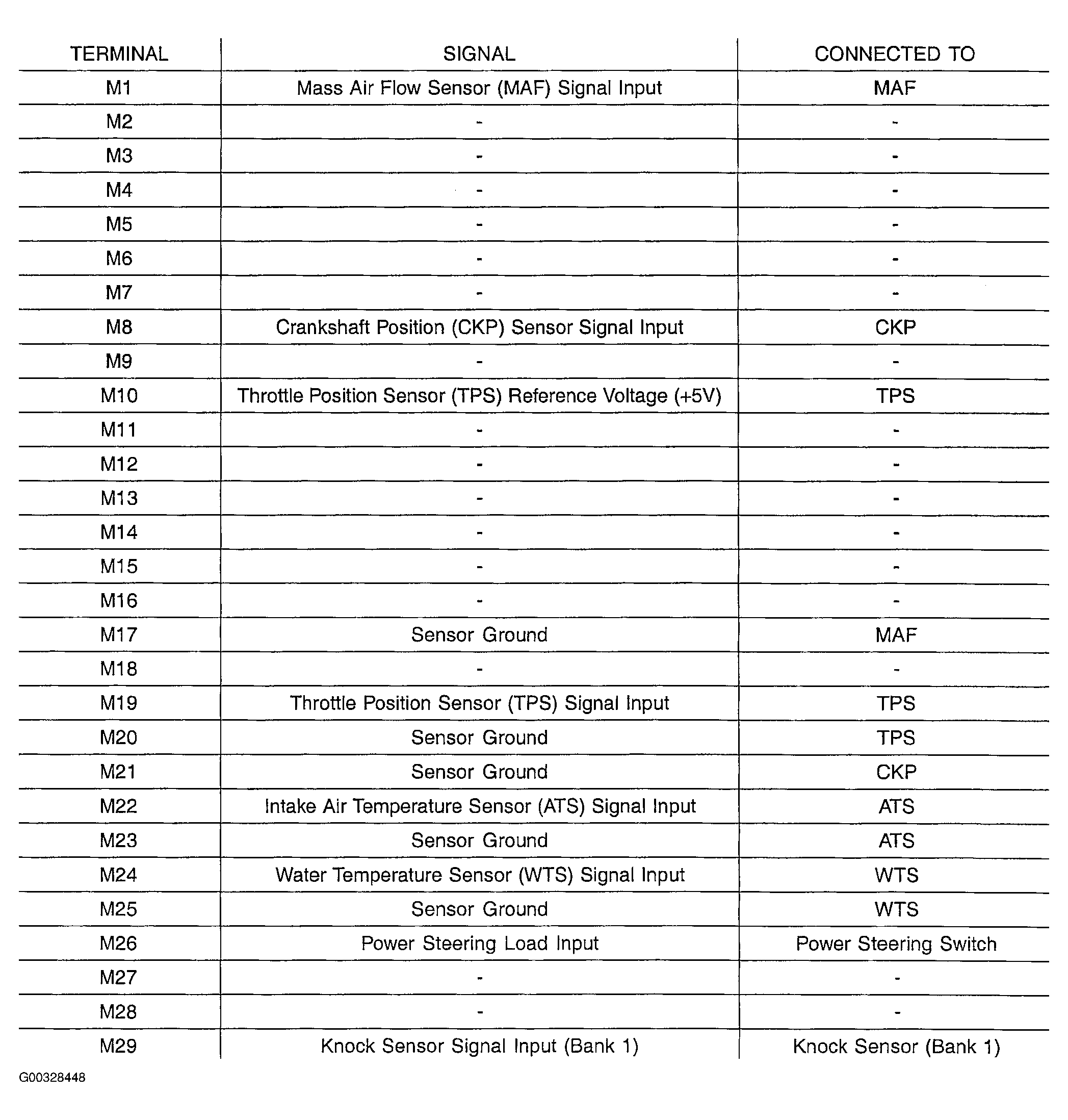

Fig 1: Engine Control Unit Terminal Layout (Connector M) (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

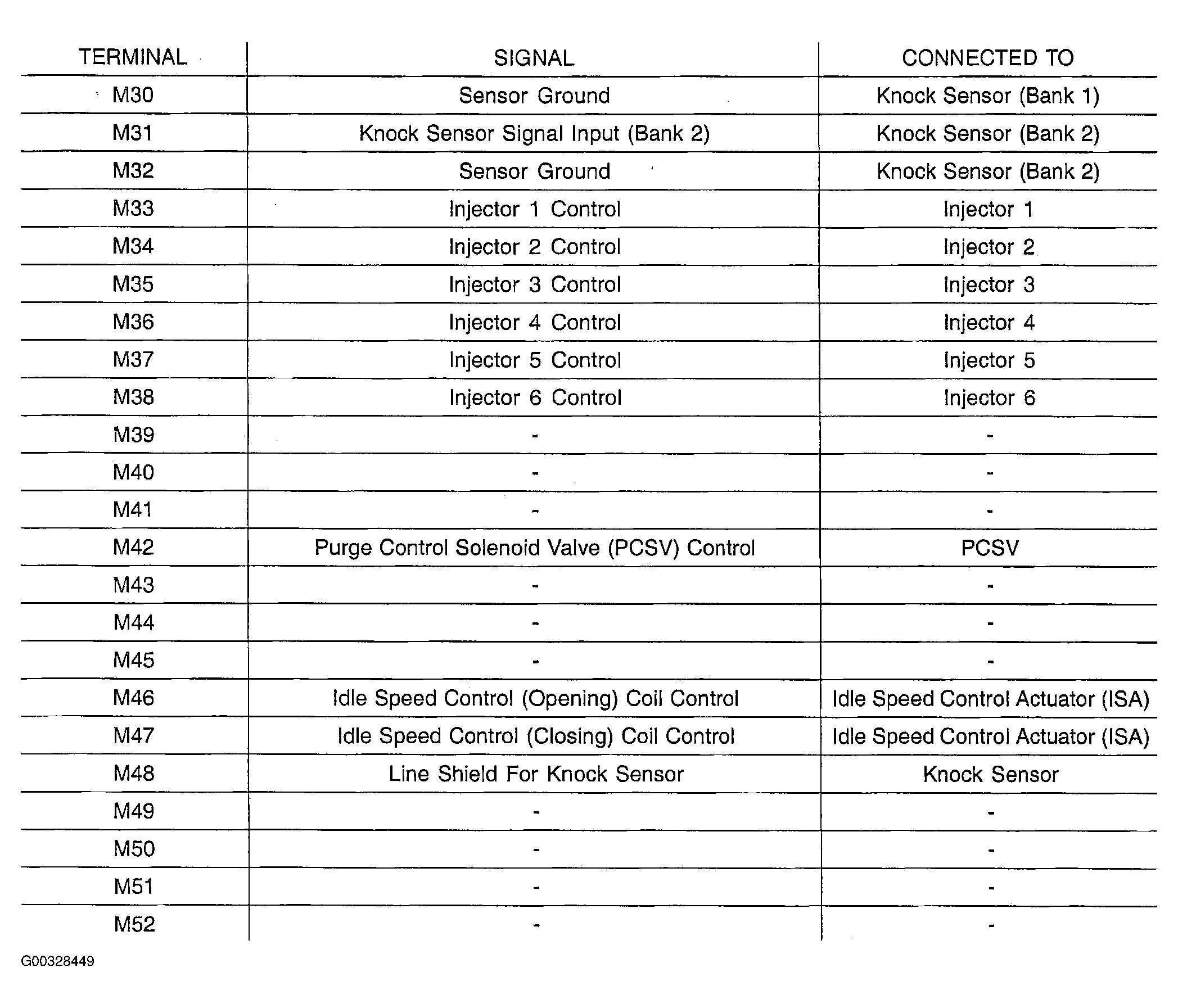

Fig 2: Engine Control Unit Terminal Layout (Connector M) (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
