Connector (P)

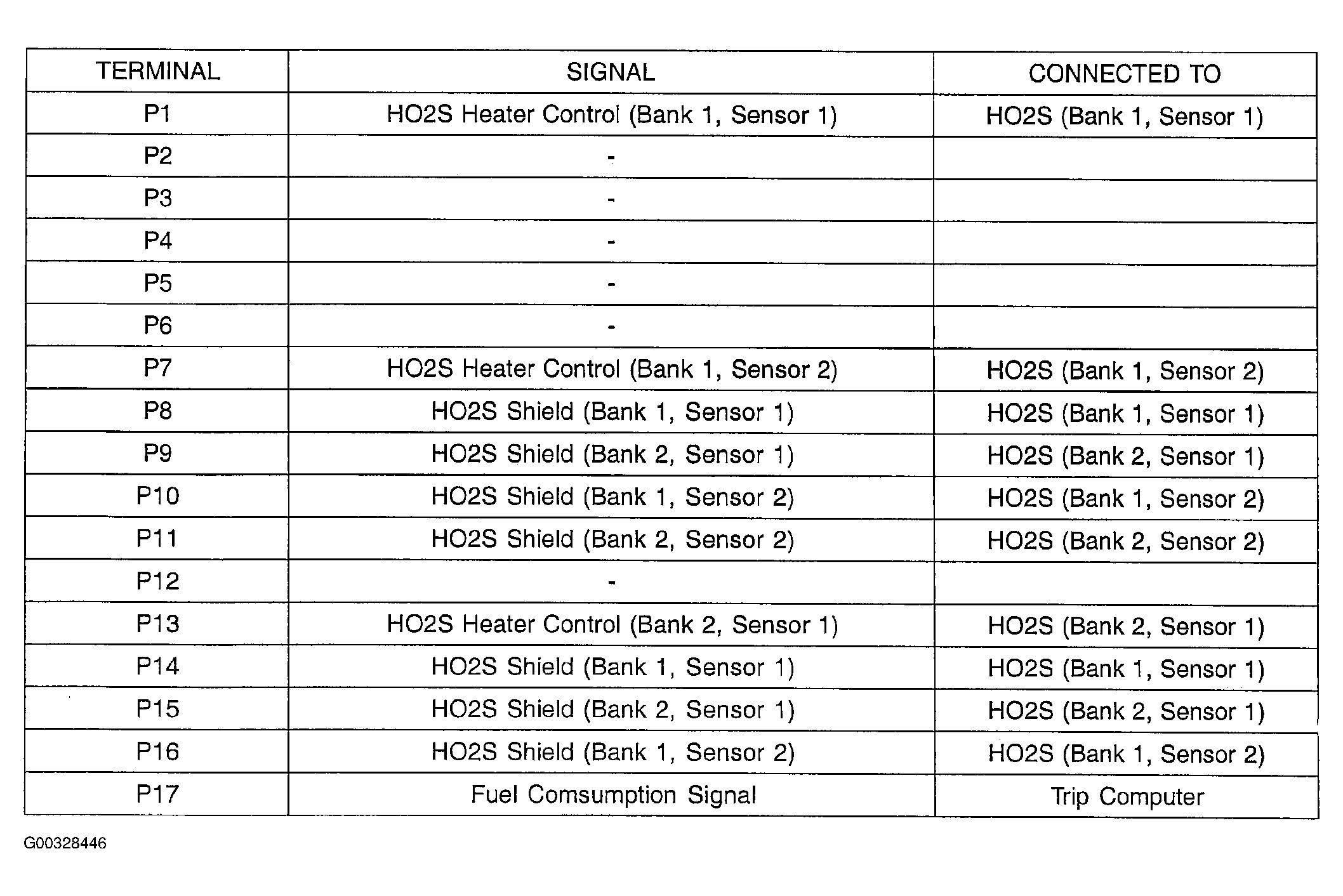

Fig 1: Engine Control Unit Terminal Layout (Connector P) (1 OF 2)
Courtesy of KIA MOTORS AMERICA, INC.

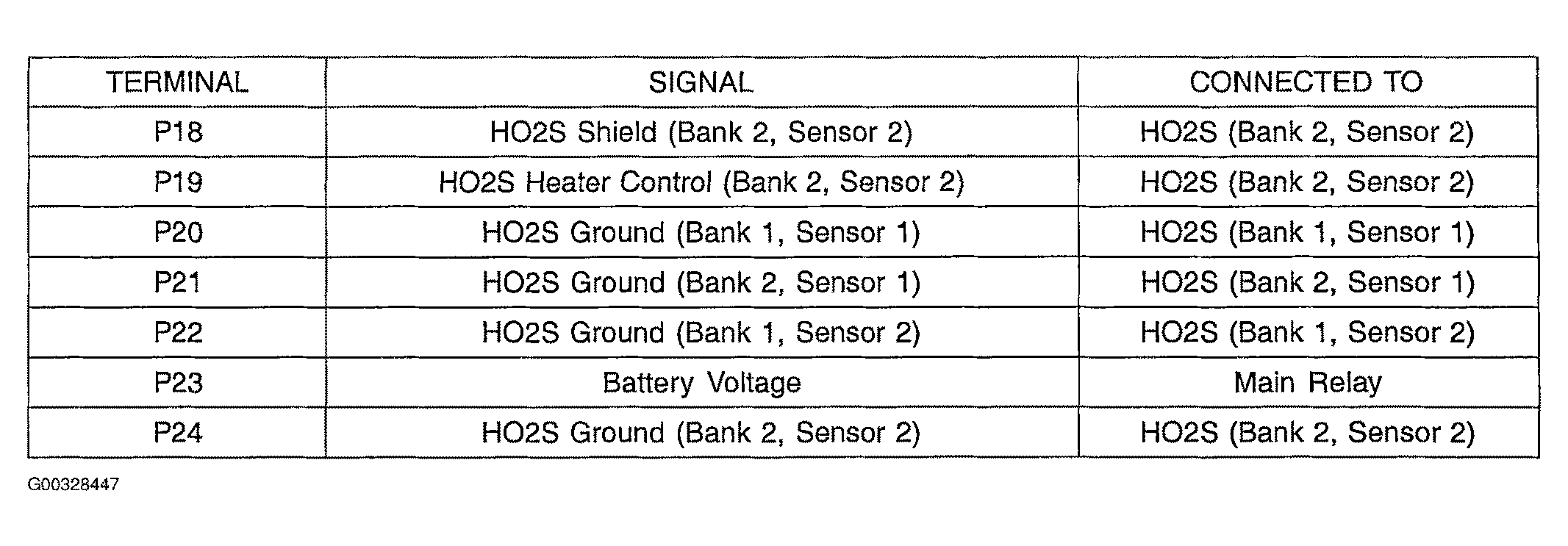

Fig 2: Engine Control Unit Terminal Layout (Connector P) (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
