Optima EX, 2.7 8
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.7L
>>
MFI Control System
>>
Ecu Terminal Layout
>>
Connector (V)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector (V)

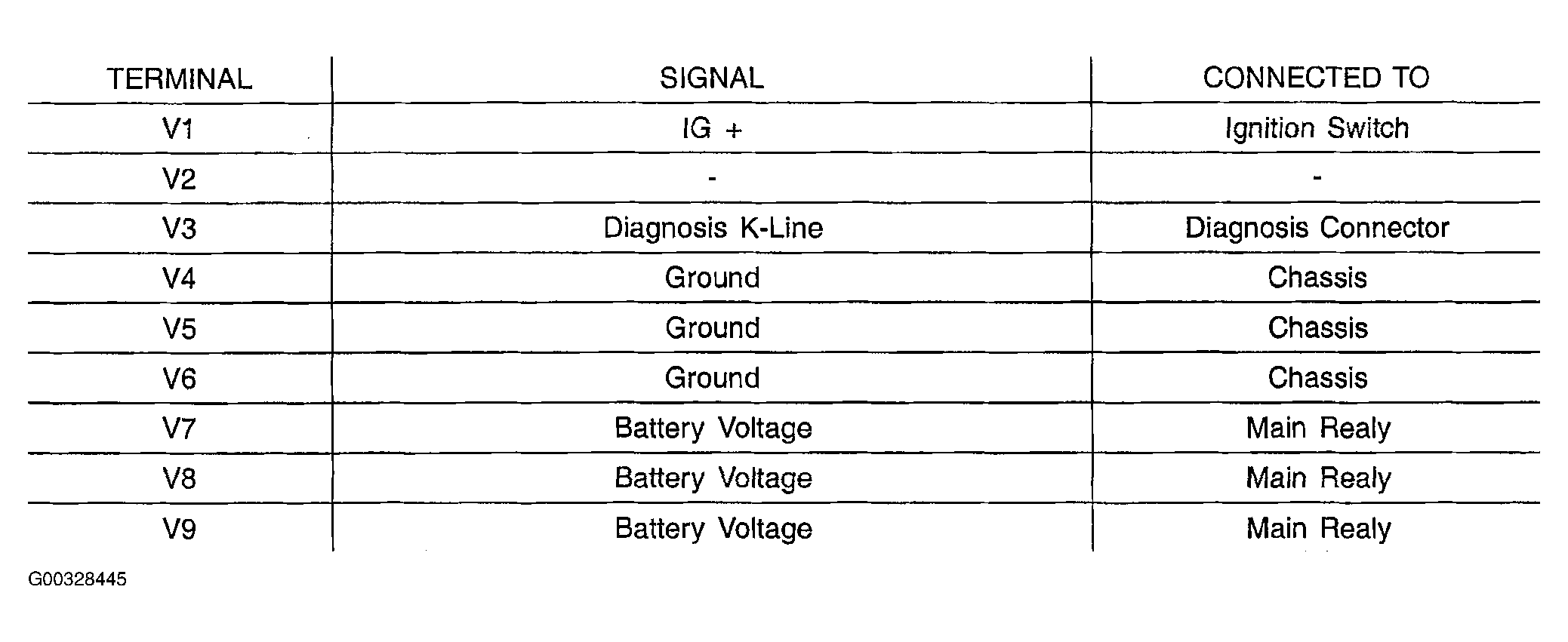

Fig 1: Engine Control Unit Terminal Layout (Connector V)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
