Resistance Measurement Between Terminals

  1. Disconnect the connector at the injector.
  2. Measure the resistance between terminals.

    Standard value: 13-16 Ω (at 20°C (68°F))

  3. Re-connect the connector to the injector.

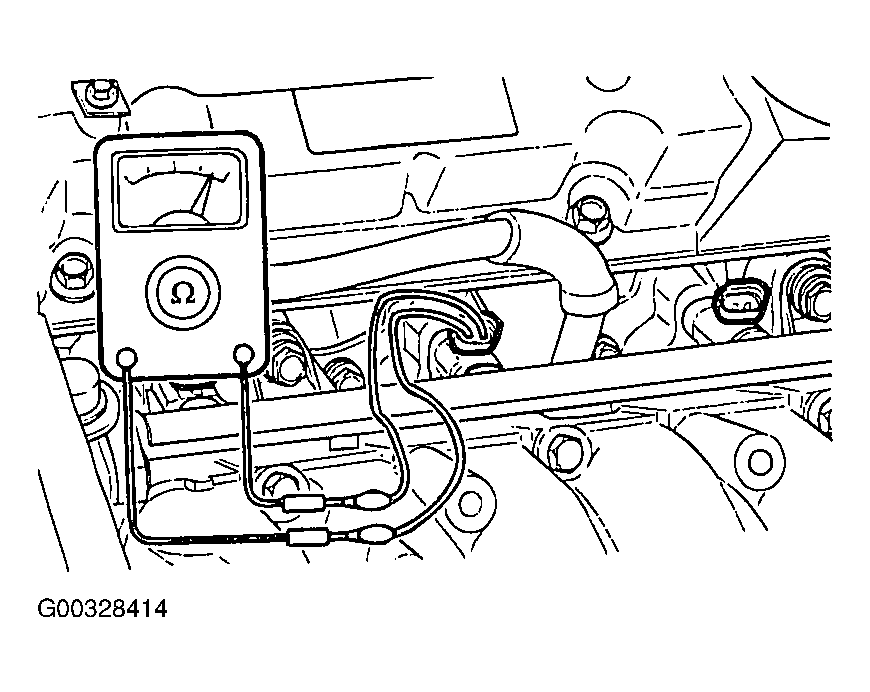

Fig 1: Checking Fuel Injector Resistance
G00328414Courtesy of KIA MOTORS AMERICA, INC.
