Harness Inspection Procedures (Ftps)

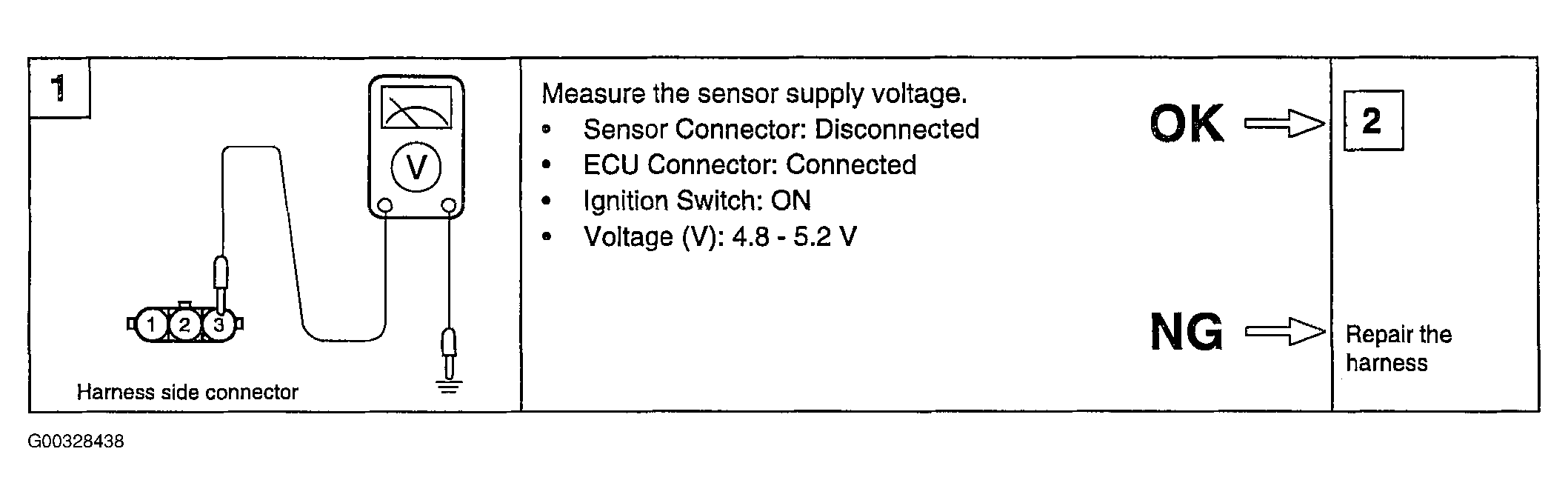

Fig 1: Checking Fuel Tank Pressure Sensor (FTPS) Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

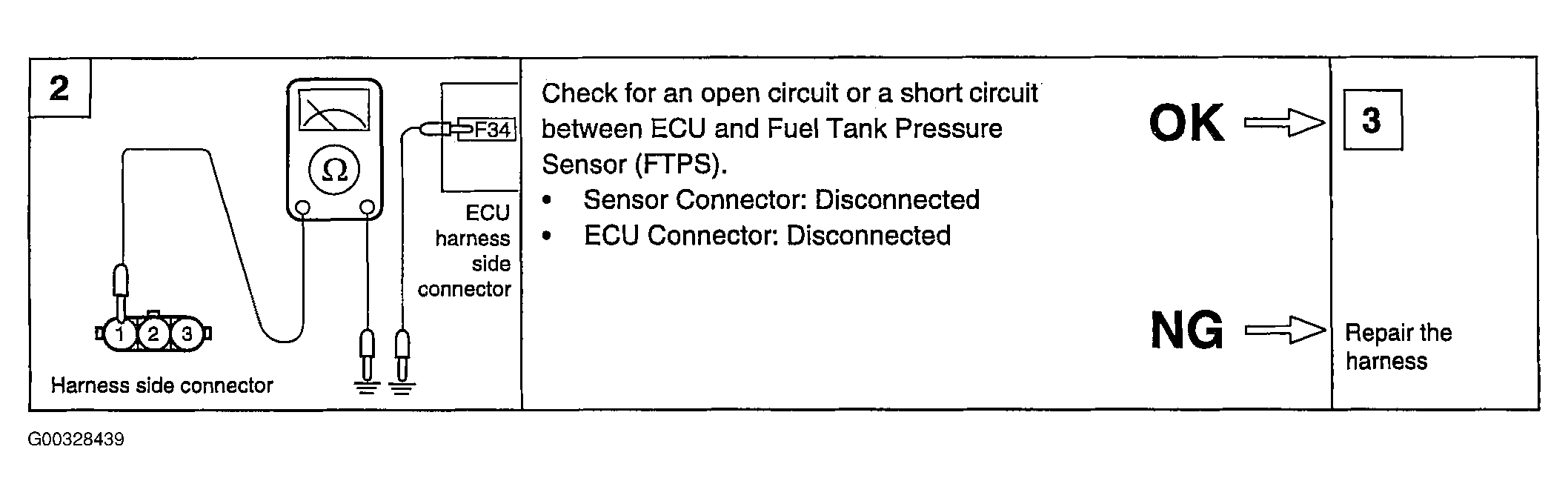

Fig 2: Checking Fuel Tank Pressure Sensor (FTPS) Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

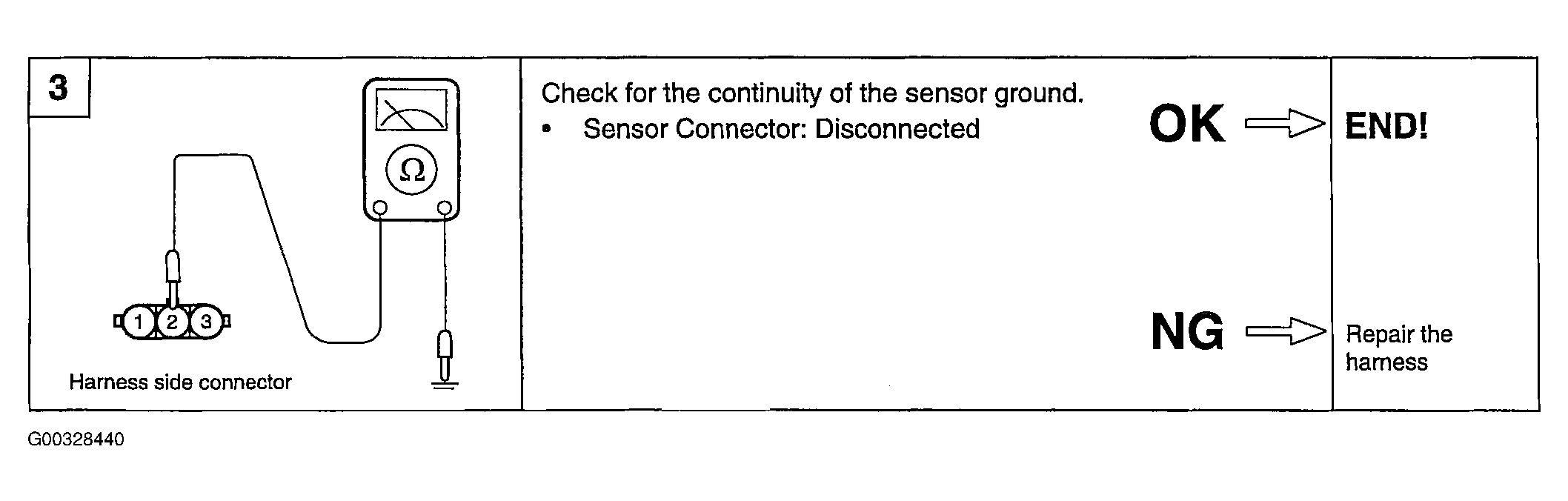

Fig 3: Checking Fuel Tank Pressure Sensor (FTPS) Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
