Troubleshooting Procedures

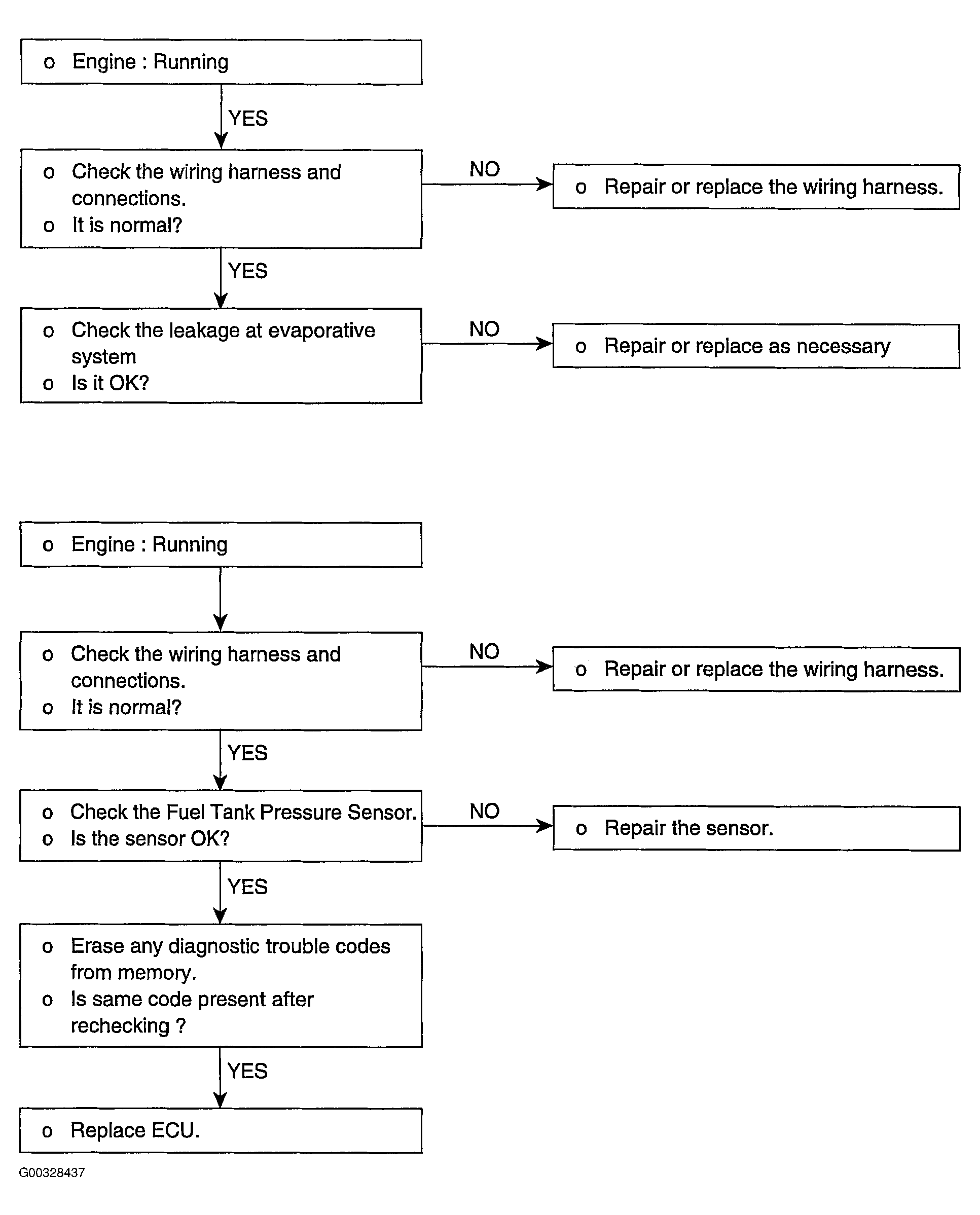

Fig 1: Fuel Tank Pressure Sensor (FTPS) Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
