Harness Inspection Procedures (ISA)

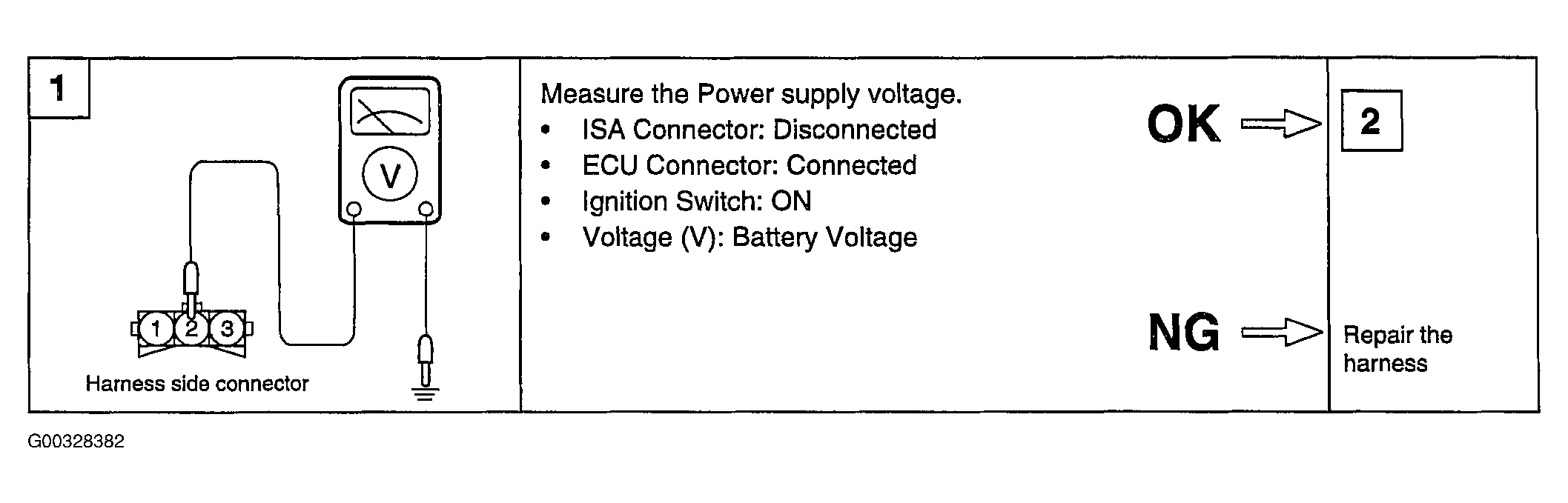

Fig 1: Checking Idle Speed Control Actuator (ISA) Harness (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

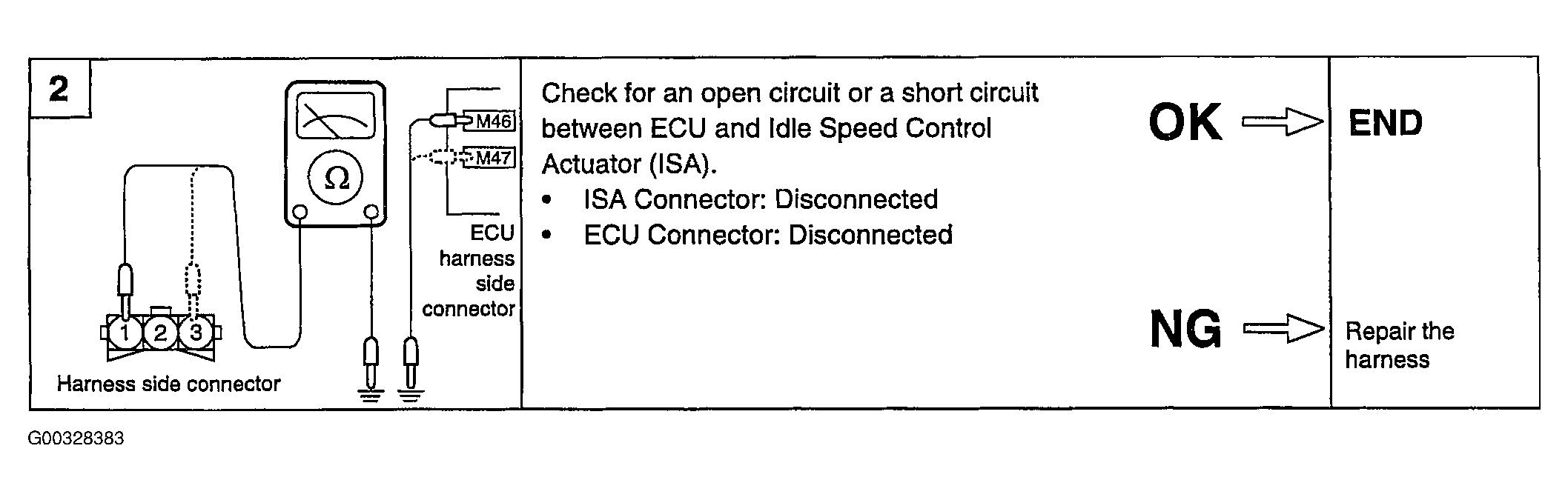

Fig 2: Checking Idle Speed Control Actuator (ISA) Harness (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
