Using MULTIMETER

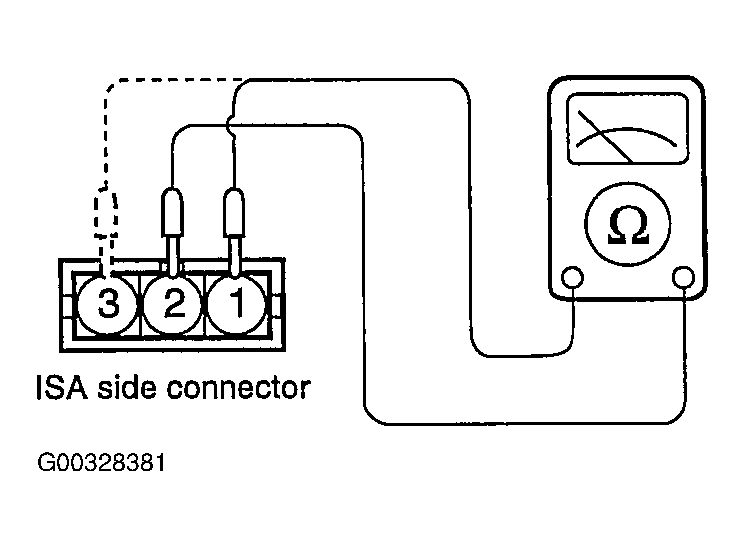

Fig 1: Checking Idle Speed Control Actuator (ISA) (Using Multimeter)

Courtesy of KIA MOTORS AMERICA, INC.

Standard value:

Terminal 3 and 2 (Open): 14.5-16.5 Ω

Terminal 1 and 2 (Closing): 16.6-18.6Ω (at 20°C (68°F))
