Troubleshooting Procedures

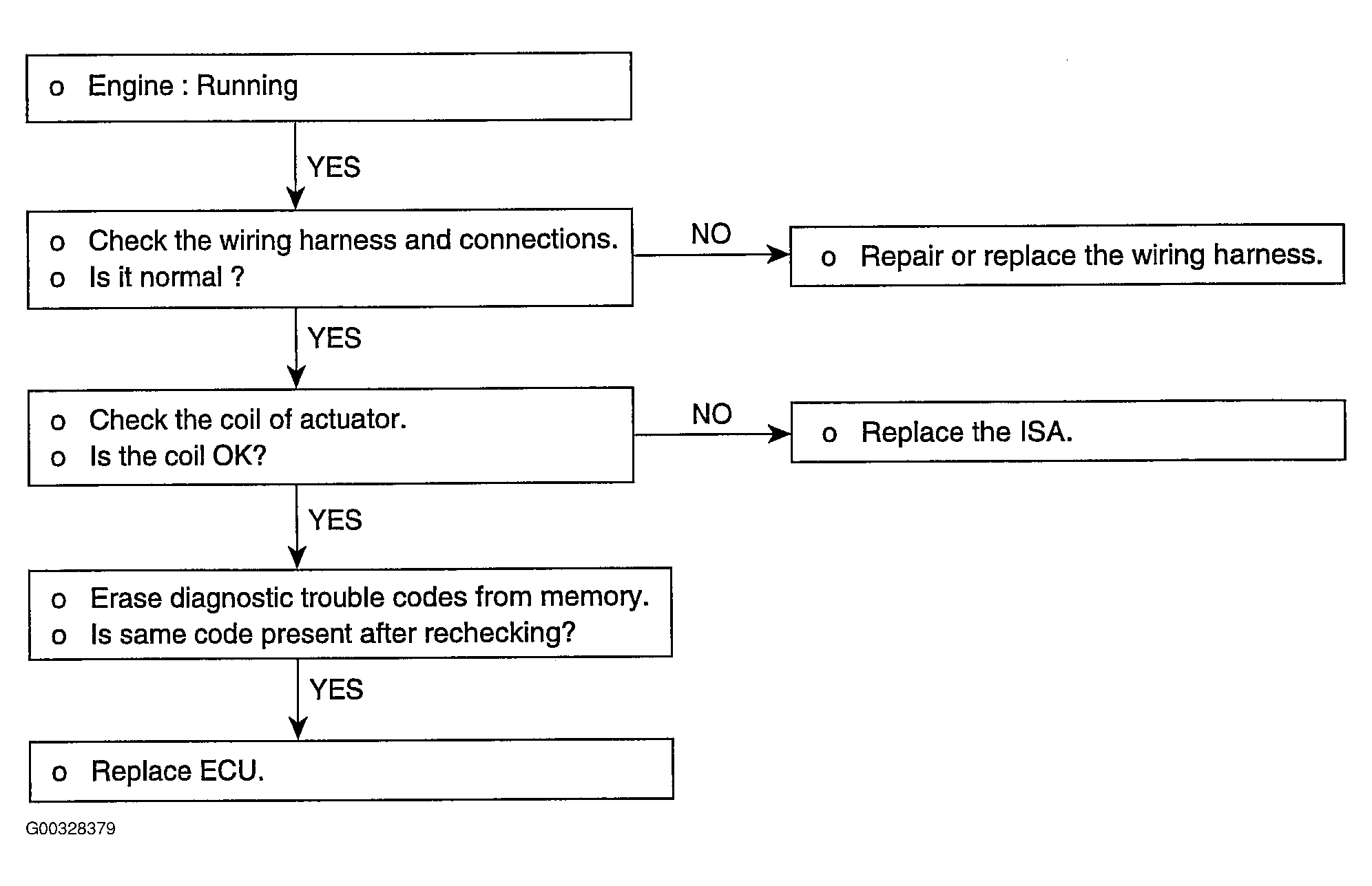

Fig 1: Idle Speed Control Actuator (ISA) Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
