Harness Inspection Procedures (ATS)

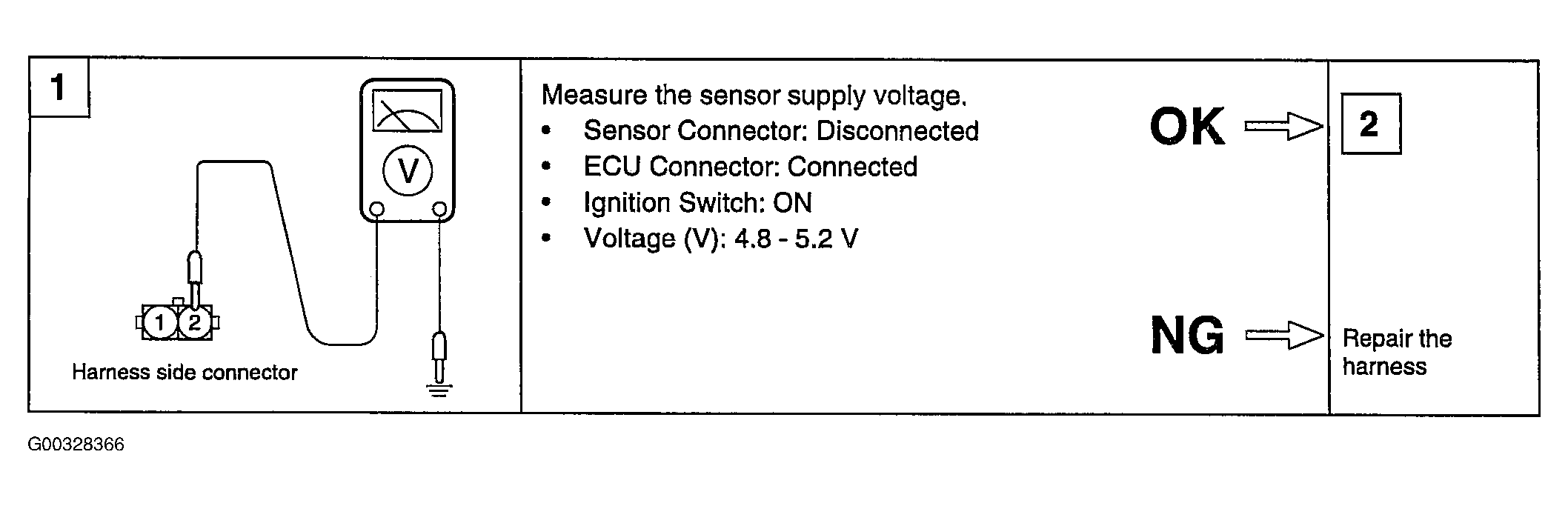

Fig 1: Checking Intake Air Temperature Sensor (ATS) Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

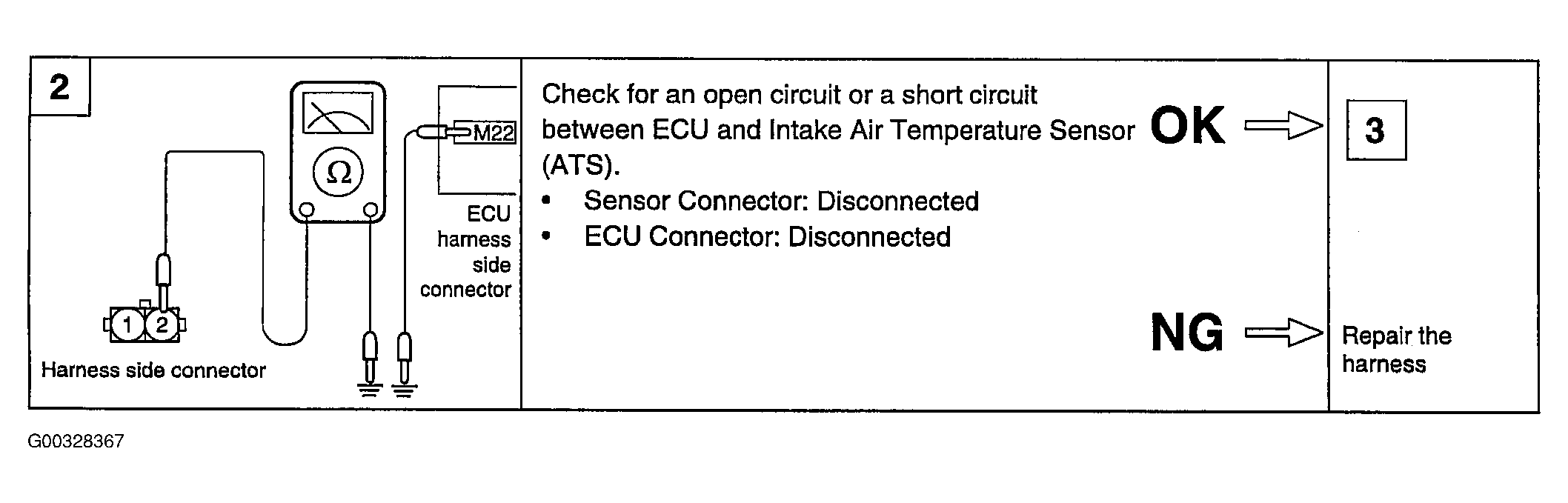

Fig 2: Checking Intake Air Temperature Sensor (ATS) Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

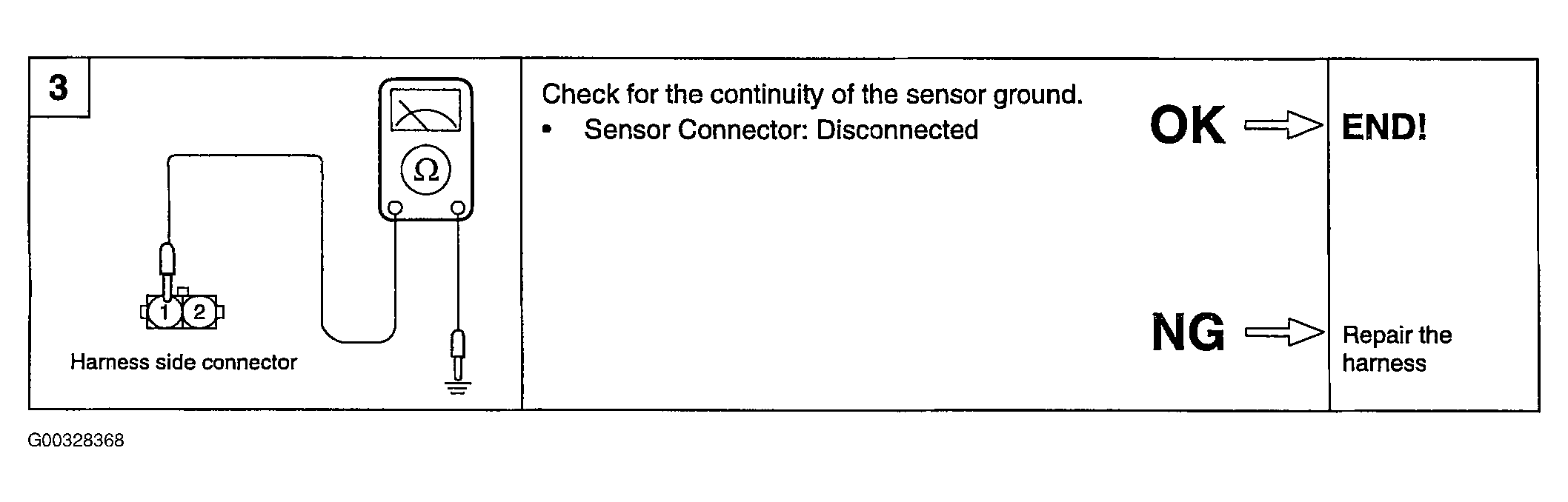

Fig 3: Checking Intake Air Temperature Sensor (ATS) Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
