Harness Connector

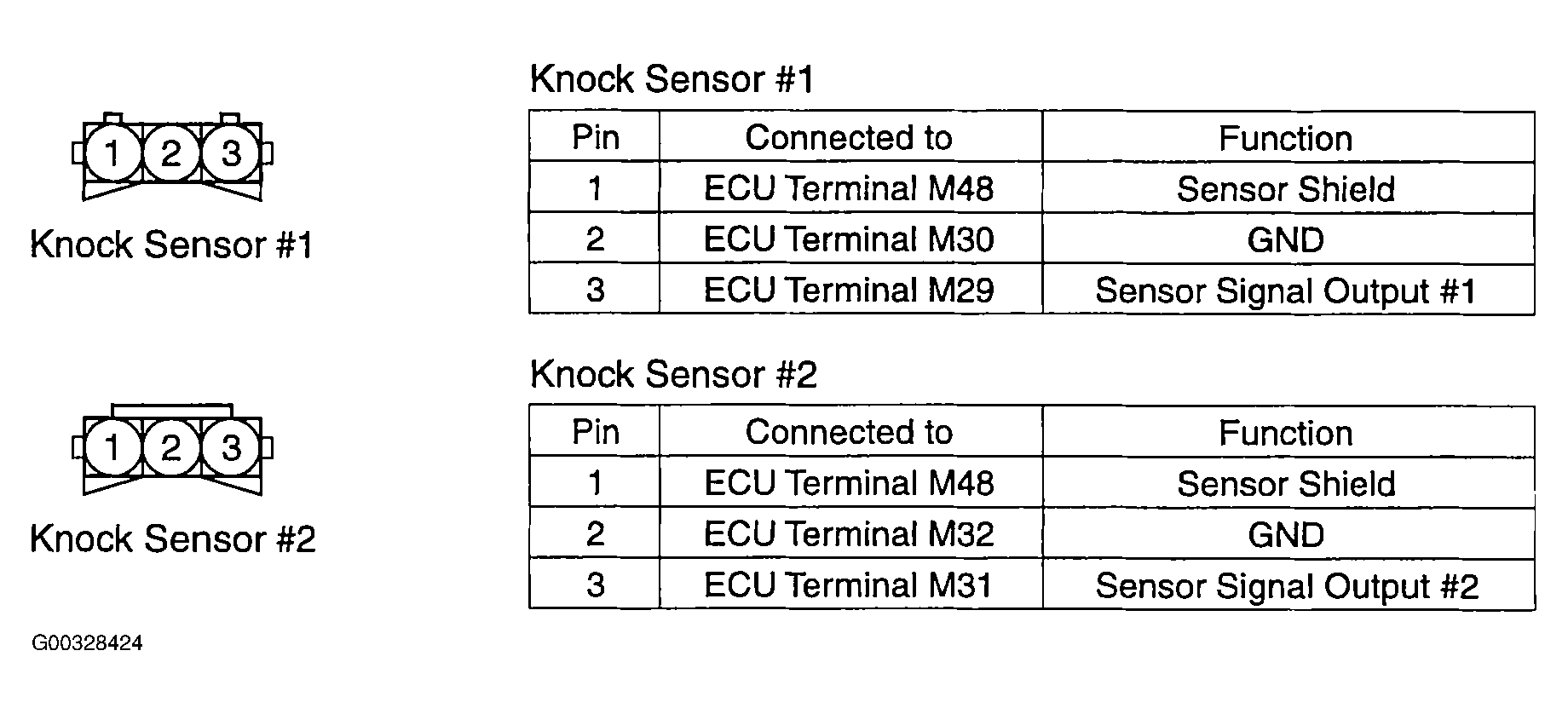

Fig 1: Knock Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
