Harness Inspection Procedures (MAF)

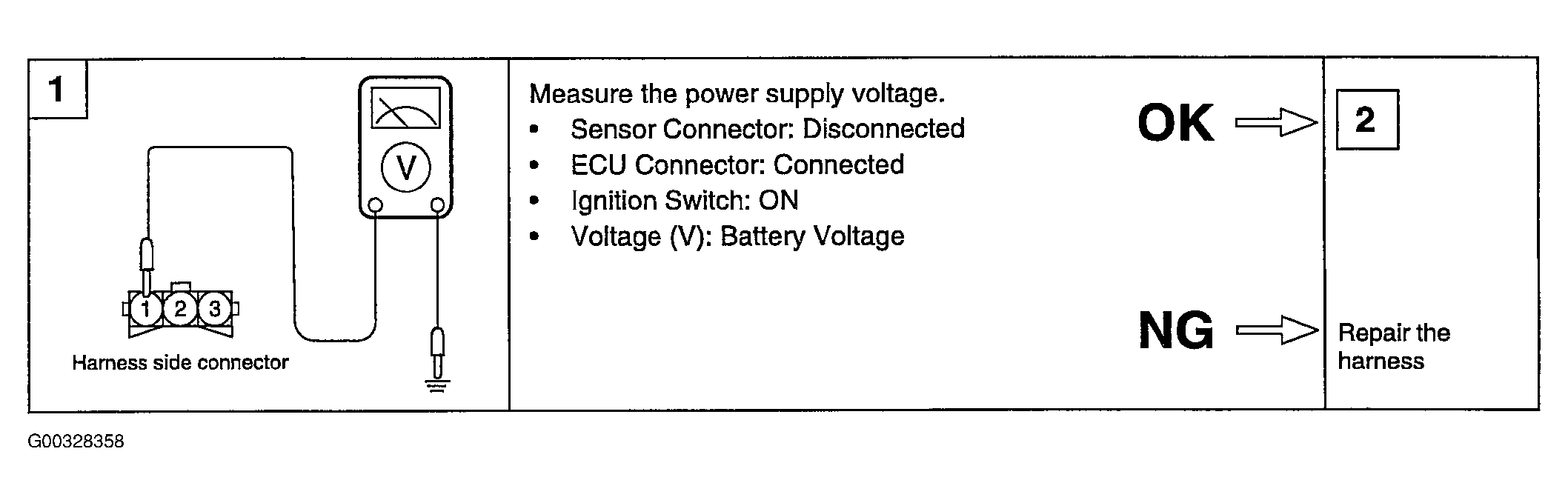

Fig 1: Checking Mass Air Flow (MAF) Sensor Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

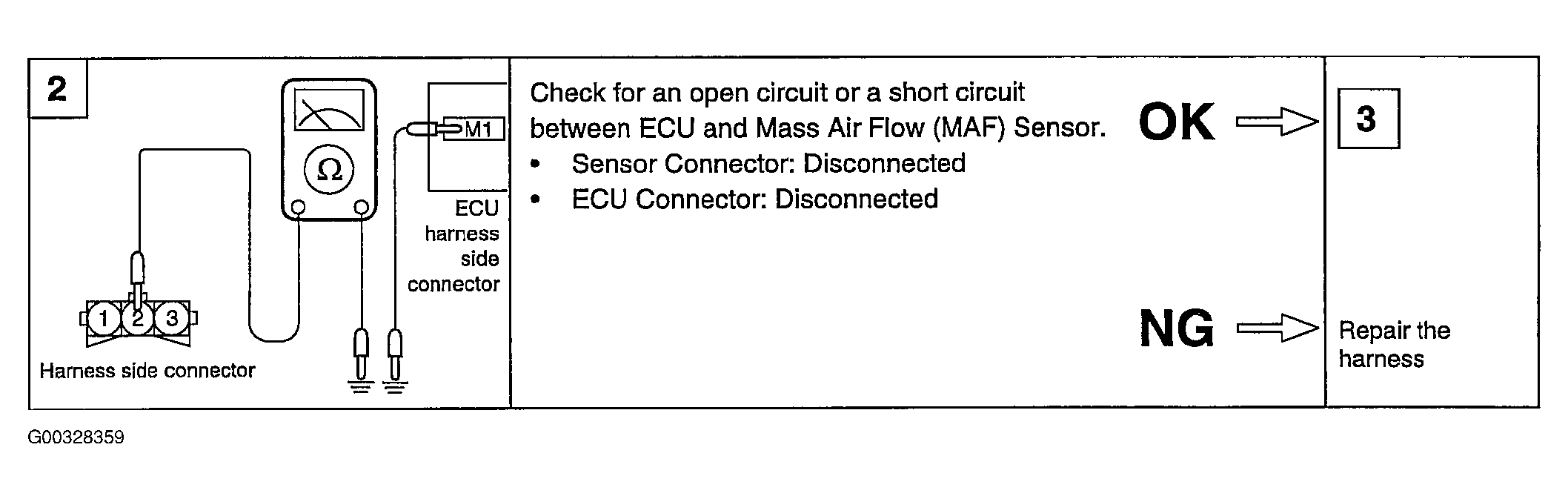

Fig 2: Checking Mass Air Flow (MAF) Sensor Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

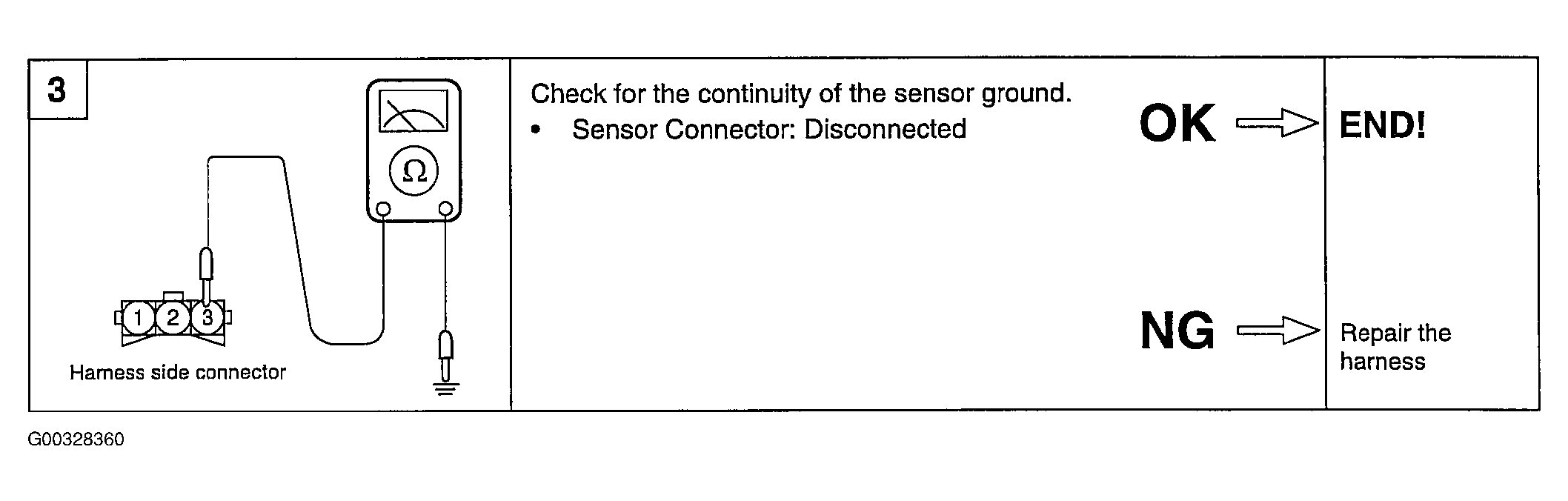

Fig 3: Checking Mass Air Flow (MAF) Sensor Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
