Harness Connector

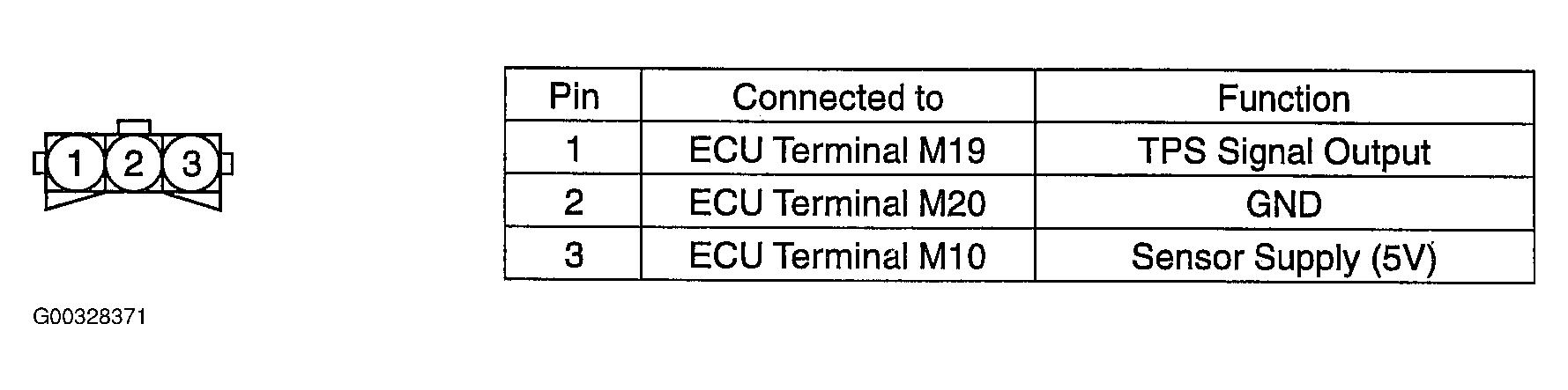

Fig 1: Throttle Position Sensor (TPS) Connector
Courtesy of KIA MOTORS AMERICA, INC.
