Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.7L
>>
MFI Control System
>>
Throttle Position Sensor (TPS)
>>
Harness Inspection Procedures (TPS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Harness Inspection Procedures (TPS)

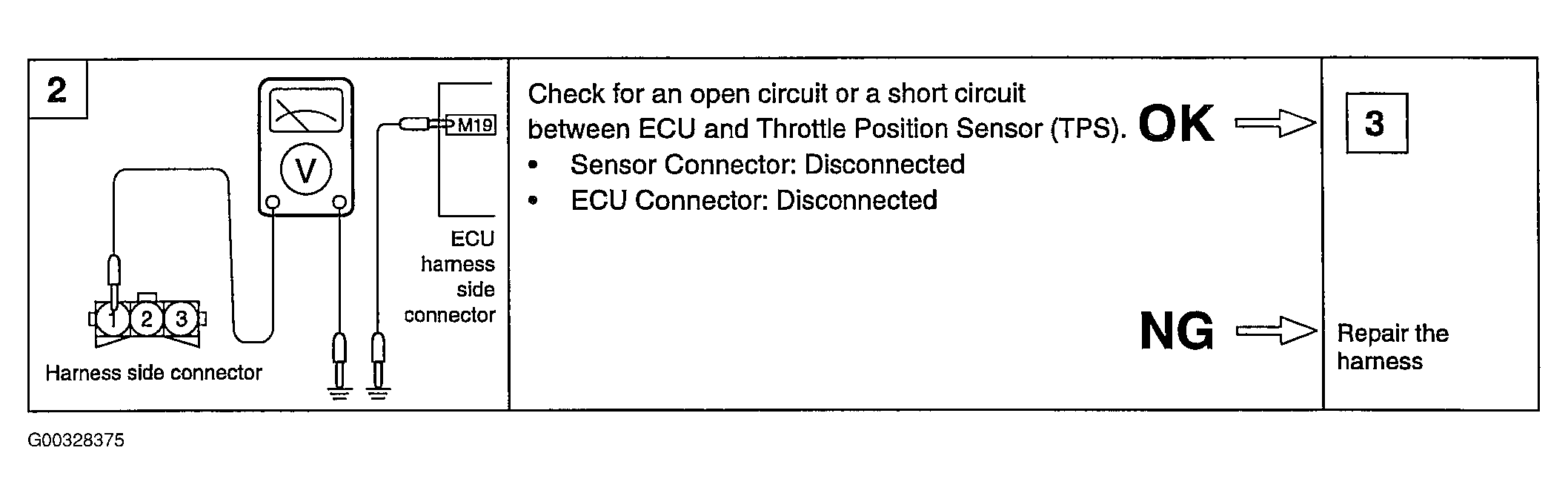

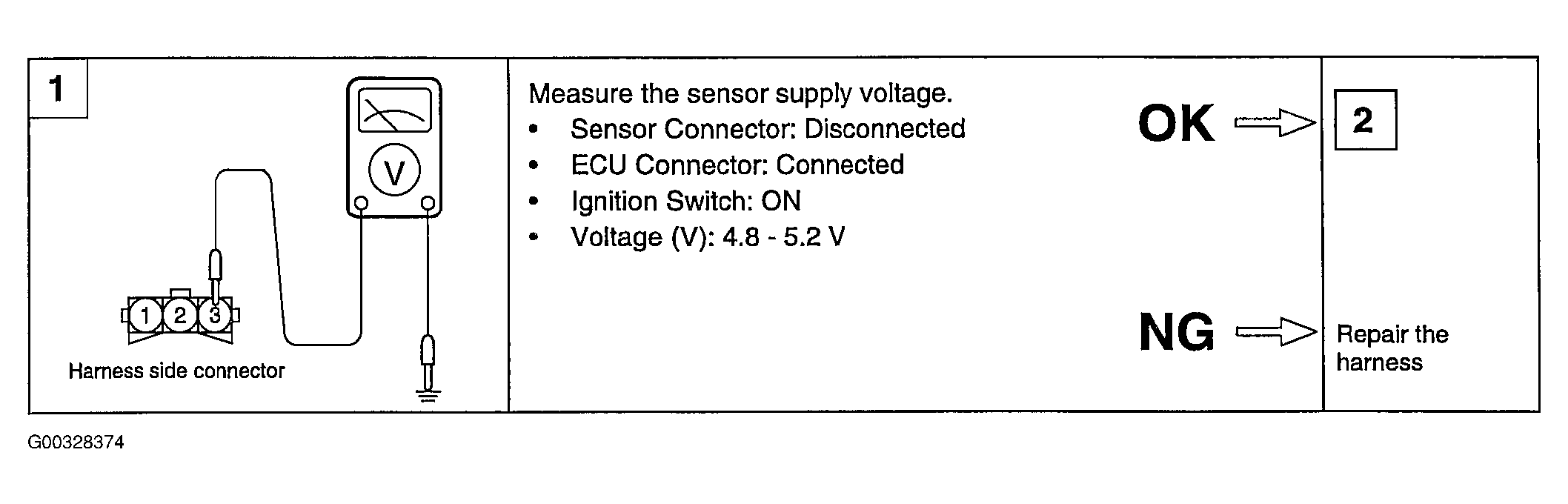

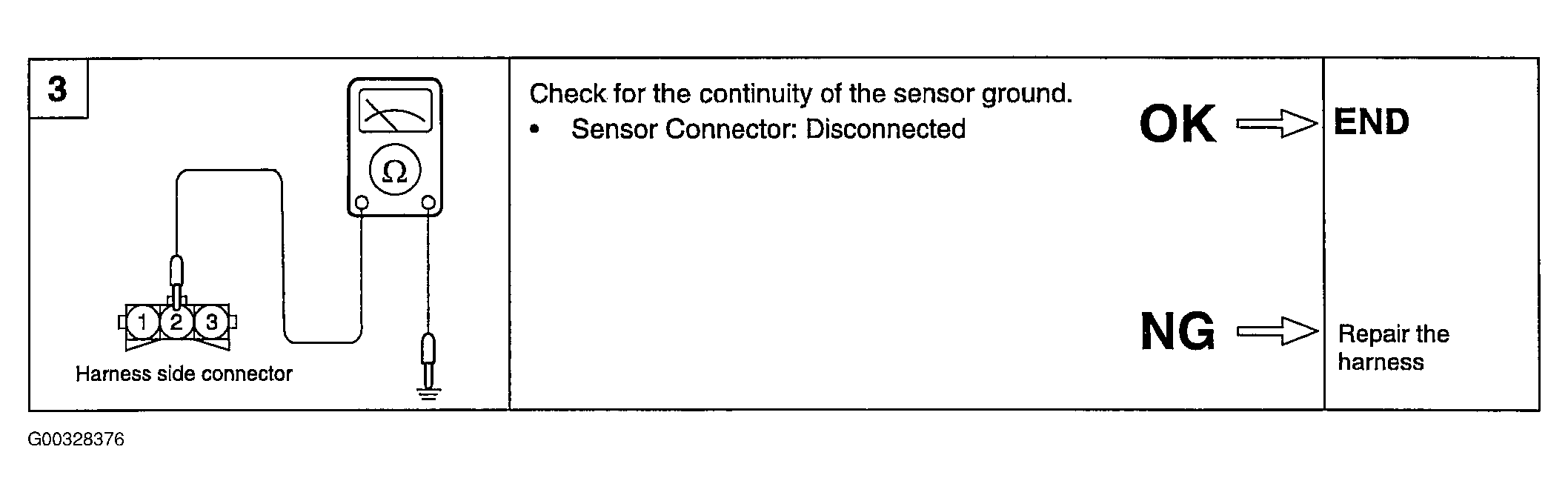

Fig 1: Checking Throttle Position Sensor (TPS) Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Checking Throttle Position Sensor (TPS) Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Checking Throttle Position Sensor (TPS) Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
