Optima LX, 2.4 6, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.4L (M/T)
>>
MFI Control System
>>
Ecu Terminal Layout
>>
Vehicles Without Transaxle Control Unit (TCU) (Vehicles With Manual Transaxle)
>>
Connector (B)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector (B)

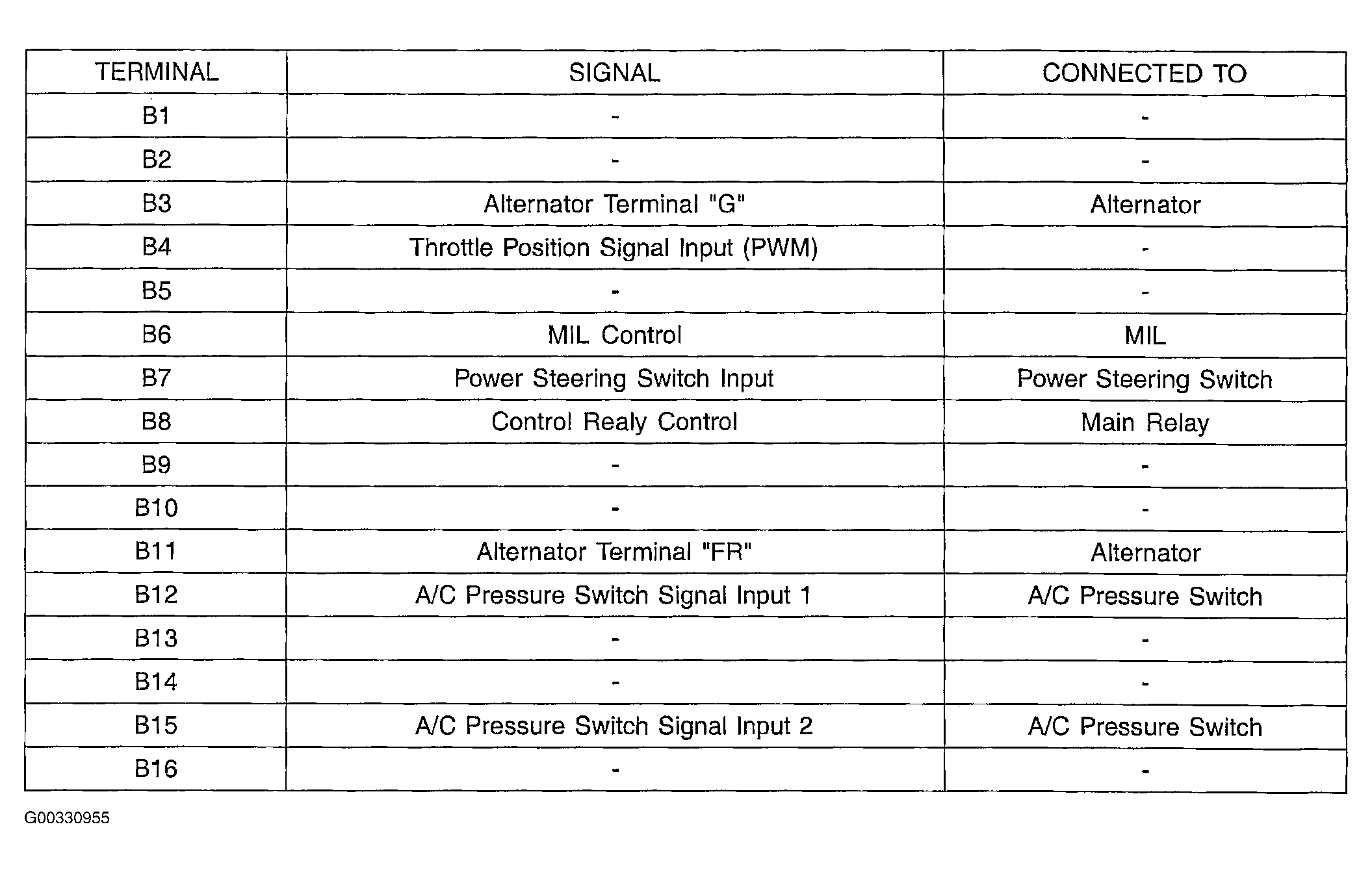

Fig 1: Identifying Terminal Layout Of Connector "B" - Vehicles Without Transaxle Control Unit (TCU) (Vehicles With Manual Transaxle)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
