Circuit Diagram (Ftps)

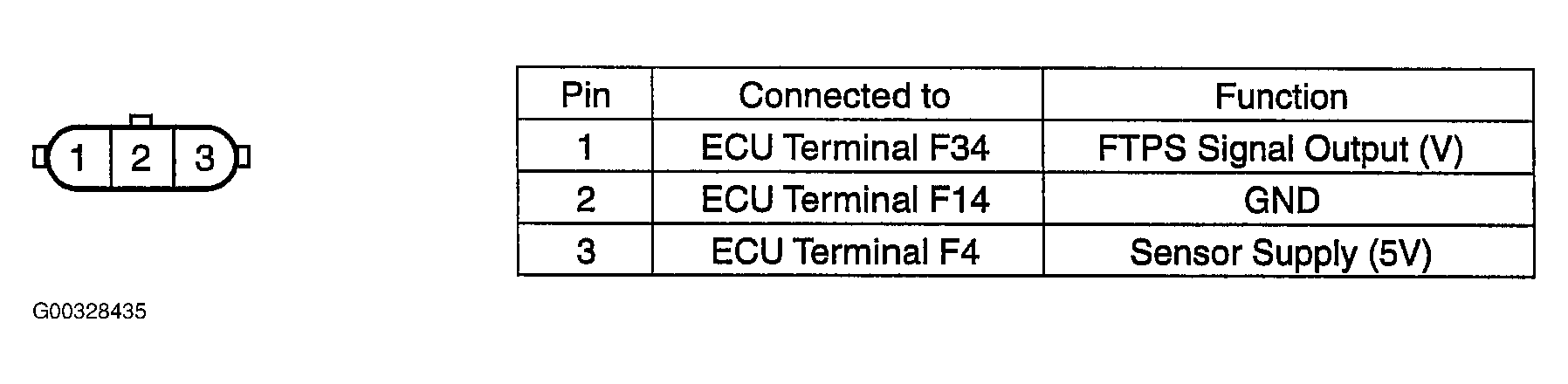

Fig 1: Fuel Tank Pressure Sensor (FTPS) Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
