Circuit Diagram (ISA)

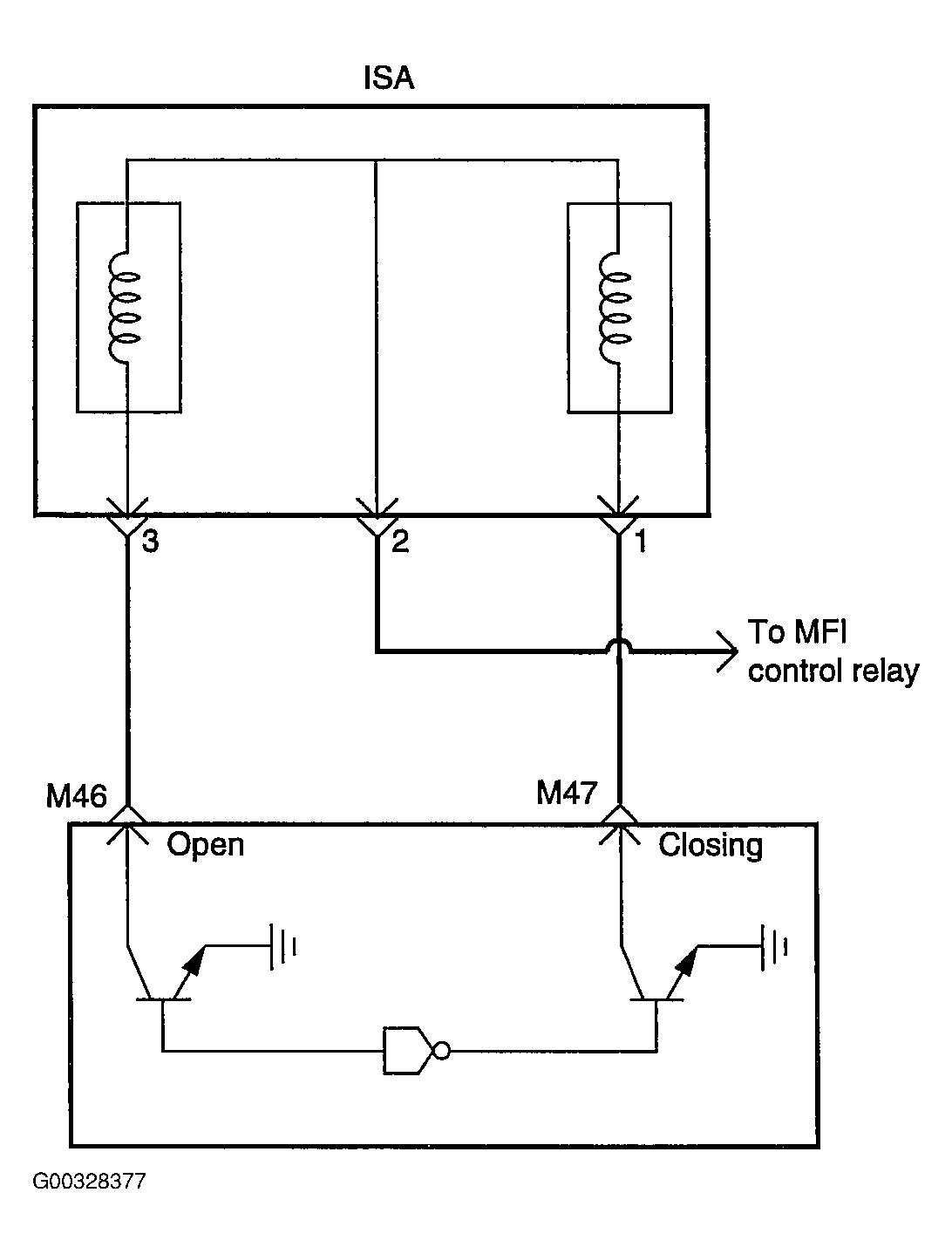

Fig 1: Idle Speed Control Actuator (ISA) Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
