Components

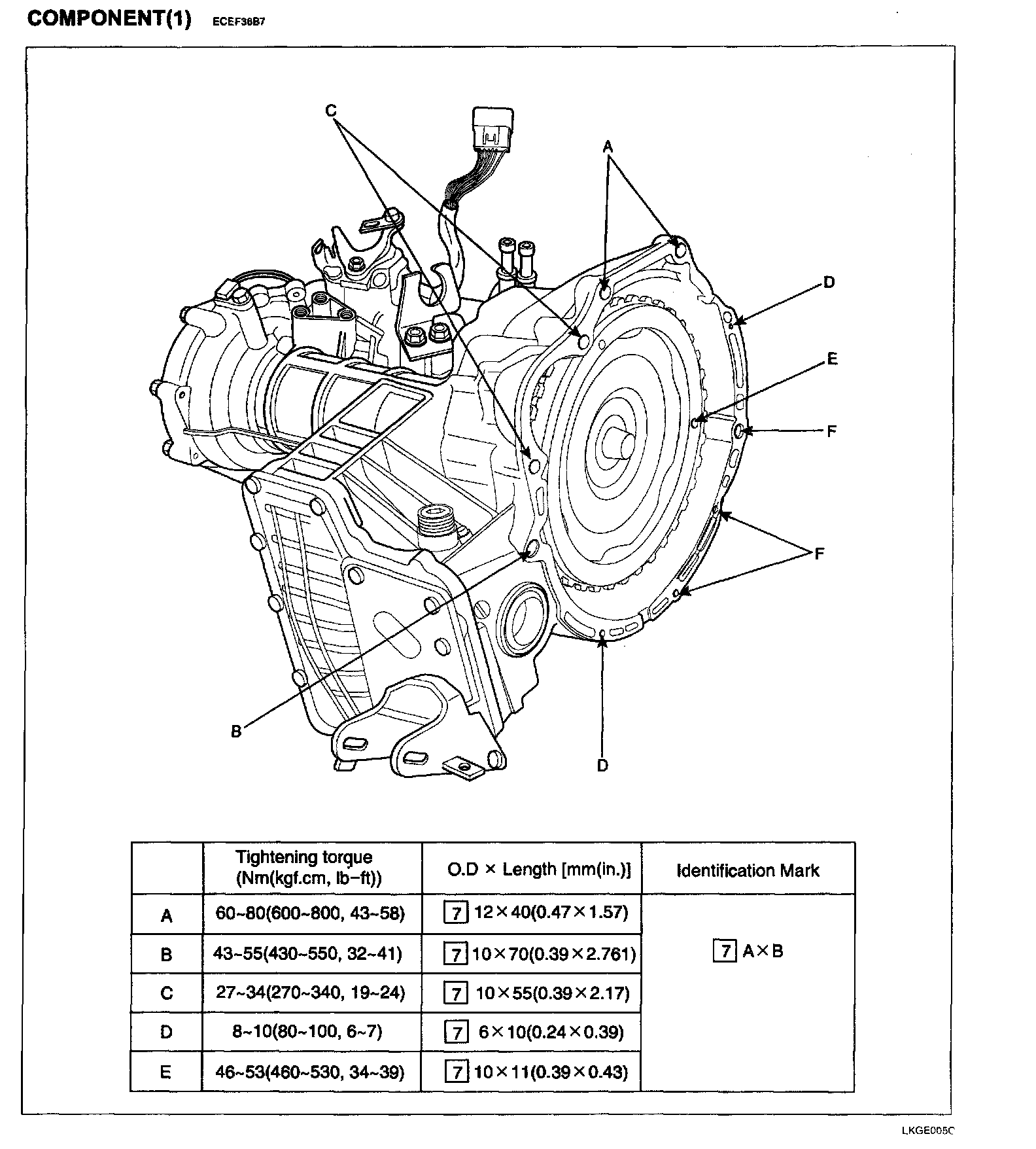

COMPONENT (1):

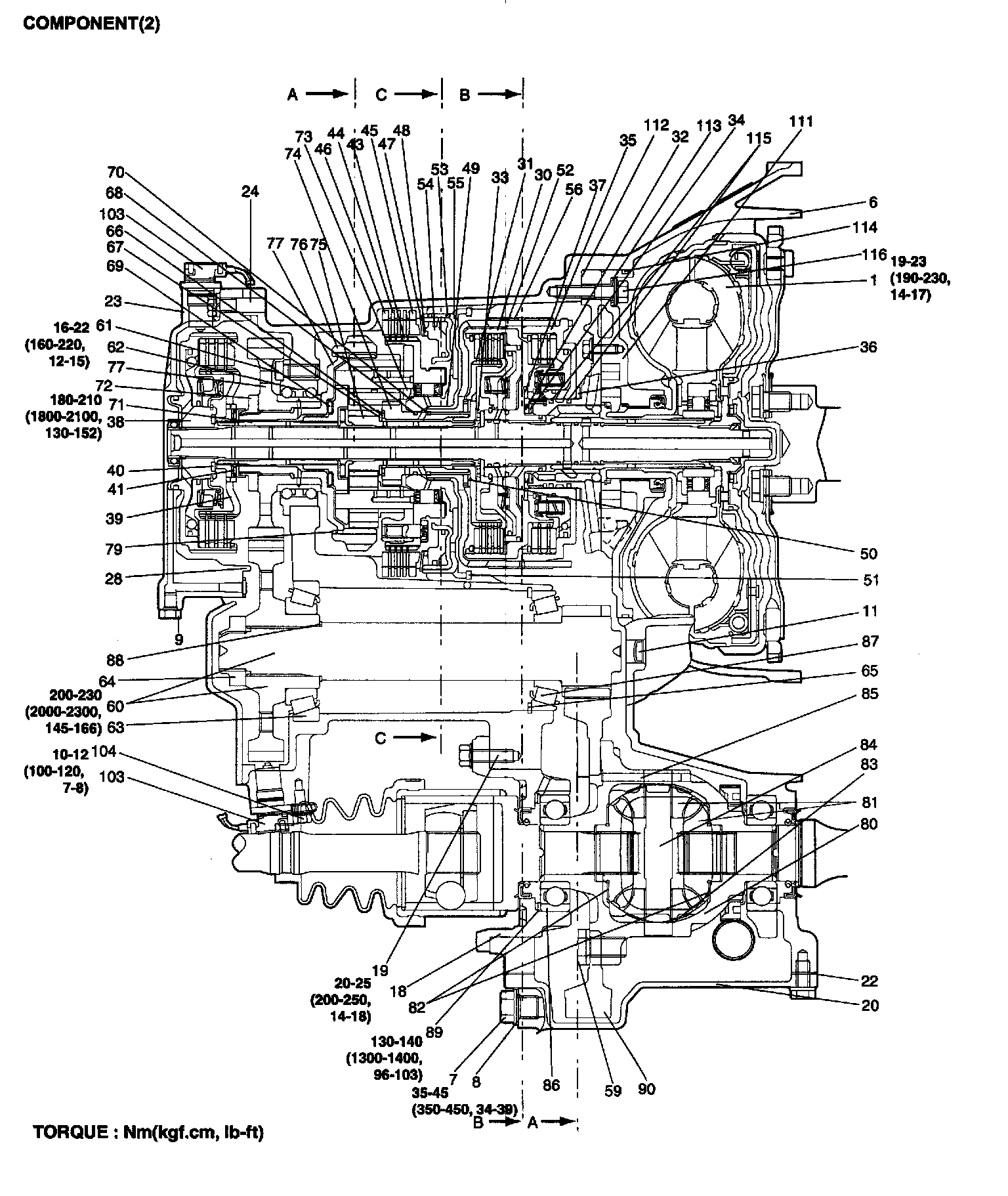

COMPONENT (2):

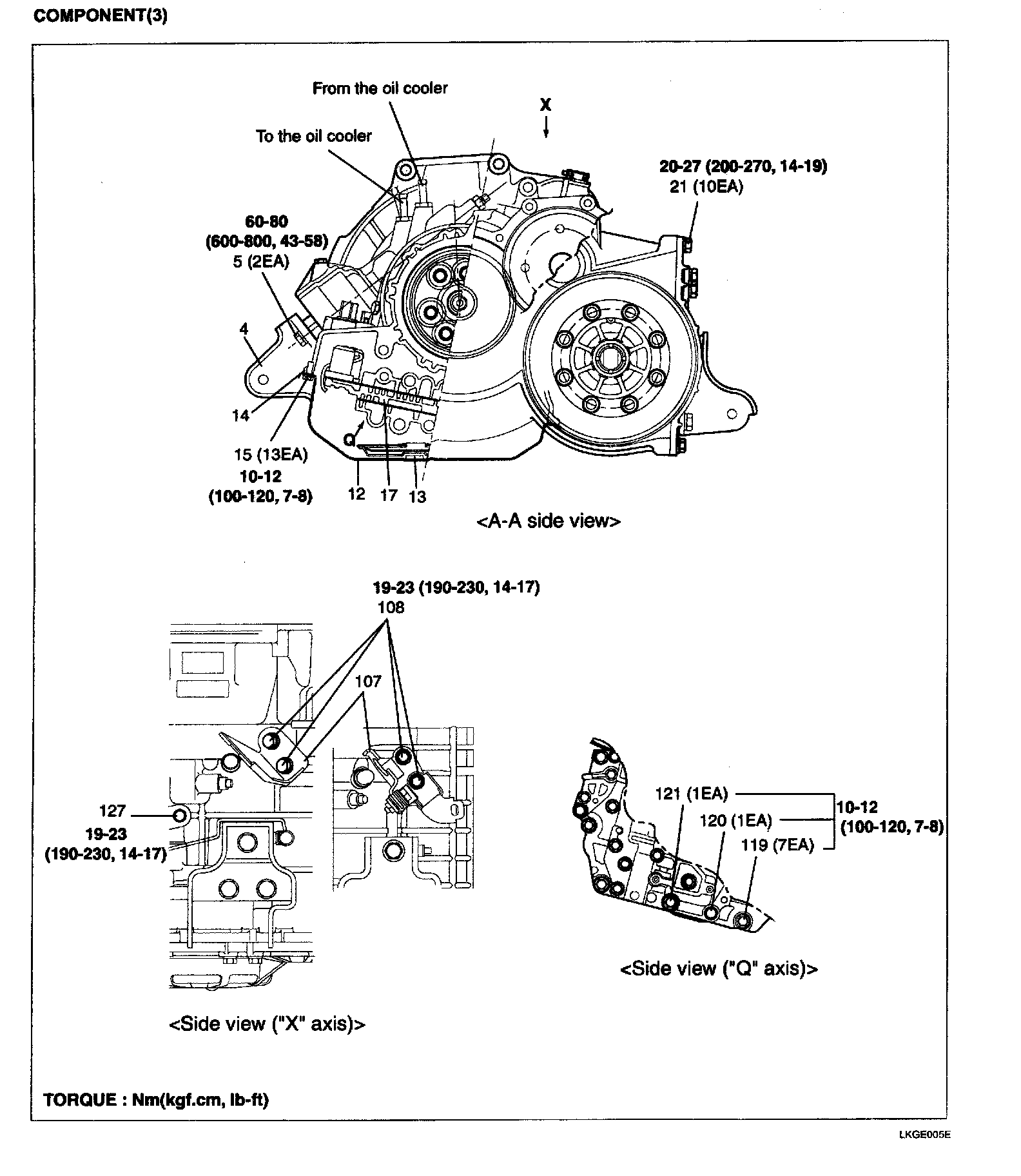

COMPONENT (3):

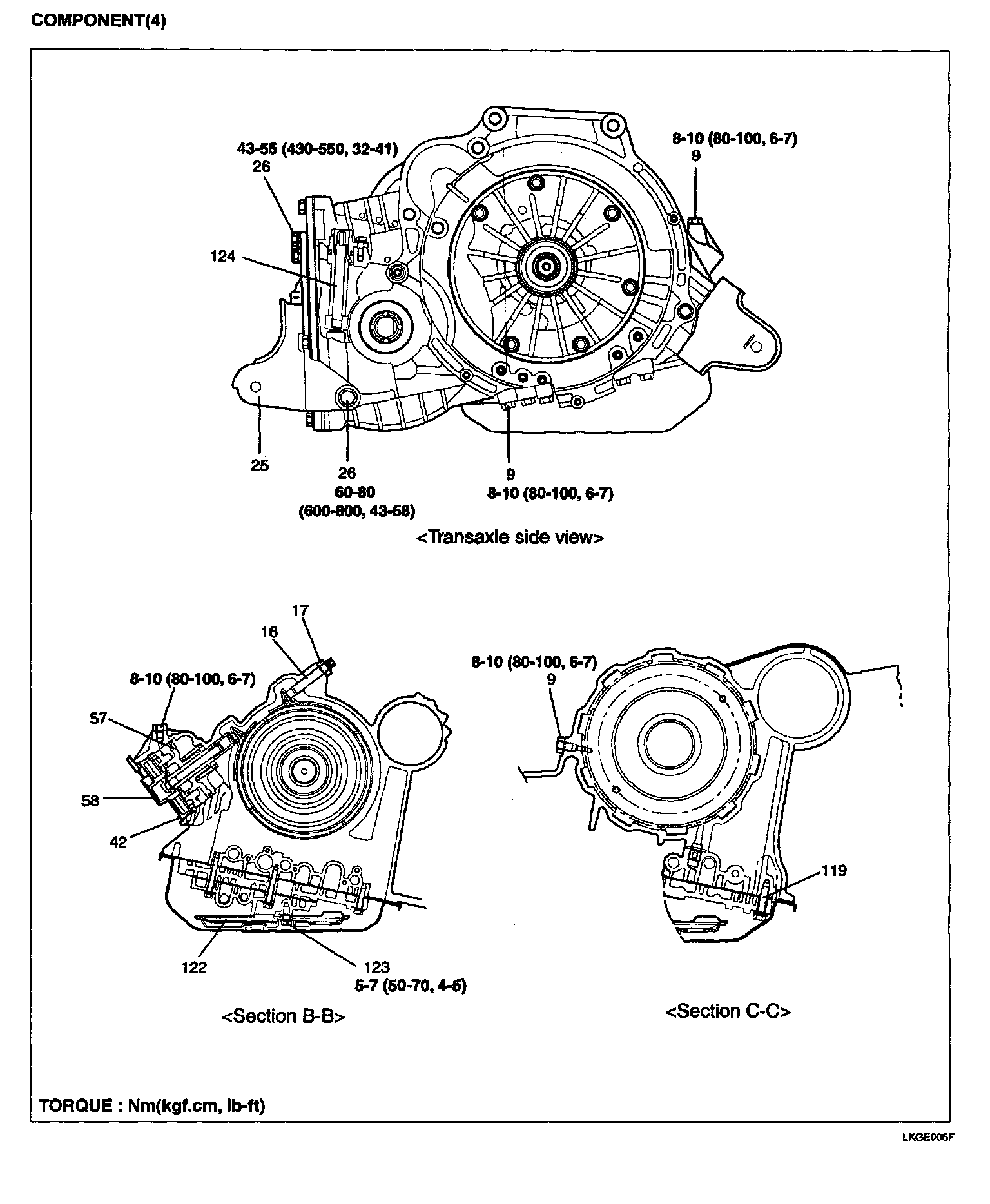

COMPONENT (4):

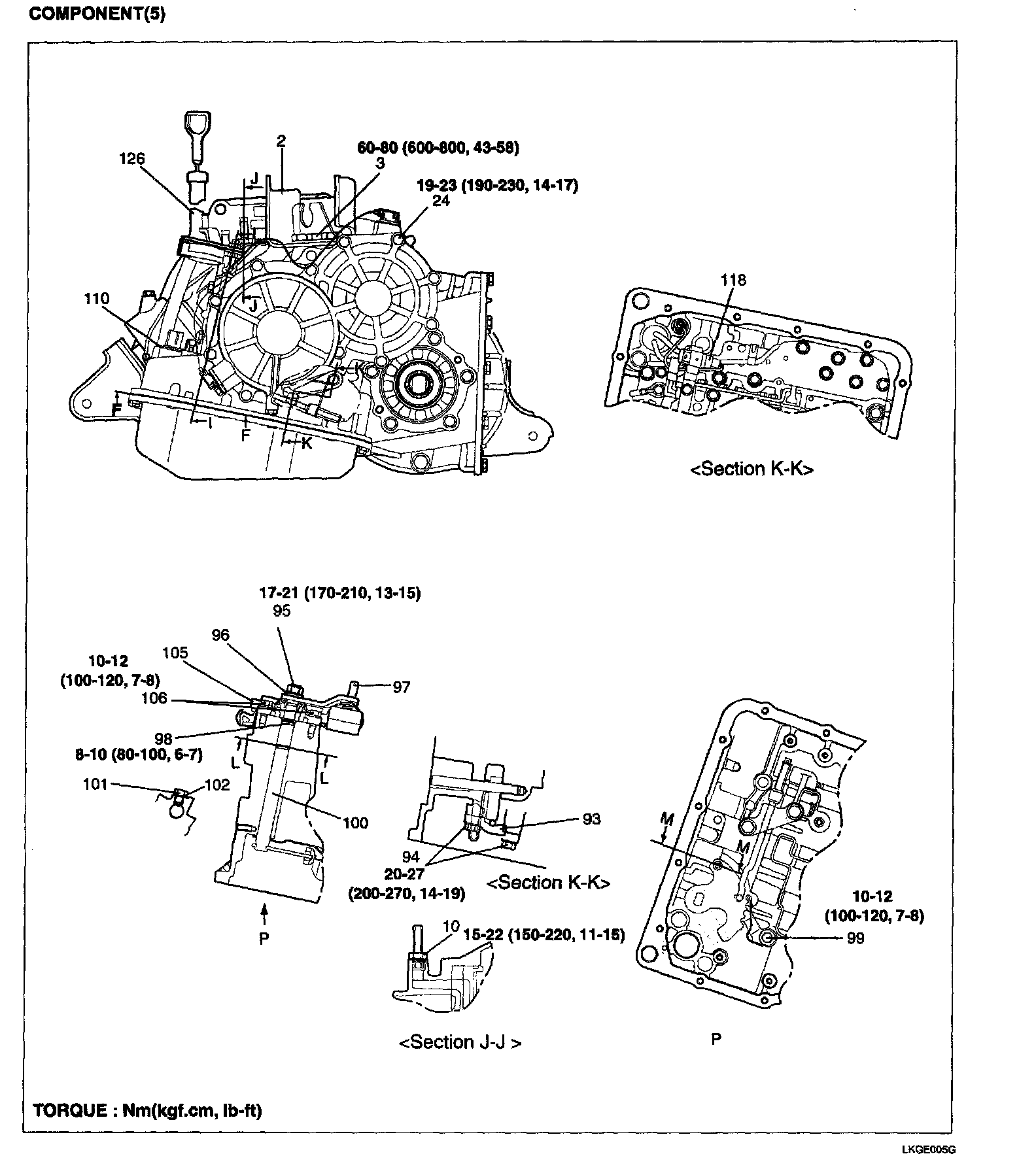

COMPONENT (5):

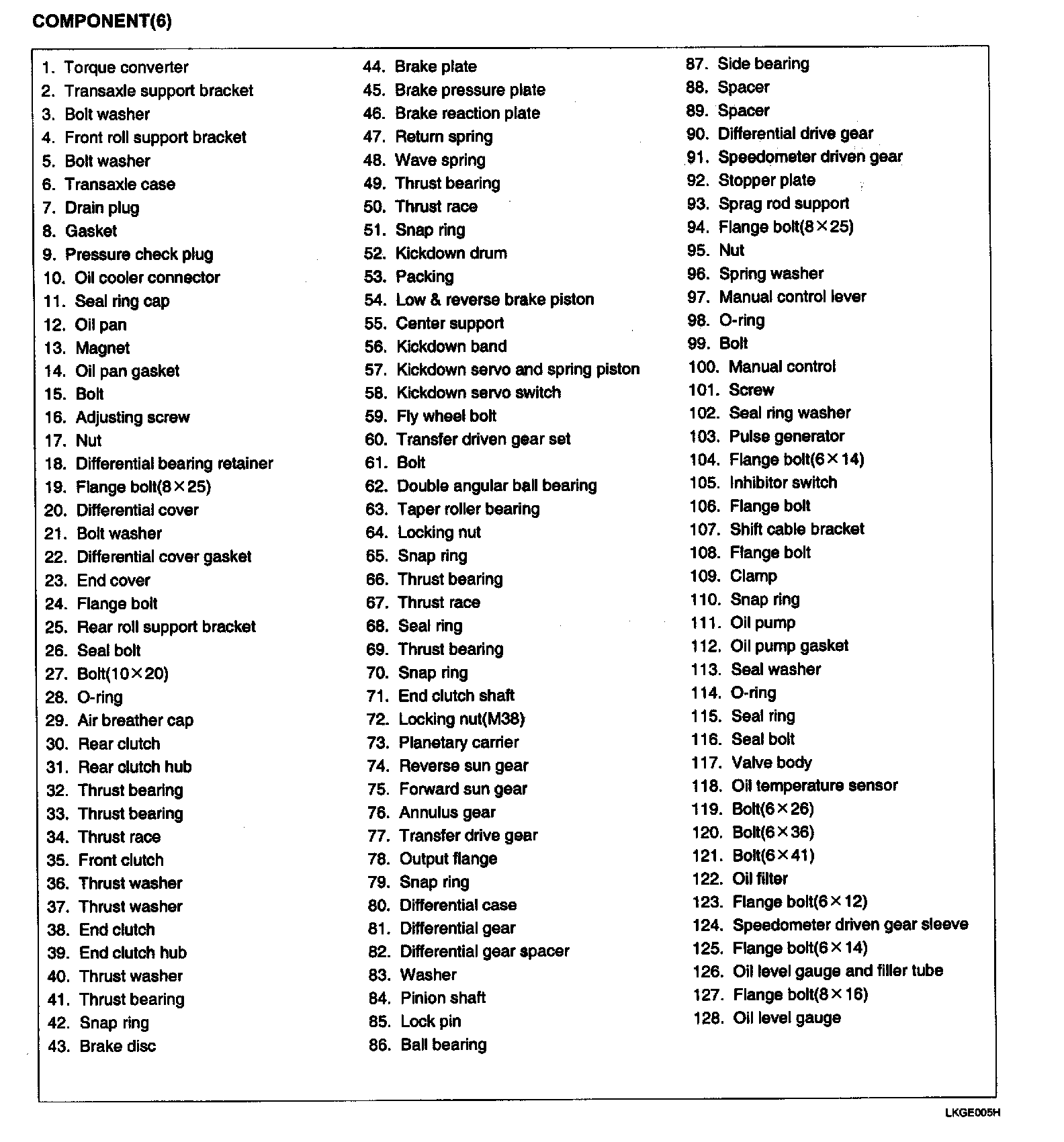

COMPONENT (6):
