MFI Troubleshooting Procedures

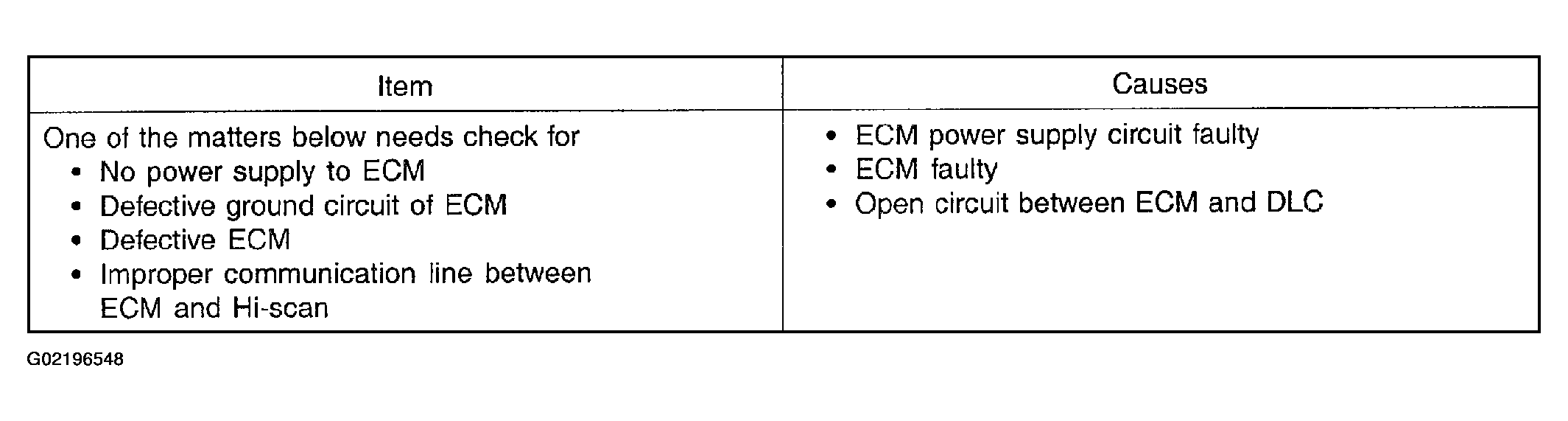

PROBLEM

Communication with Hi-scan is not available.

(Communication with all systems is not available)

Fig 1: MFI Troubleshooting Procedures (1 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: MFI Troubleshooting Procedures (2 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: MFI Troubleshooting Procedures (3 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: MFI Troubleshooting Procedures (4 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: MFI Troubleshooting Procedures (5 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: MFI Troubleshooting Procedures (6 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: MFI Troubleshooting Procedures (7 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.
