TCM Terminal Array

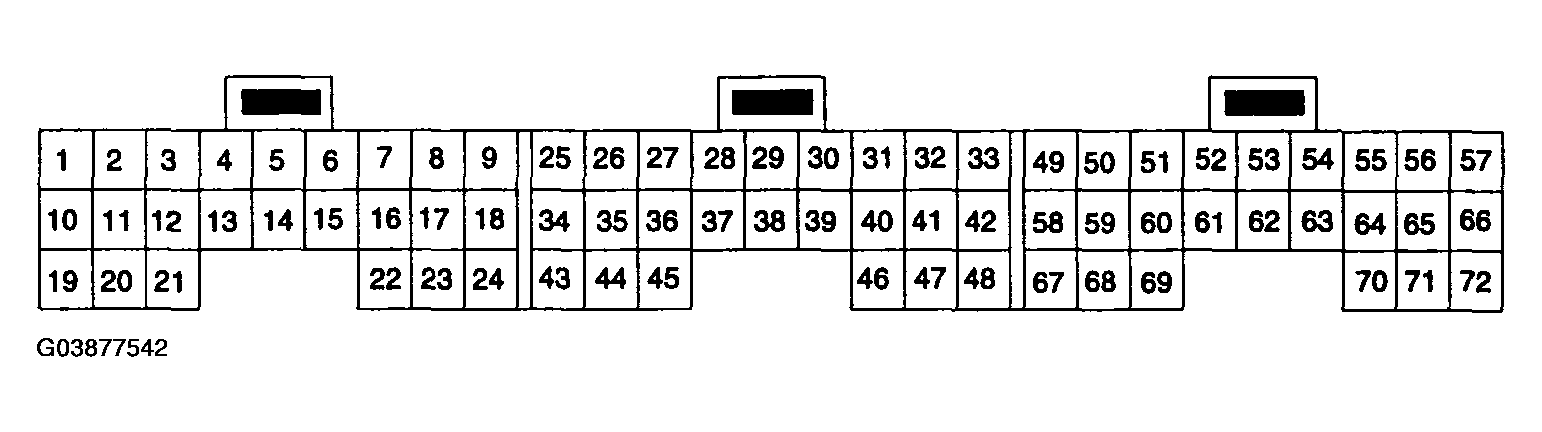

Fig 1: Identifying Connector Terminals TCM
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
